Toyota Heavy Duty Truck
1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General
Discontinued model
Data version 2002-06

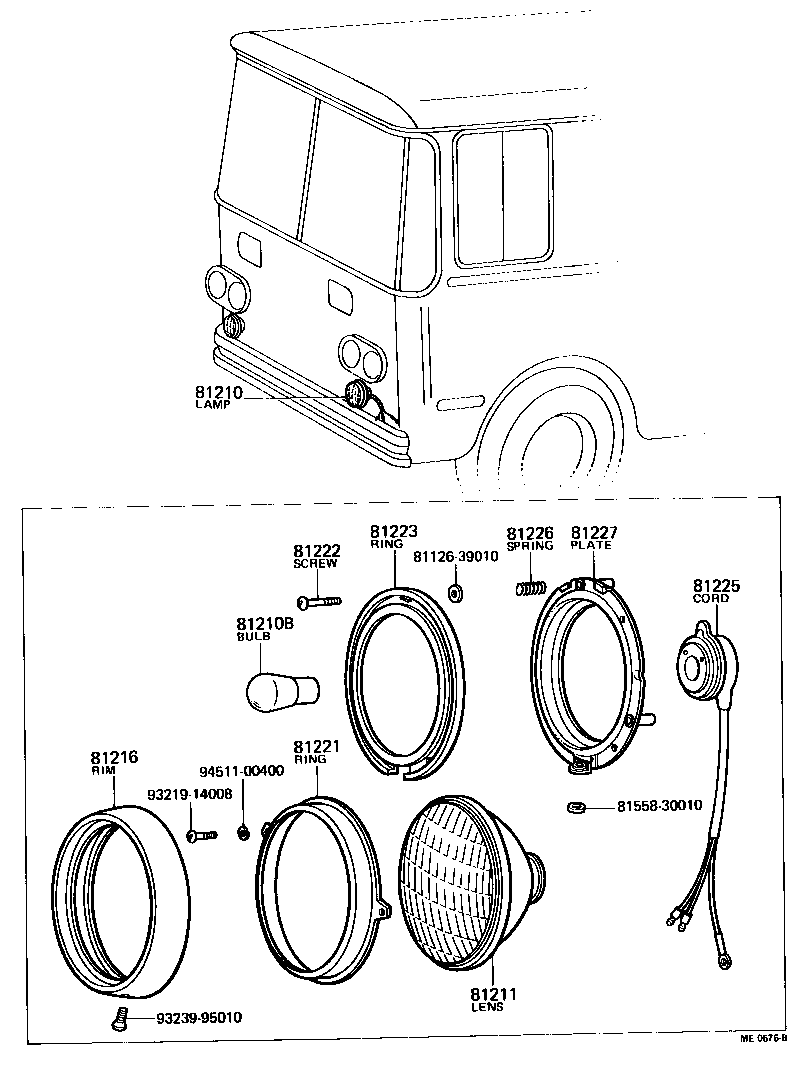

Fog Lamp
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81210 | Lamp Assy, Fog |
| 81210B | Bulb, Fog Lamp |
| 81211 | Lens, Fog Lamp |
| 81212 | Gasket, Fog Lamp Lens |
| 81213 | Spacer, Fog Lamp |
| 81214 | Stopper, Fog Lamp Mounting Bolt |
| 81215 | Bolt, Fog Lamp Mounting |
| 81216 | Rim, Fog Lamp, NO.1 |
| 81217 | Stopper, Fog Lamp Reflector |
| 81218 | Reflector, Fog Lamp |
| 81221 | Ring, Fog Lamp Retaining |
| 81222 | Screw, Adjusting |
| 81223 | Ring, Fog Lamp Sealed Beam Seating |
| 81225 | Cord, Fog Lamp |
| 81226 | Spring, Fog Lamp Adjusting |
| 81227 | Plate, Fog Lamp Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
