Toyota Heavy Duty Truck

1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back UP Lamp

9 part groups · 5 illustrations

Illustrations

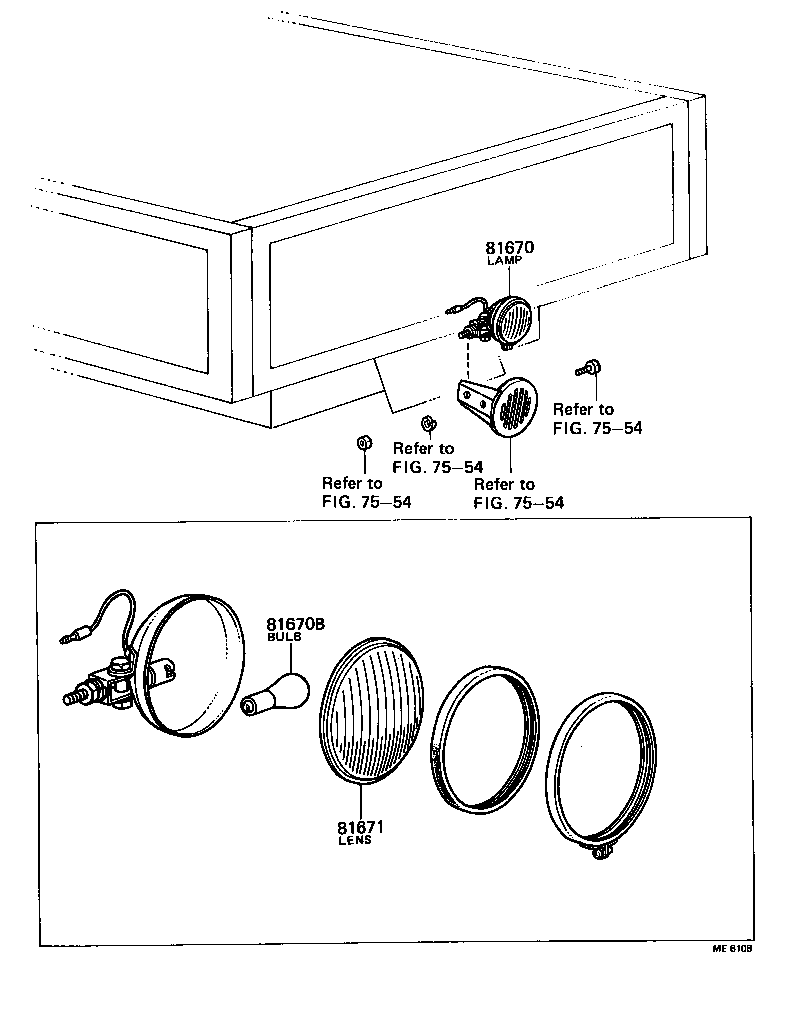

Figure ME0667H ME0667H 1969-03 → — Figure ME6108 ME6108 1969-03 → 1977-04 Figure ME6108 ME6108 1969-03 → 1978-09 Figure MEH924 MEH924 1977-04 → 1982-07 Figure MEH924 MEH924 1978-09 → —

Part groups

PNCDescription
81670 Lamp Assy, Back-up, RH
81670B Bulb(FOR BACK-UP LAMP)
81670E Stopper, Back-up Lamp Reflector
81671 Lens, Back-up Lamp, RH
81672 Gasket, Back-up Lamp Lens, RH
81676 Rim, Back-up Lamp, RH
81679 Bracket, Back UP Lamp Body
81967 Bracket, Back UP Lamp
81969 Bolt, Back UP Lamp Mounting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
