Toyota Heavy Duty Truck

1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

7 part groups · 3 illustrations

Illustrations

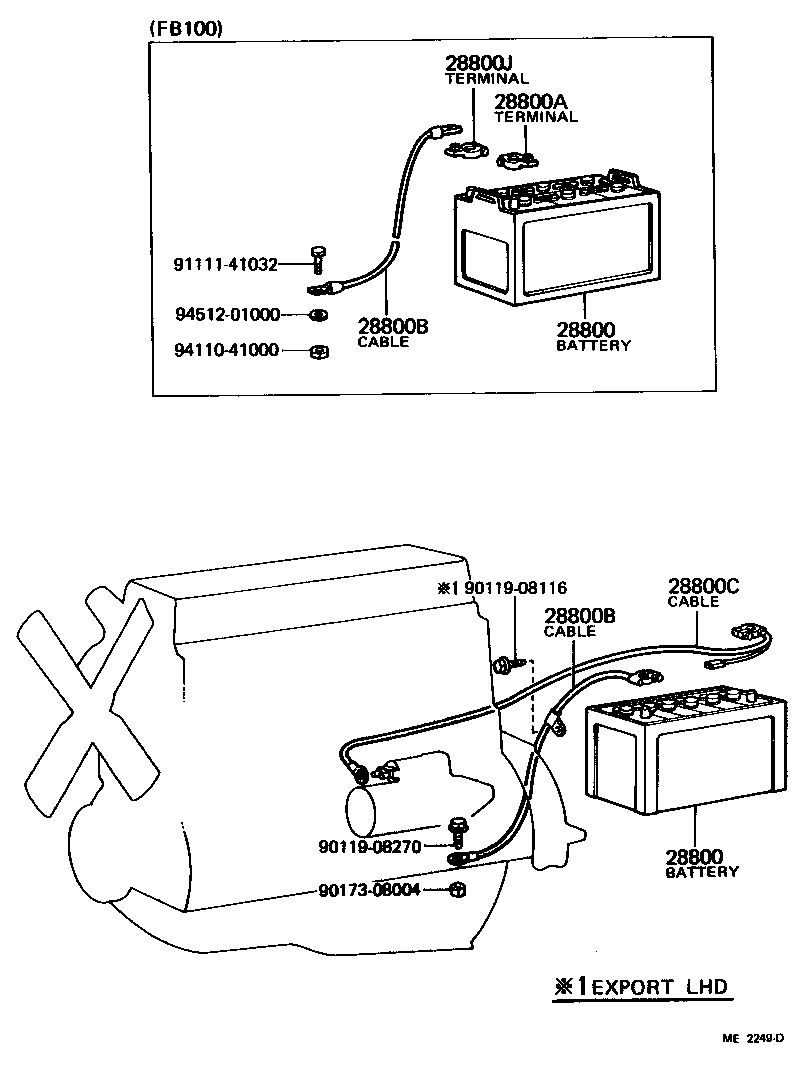

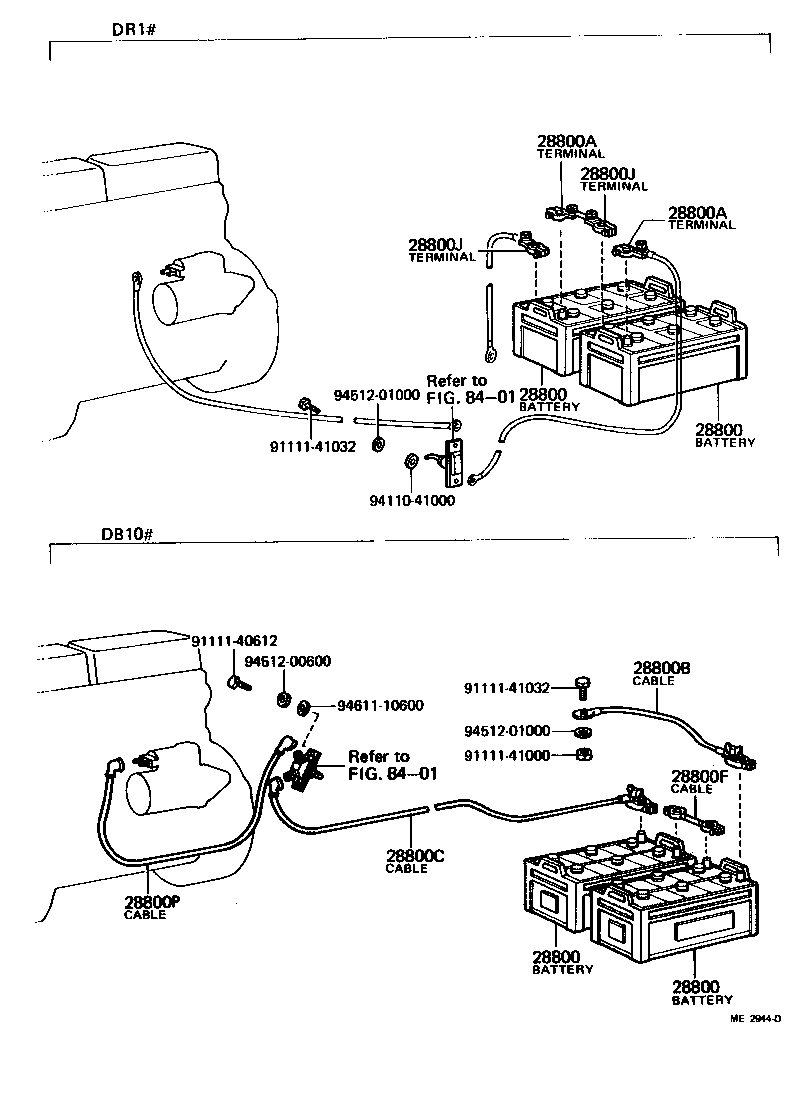

Figure ME2941F ME2941F 1969-03 → — Figure ME2944D ME2944D 1969-03 → — Figure ME2249D ME2249D 1969-03 → 1982-07

Part groups

PNCDescription
28800 Battery
28800A Terminal, Battery Positive
28800B Cable, Battery TO Ground
28800C Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
28800F Cable, Battery TO Battery
28800J Terminal, Battery Negative
28800P Cable, Battery TO Starter(FOR MAIN SWITCH TO STARTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
