Toyota Heavy Duty Truck

1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

23 part groups · 7 illustrations

Illustrations

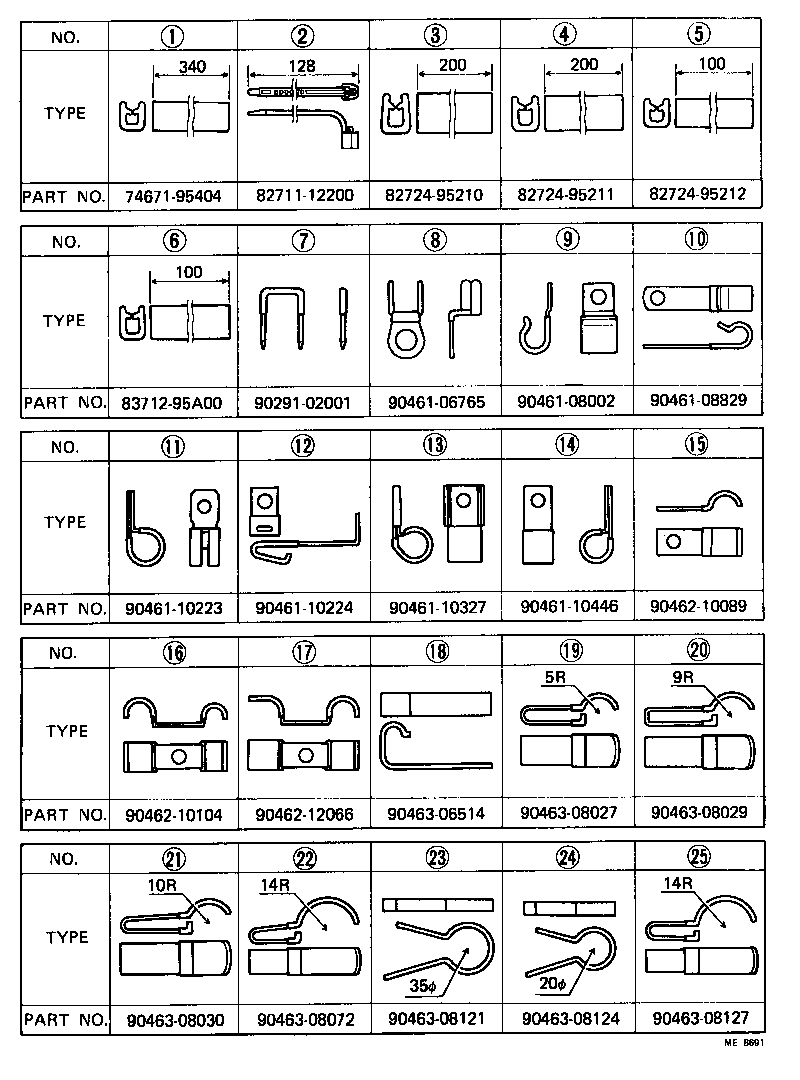

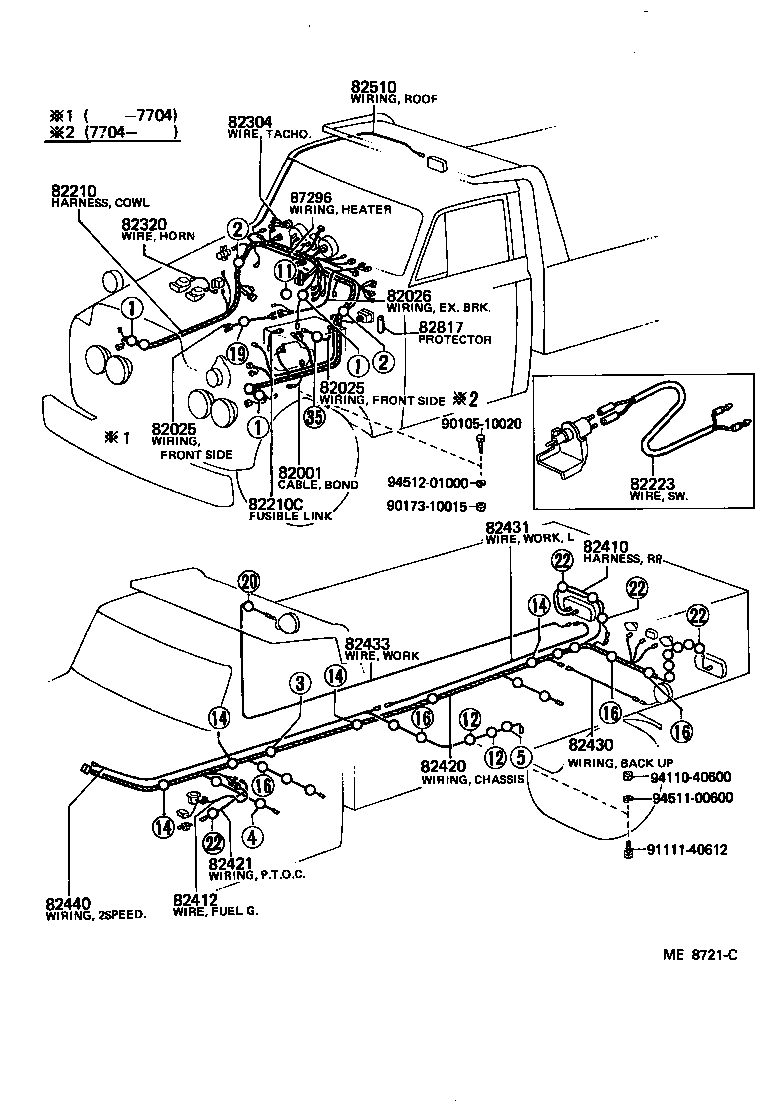

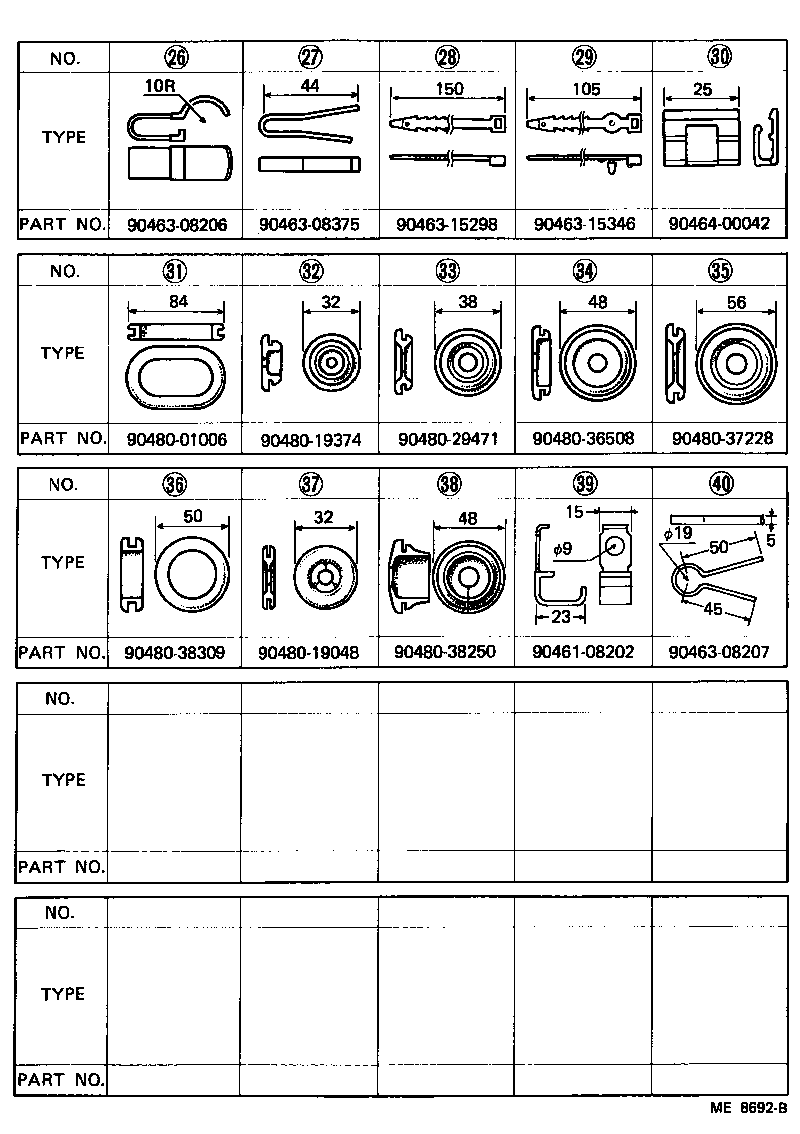

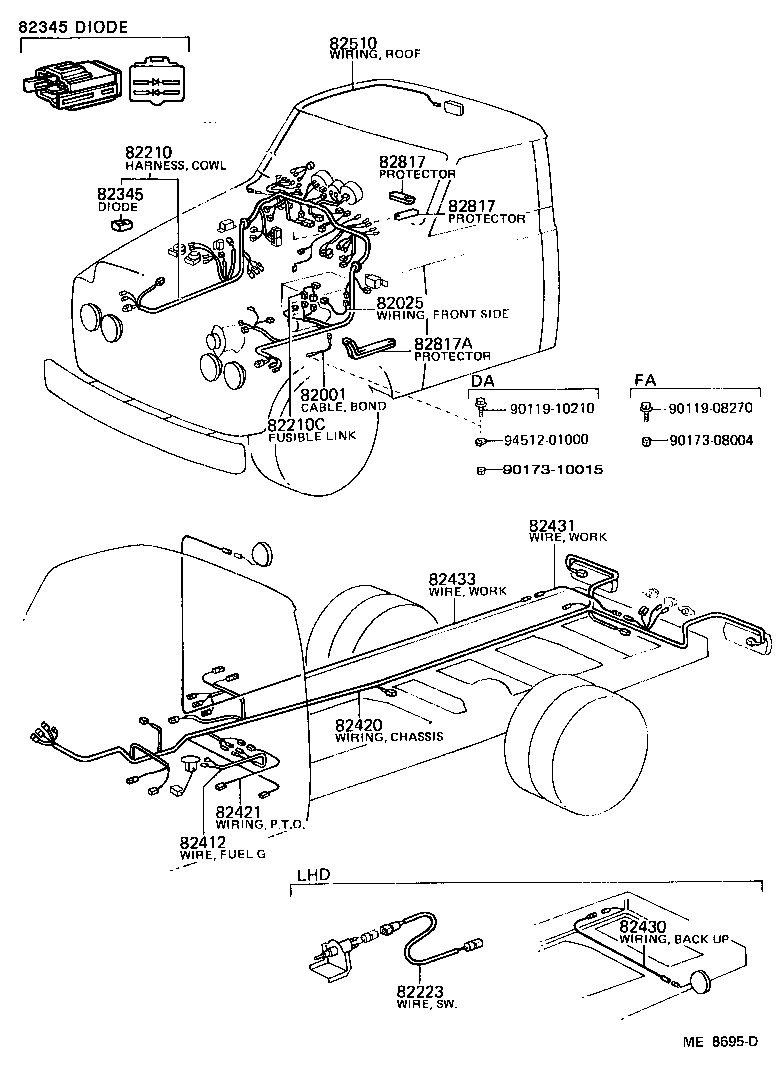

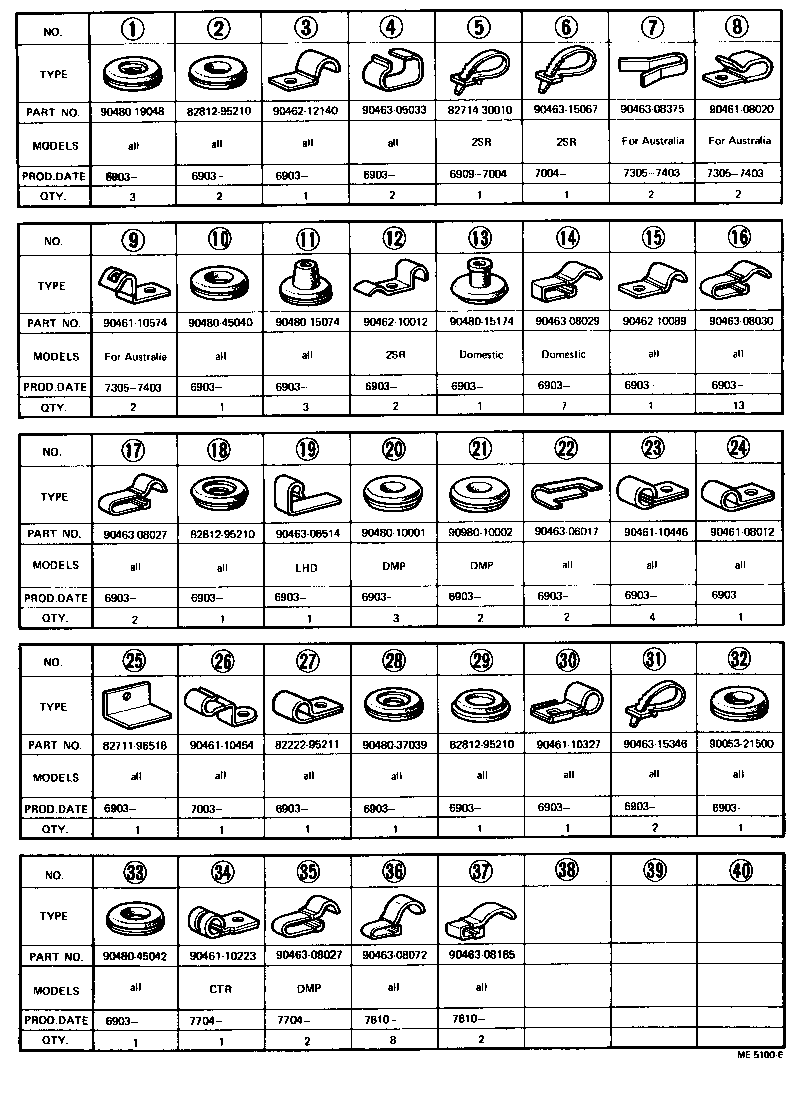

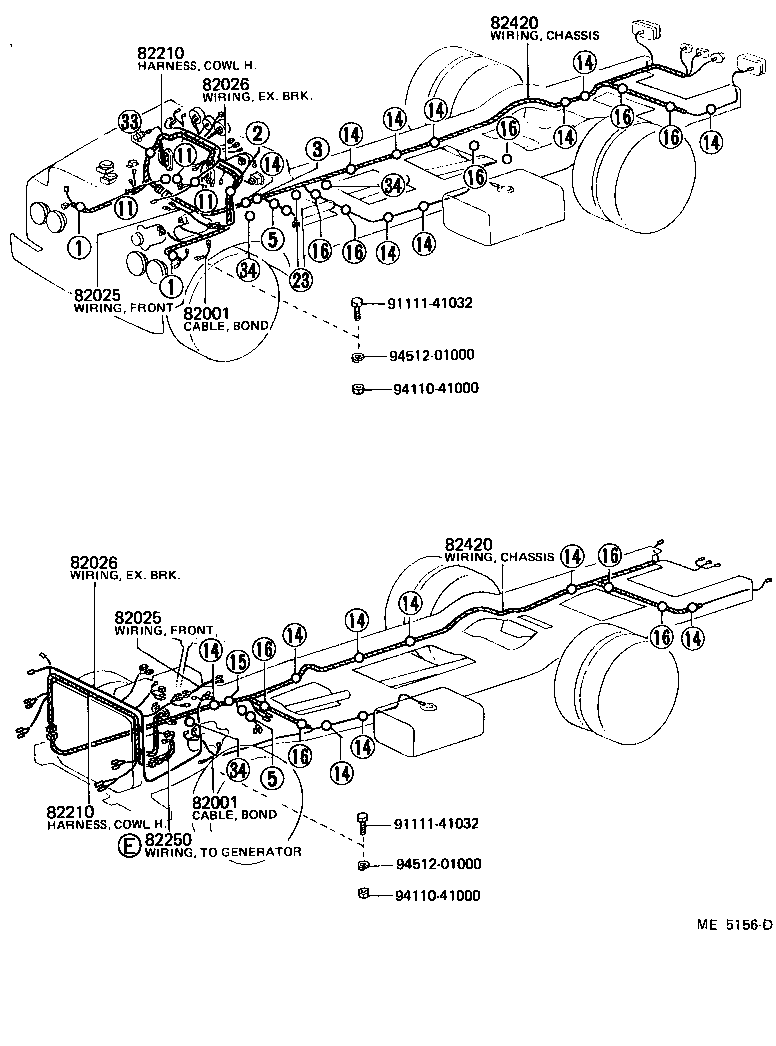

Figure ME8720B ME8720B 1969-03 → 1980-02 Figure ME8721C ME8721C 1969-03 → 1980-02 Figure ME5156D ME5156D 1969-03 → 1977-03 Figure ME5100E ME5100E 1969-03 → 1980-02 Figure ME8695D ME8695D 1980-02 → — Figure ME8691 ME8691 1980-02 → — Figure ME8692B ME8692B 1980-02 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82025 Wiring Sub-assy, Front Side
82026 Wiring Sub-assy Exhaust Brake
82210 Harness Assy, Wiring Cowl TO Headlamp, NO.1
82210C Fusible Link
82223 Wire, Switch
82250 Wiring Assy, TO Generator
82304 Wire Sub-assy, TO Tachograph
82320 Wire Assy, TO Horn
82345 Diode
82410 Harness Assy, Wiring TO Rear Lamp
82412 Wire, Fuel Gage
82420 Wiring Assy, Chassis
82421 Wiring, Power Take-off Lever Position Warning
82430 Wiring Assy, Back-up Lamp Feed
82431 Wire, Work Lamp Feed, NO.1
82433 Wire, Work Lamp Feed, NO.2
82434 Wire, Clearance Lamp
82440 Wiring Assy, 2 Speed Indicator Switch
82510 Wiring Assy, Roof
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
87296 Wiring, Heater, NO.2 (FOR SWITCH TO HEATER)
