Toyota Heavy Duty Truck

1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

41 part groups · 5 illustrations

Illustrations

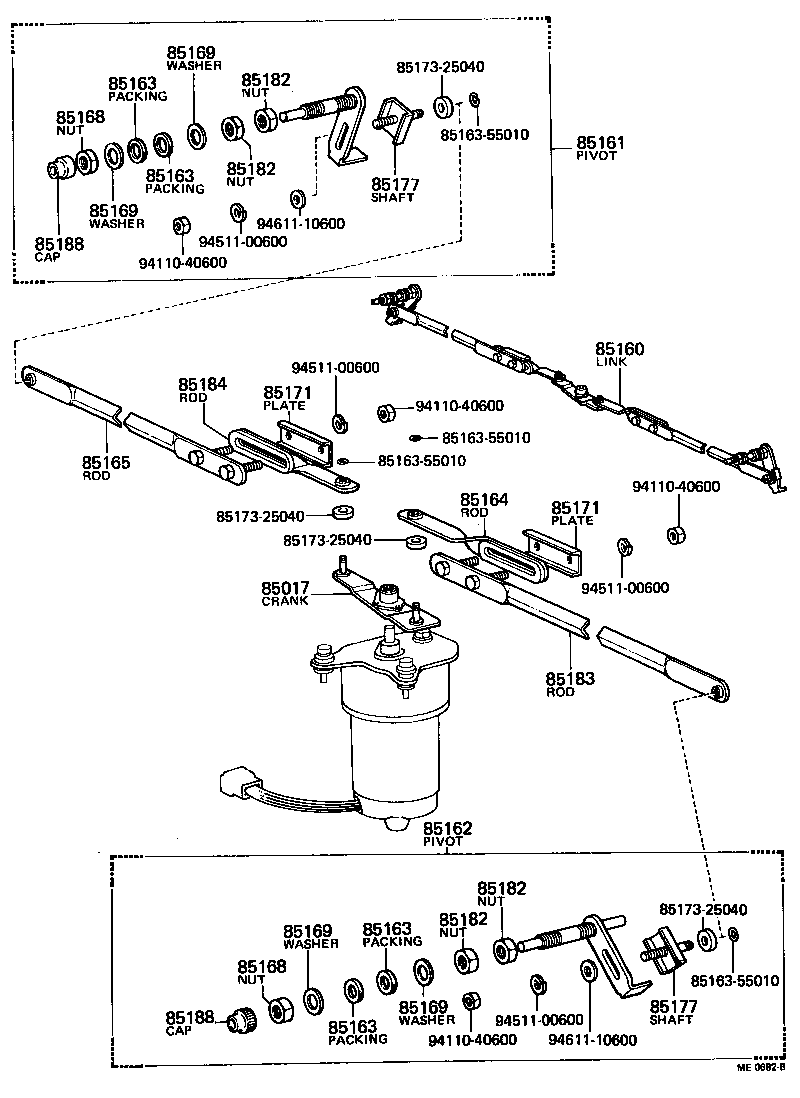

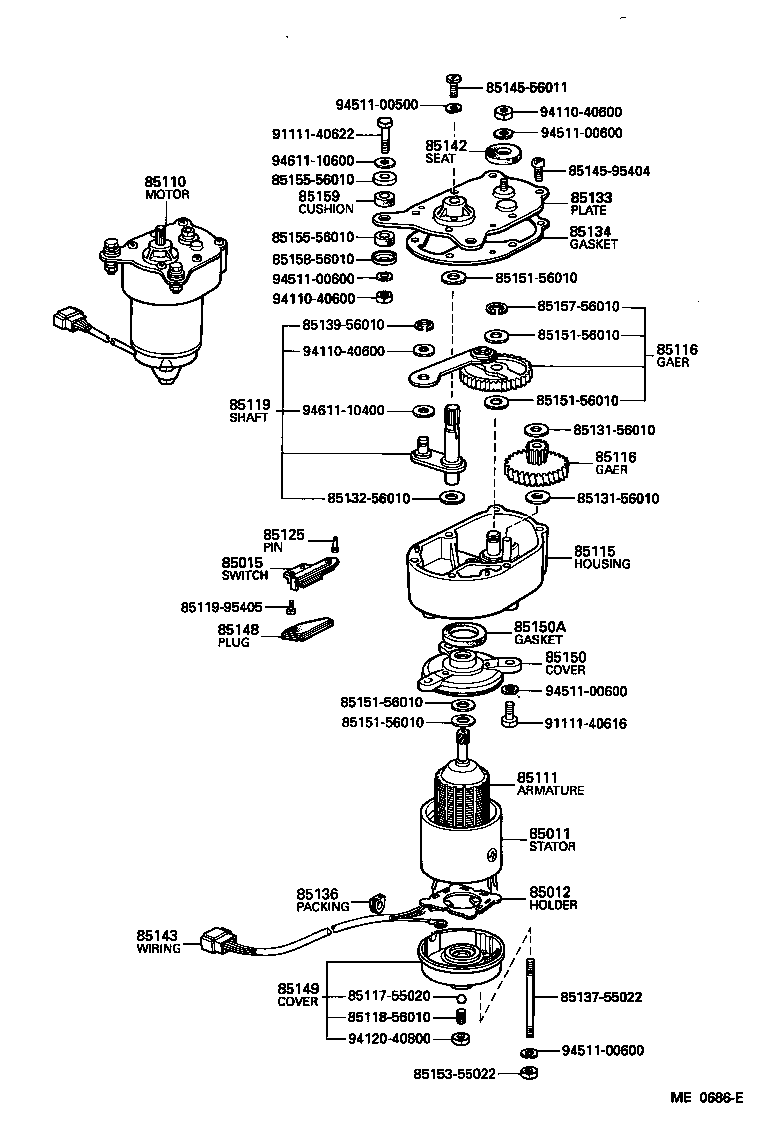

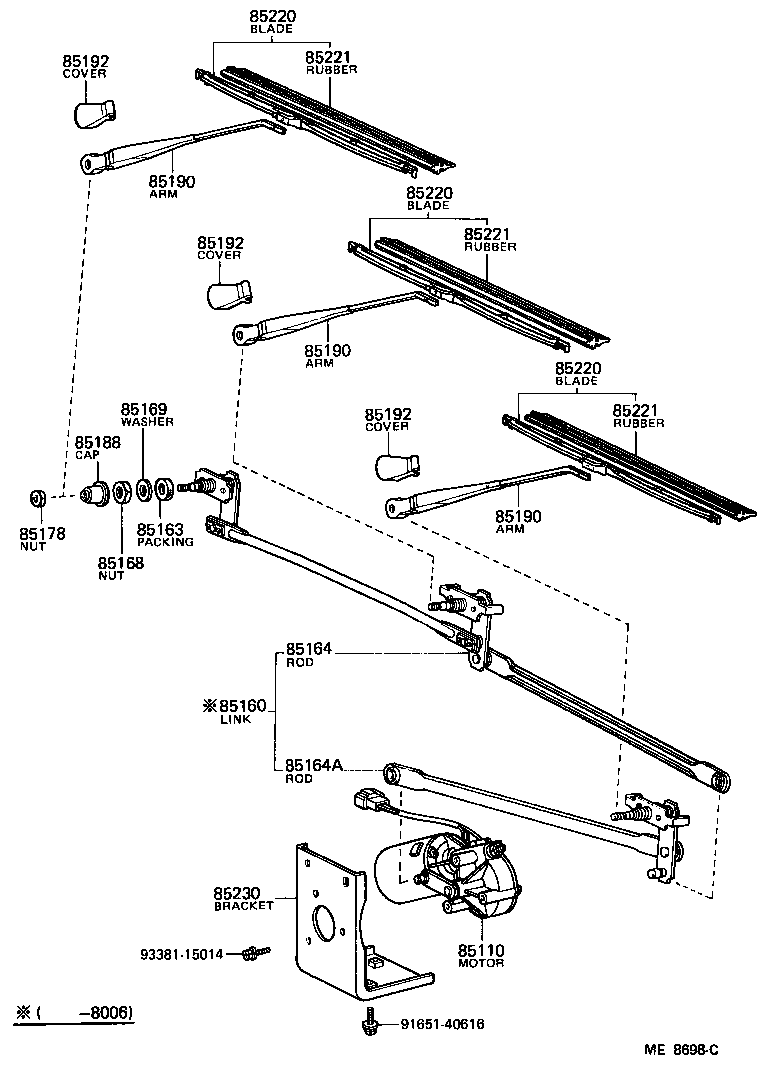

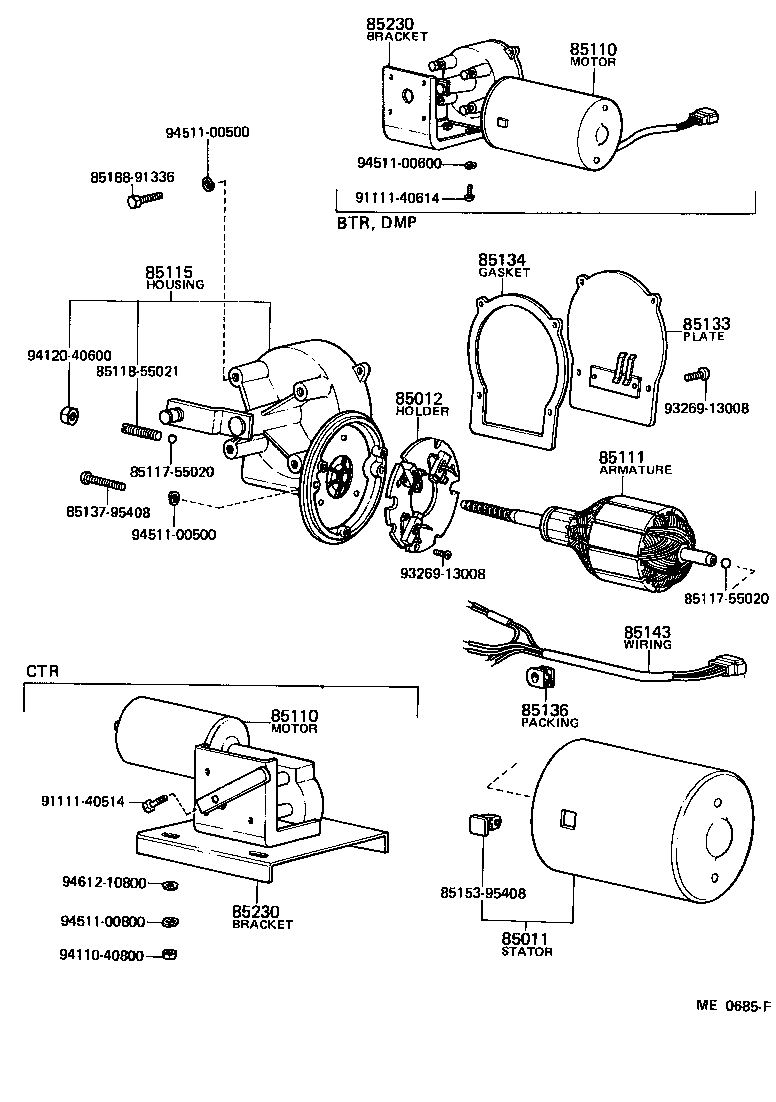

Figure ME0681B ME0681B 1969-03 → 1980-02 Figure ME8698C ME8698C 1980-02 → — Figure ME0685F ME0685F 1969-03 → 1980-02 Figure ME0682B ME0682B 1969-03 → 1974-03 Figure ME0686E ME0686E 1969-03 → 1974-03

Part groups

PNCDescription
85011 Stator Sub-assy, Windshield Wiper Motor
85012 Holder Sub-assy, Windshield Wiper Motor Brush
85015 Switch Sub-assy, Windshield Wiper Motor
85017 Crank Sub-assy, Windshield Wiper Link
85110 Motor Assy, Windshield Wiper
85111 Armature, Windshield Wiper Motor
85115 Housing, Windshield Wiper Motor Gear
85116 Gear, Windshield Wiper Motor
85119 Crank, Windshield Wiper Motor
85125 Pin, Windshield Wiper Motor Auto Stop Switch
85133 Plate, Windshield Wiper Motor Gear Housing Cover
85134 Gasket, Windshield Wiper Motor Gear Housing Cover
85136 Packing, Windshield Wiper Motor Wire
85142 Seat, Windshield Wiper Motor Rubber
85143 Wiring, Windshield Wiper Motor Lead
85148 Plug, Windshield Wiper Motor Gear Case Hole
85149 Cover Sub-assy, Windshield Wiper Motor Brush
85150 Cover, Windshield Wiper Motor Gear End
85150A Gasket, Windshield Wiper Motor Gear End Cover
85159 Cushion, Windshield Wiper Motor
85160 Link Assy, Windshield Wiper
85161 Pivot, Windshield Wiper Link, NO.1
85162 Pivot, Windshield Wiper Link, NO.2
85163 Packing, Windshield Wiper Pivot
85164 Rod, Windshield Wiper Link, NO.1
85164A Rod, Windshield Wiper Link, NO.2
85165 Rod, Windshield Wiper Link W/Crank
85168 Nut, Windshield Wiper Link Pivot
85169 Washer, Windshield Wiper Link Pivot, NO.1
85171 Plate, Windshield Wiper Link
85177 Shaft, Windshield Wiper Link
85178 Nut (FOR FRONT WIPER ARM SETTING)
85182 Nut, Windshield Wiper Link Pivot, B
85183 Cap OR Rod, Windshield Wiper Shield
85184 Cap OR Rod, Windshield Wiper Shield
85188 Cap, Windshield Wiper Pivot, NO.1
85190 Arm Assy, Windshield Wiper
85192 Cover, Windshield Wiper Arm
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
85230 Bracket Assy, Windshield Wiper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
