Toyota Heavy Duty Truck
1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General
Discontinued model
Data version 2002-06

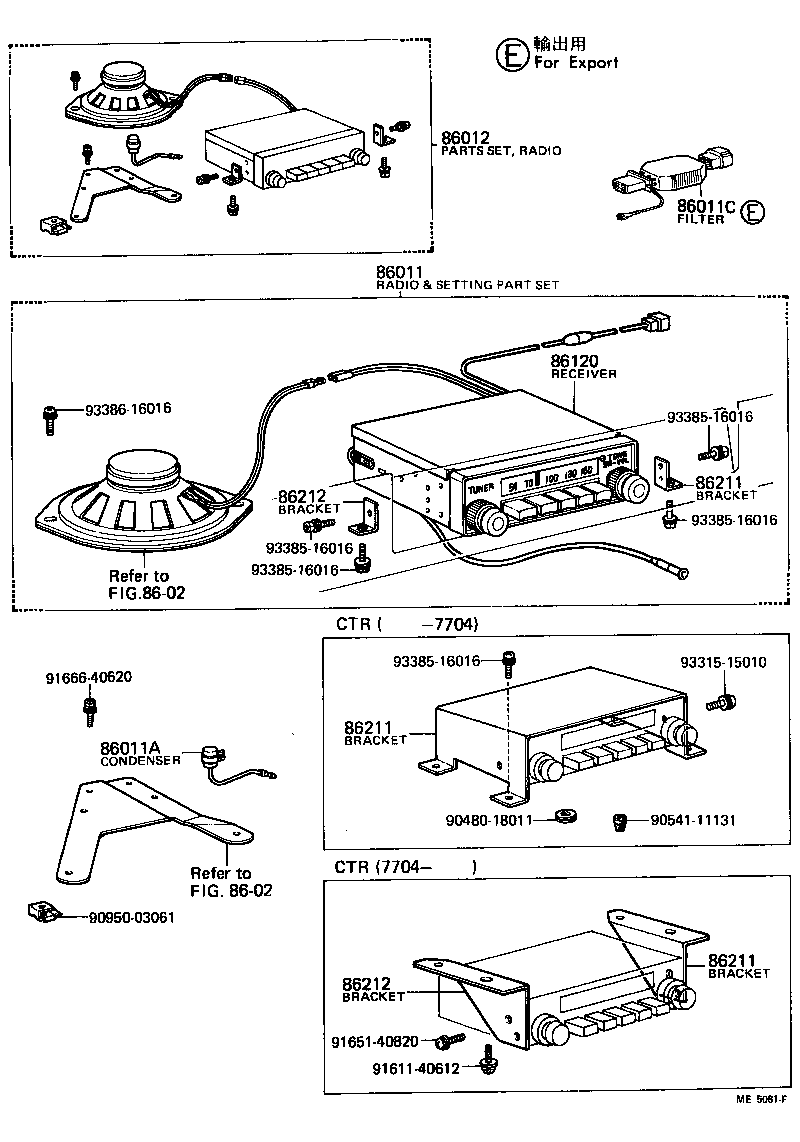

Radio Receiver & Amplifier & Condenser
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011 | Radio & Setting Parts Set |
| 86011A | Condenser, Radio Setting |
| 86011C | Filter, Noise |
| 86012 | Parts Set, Radio Setting |
| 86120 | Receiver Assy, Radio |
| 86203 | Wire, Radio |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
