Toyota Heavy Duty Truck
1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General
Discontinued model
Data version 2002-06

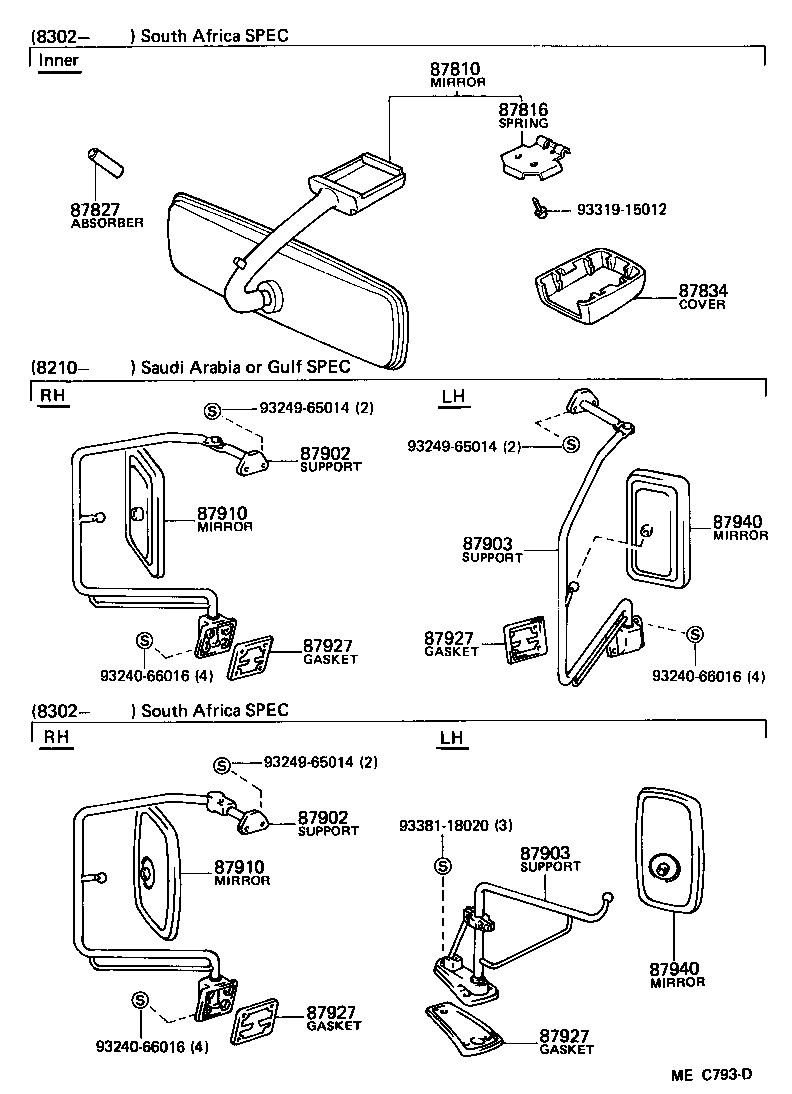

Mirror
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87816 | Spring, Inner Rear View Mirror |
| 87827 | Absorber, Inner Rear View Mirror |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87902 | Support, Rear View Outside Mirror, RH |
| 87903 | Support, Rear View Outside Mirror, LH |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87925 | Base, Rear View Outside Mirror Support, RH |
| 87926 | Base, Rear View Outside Mirror Support, LH |
| 87927 | Packing, Rear View Outside Mirror Stay |
| 87940 | Mirror Assy, Outer Rear View, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
