Toyota Heavy Duty Truck

1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

18 part groups · 3 illustrations

Illustrations

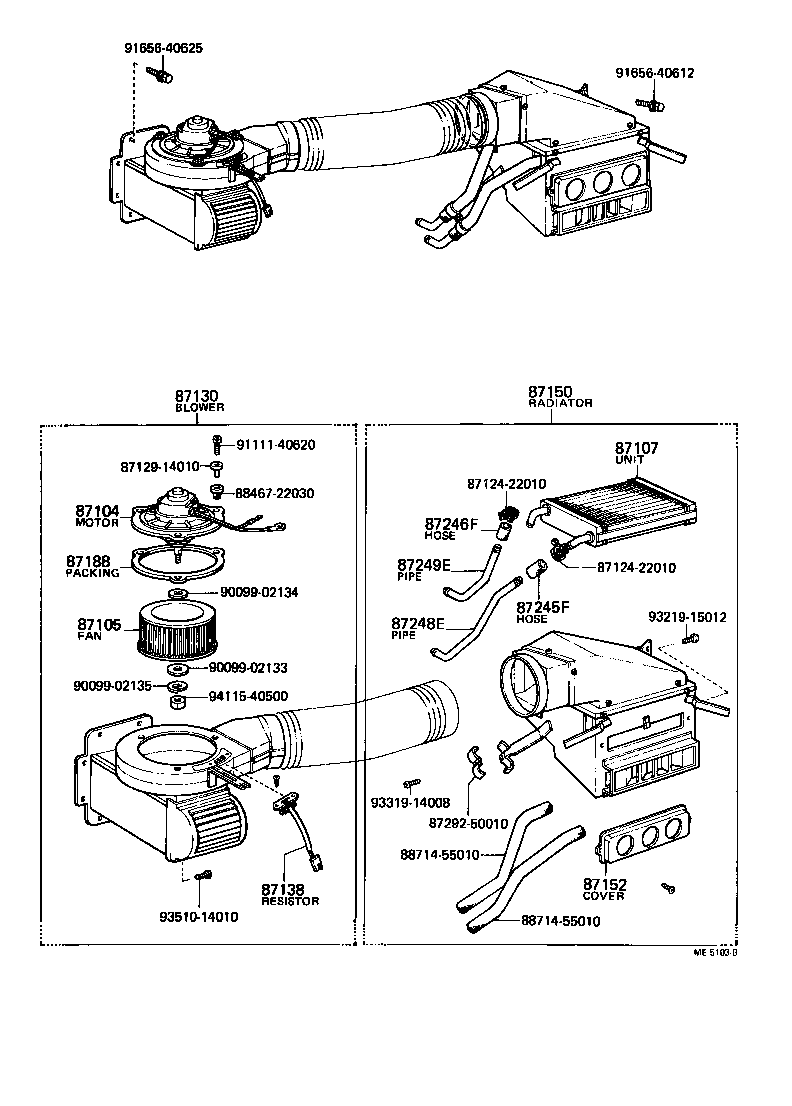

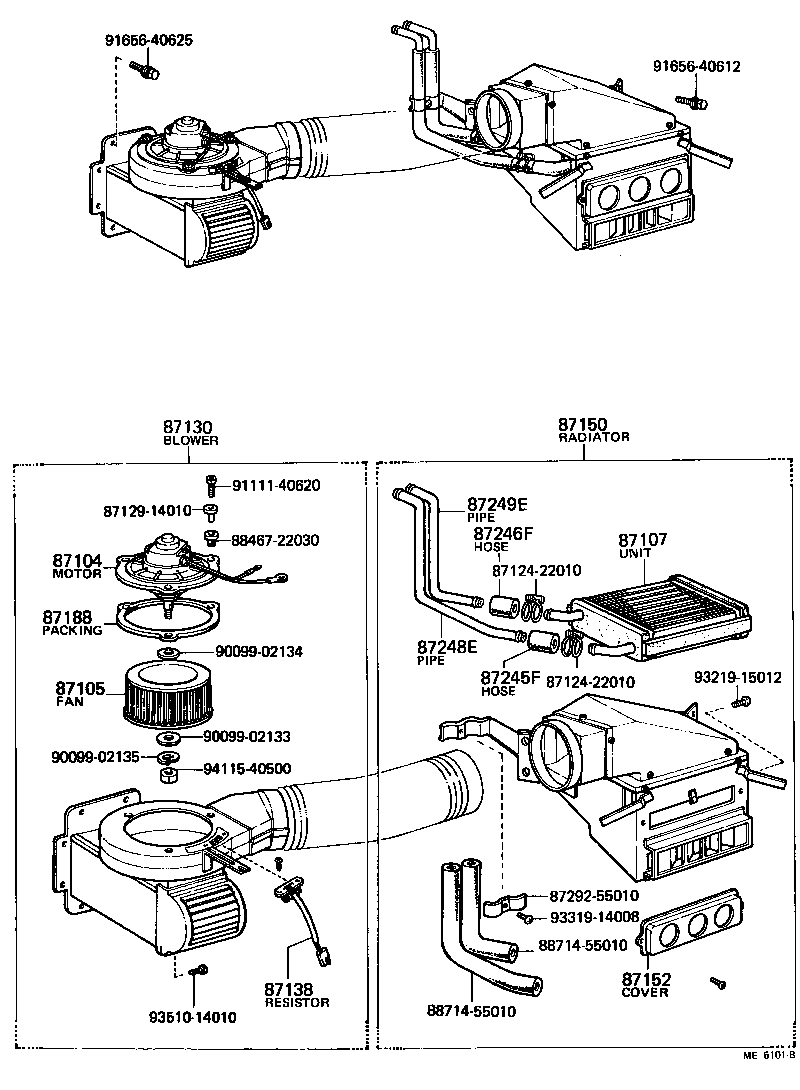

Figure ME5104A ME5104A 1969-03 → 1974-03 Figure ME5103B ME5103B 1974-04 → 1977-04 Figure ME6101B ME6101B 1977-04 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87105B Pipe Varnish, Heater Blower Fan
87107 Unit Sub-assy, Heater Radiator
87110 Heater Assy
87123 Knob, Heater
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87152 Cover, Heater Defroster
87188 Packing, Heater Blower Motor
87245F Hose, Heater Water, Inlet F
87246F Hose, Heater Water, Outlet F
87248E Pipe, Heater Water Inlet, E
87249E Pipe, Heater Water Outlet, E (FOR HEATER UNIT)
87277 Gusset, Heater Setting, NO.1
87278 Gusset, Heater Setting, NO.2
87337 Adapter, Heater Blower Motor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
