Toyota Heavy Duty Truck

1969-03 → 2001-12 · chassis FA100,11#,FB100,FC100,DA11#,DB10# · catalogue 821210 · General

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

8 part groups · 3 illustrations

Illustrations

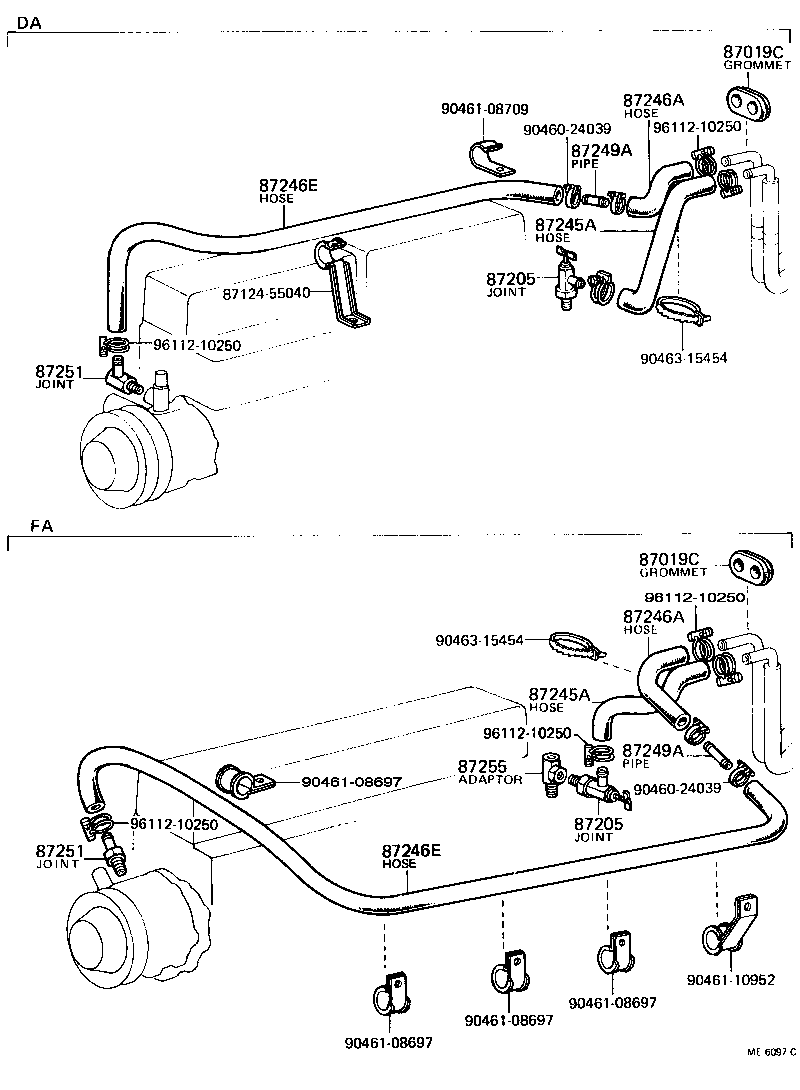

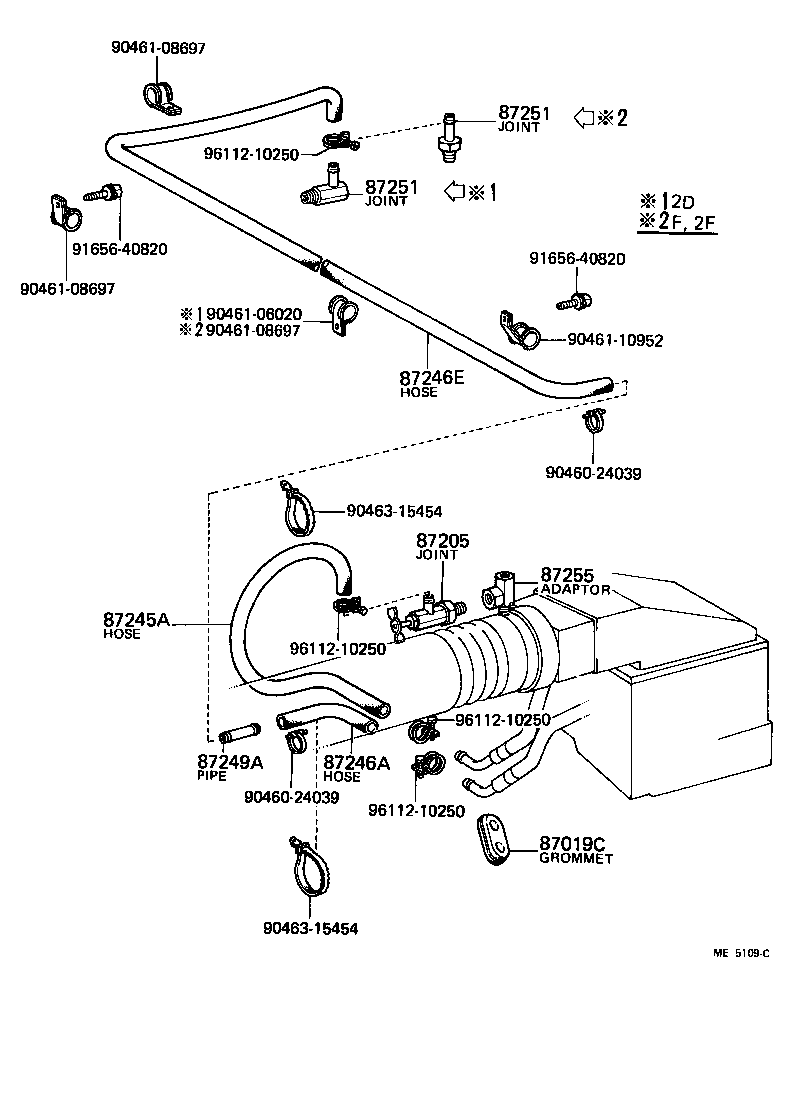

Figure ME5110 ME5110 1969-03 → 1974-03 Figure ME5109C ME5109C 1974-04 → 1977-04 Figure ME6097C ME6097C 1977-04 → —

Part groups

PNCDescription
87019C Grommet, Heater Hose
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87245A Hose, Heater Water, Inlet A
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87249A Pipe, Heater Water Outlet, A
87251 Joint OR Union, Water Hose Through
87255 Adapter, Water Hose Joint
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
