Toyota T100

1993-09 → 1996-08 · chassis RCK10 · catalogue 841310 · General

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

9 part groups · 2 illustrations

Illustrations

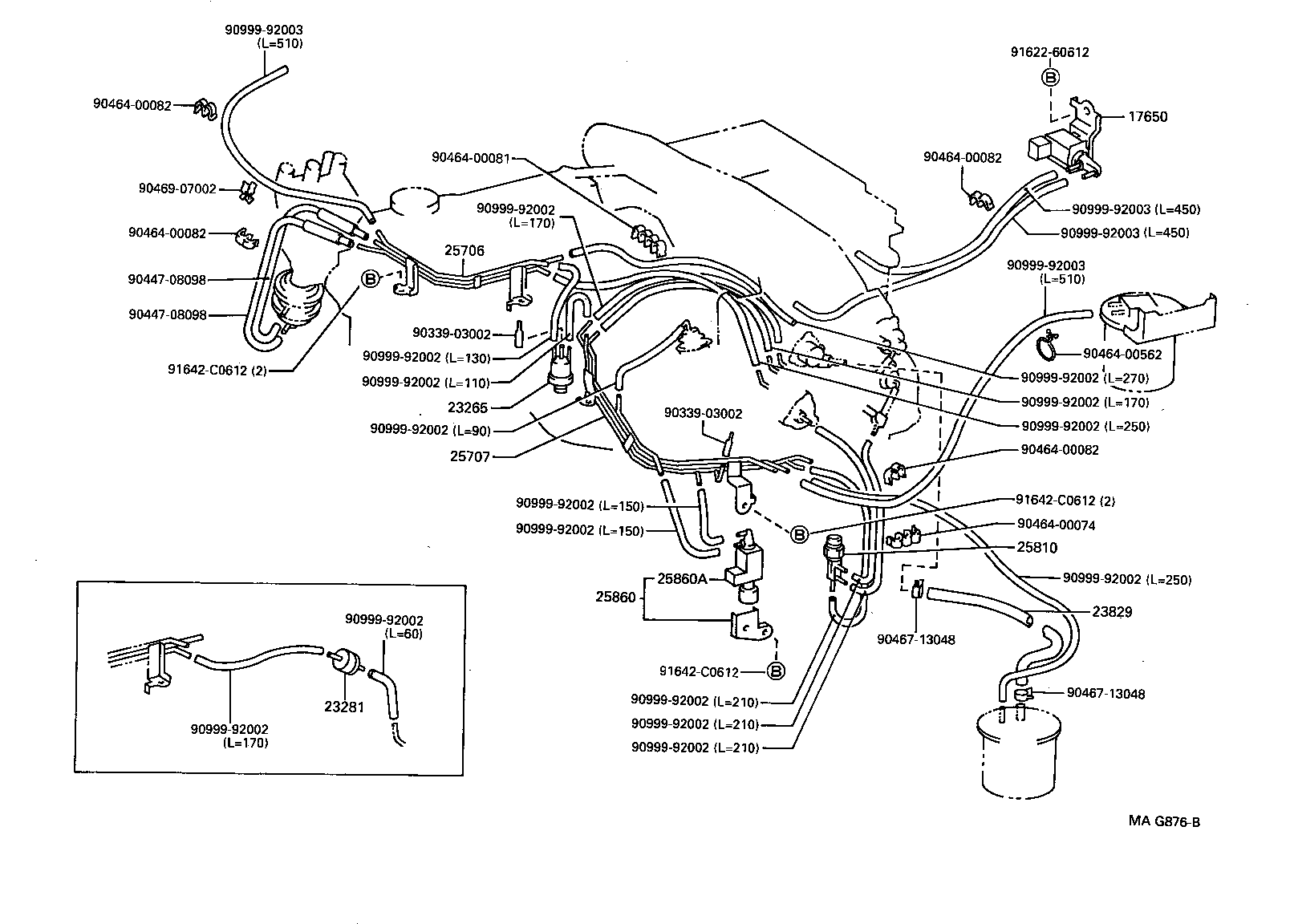

Figure MA9504B MA9504B 1993-09 → — Figure MAG876B MAG876B 1993-09 → —

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
23265 Filter, Gas, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23829 Hose, Fuel Vapor Feed, NO.3
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25810 Valve Assy, Bimetal
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
