Toyota T100
1993-09 → 1996-08 · chassis RCK10 · catalogue 841310 · General
Discontinued model
Data version 1997-02
Seat & Seat Track
50 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

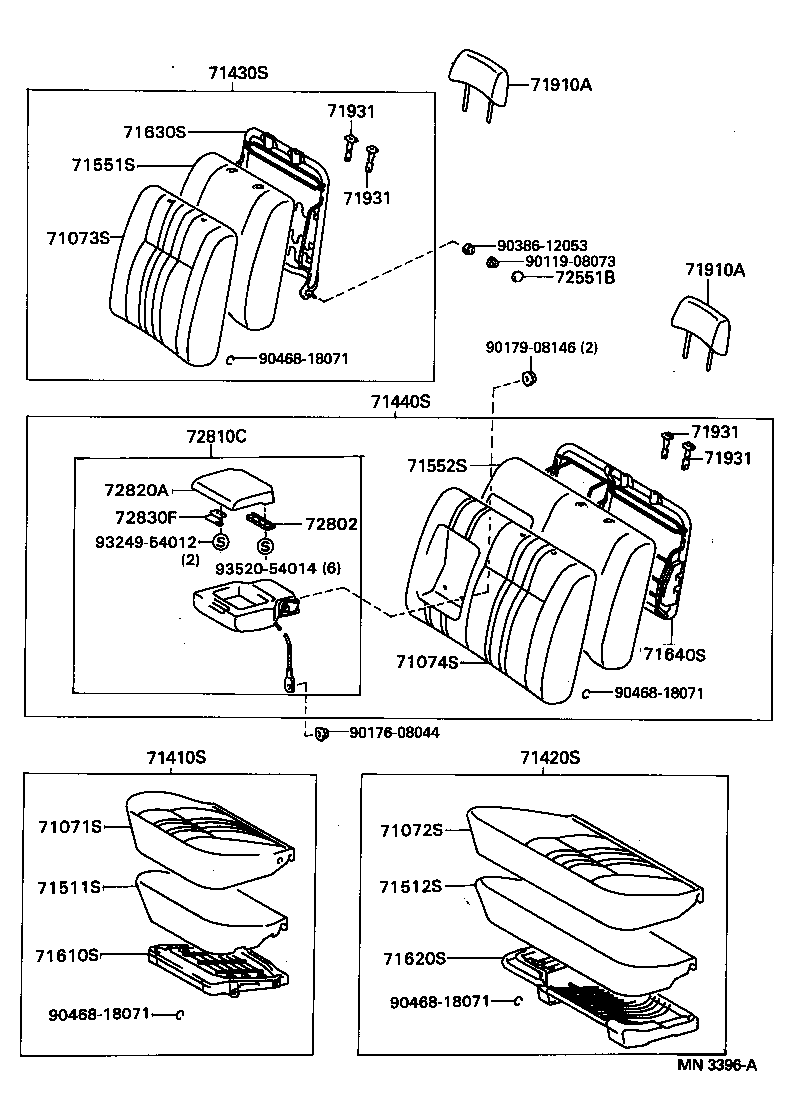

| 71071B | Cover, Front Seat Cushion(FOR BENCH TYPE) |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073B | Cover, Front Seatback(FOR BENCH TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71311 | Pin, Front Seat Hinge |
| 71410B | Cushion Assy, Front Seat(FOR BENCH TYPE) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430B | Back Assy, Front Seat(FOR BENCH TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511B | Pad, Front Seat Cushion(FOR BENCH TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551B | Pad, Front Seatback(FOR BENCH TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71587 | Protector, Front Seatback Edge |
| 71610B | Spring Assy, Front Seat Cushion(FOR BENCH TYPE) |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630B | Spring Assy, Front Seatback(FOR BENCH TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71739 | Cushion, Seat Support |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |

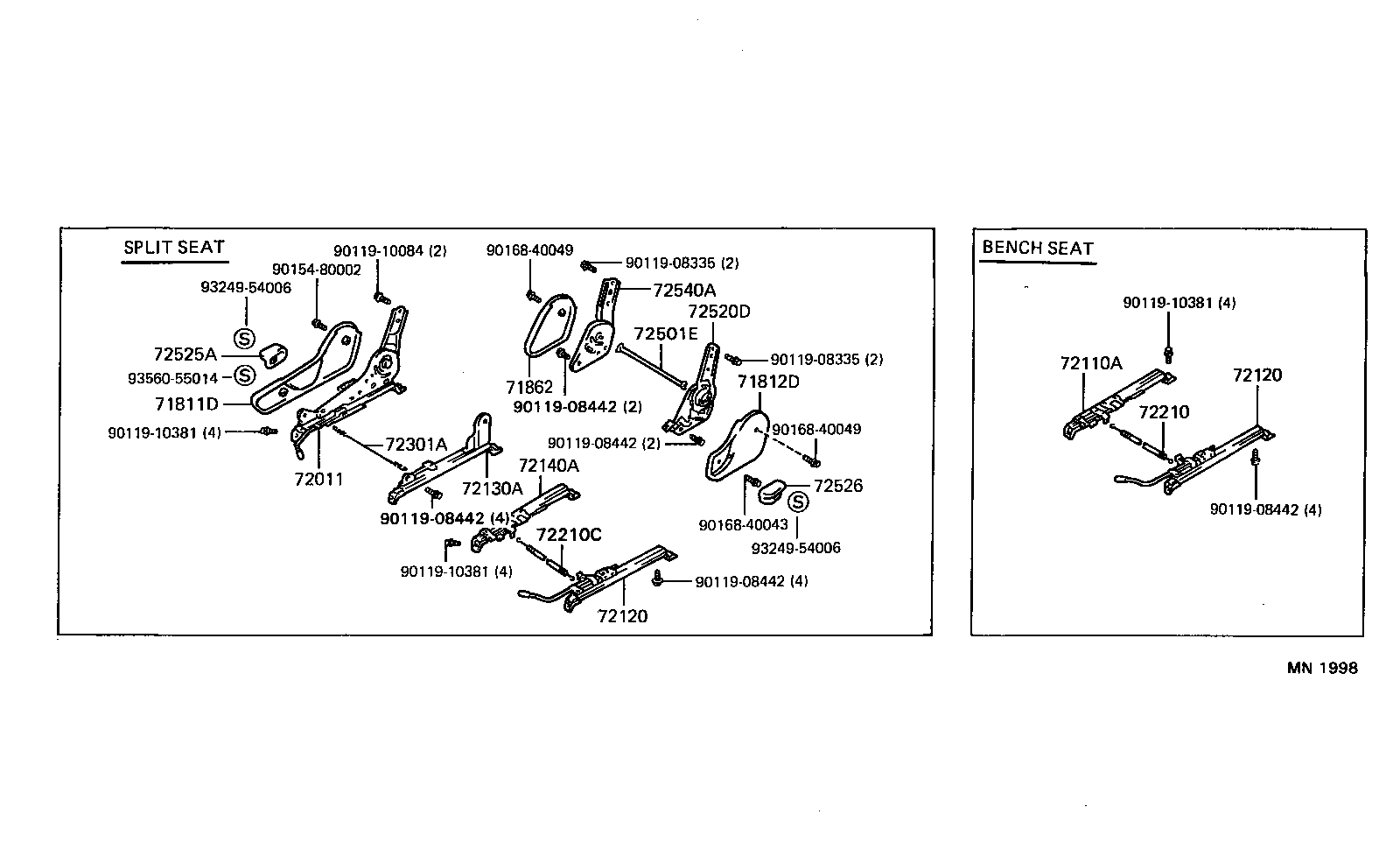

| 72011 | Adjuster Sub-assy, Front Seat, Outer RH |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72210 | Cable Assy, Seat Track Control |
| 72210C | Cable Assy, Seat Track Control, LH |
| 72301A | Wire Sub-assy, Seat Track Equalizing, RH |
| 72501E | Pipe Sub-assy, Reclining Connecting, LH |
| 72520D | Adjuster Assy, Reclining Seat, Outer LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72540A | Adjuster Assy, Reclining Seat, Inner LH |
| 72551B | Cover, Reclining Hinge, RH |
| 72802 | Hinge Sub-assy, Armrest Console |
| 72810C | Armrest Assy, Front Seat, Center |
| 72820A | Armrest Assy, Seat, LH |
| 72830F | Lock Sub-assy, Front Seat Armrest |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
