Toyota T100

1993-09 → 1996-08 · chassis RCK10 · catalogue 841310 · General

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

14 part groups · 4 illustrations

Illustrations

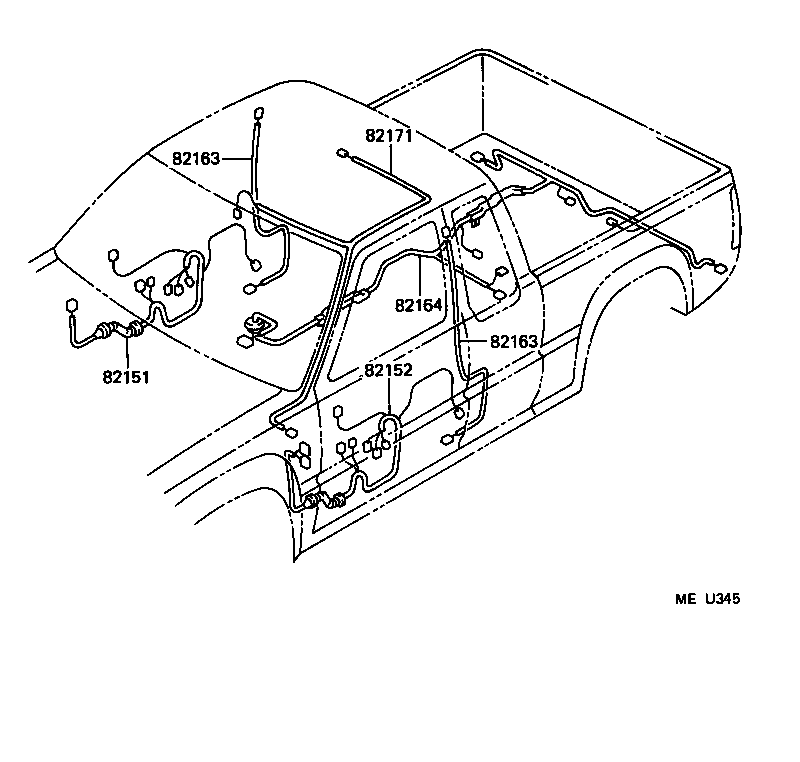

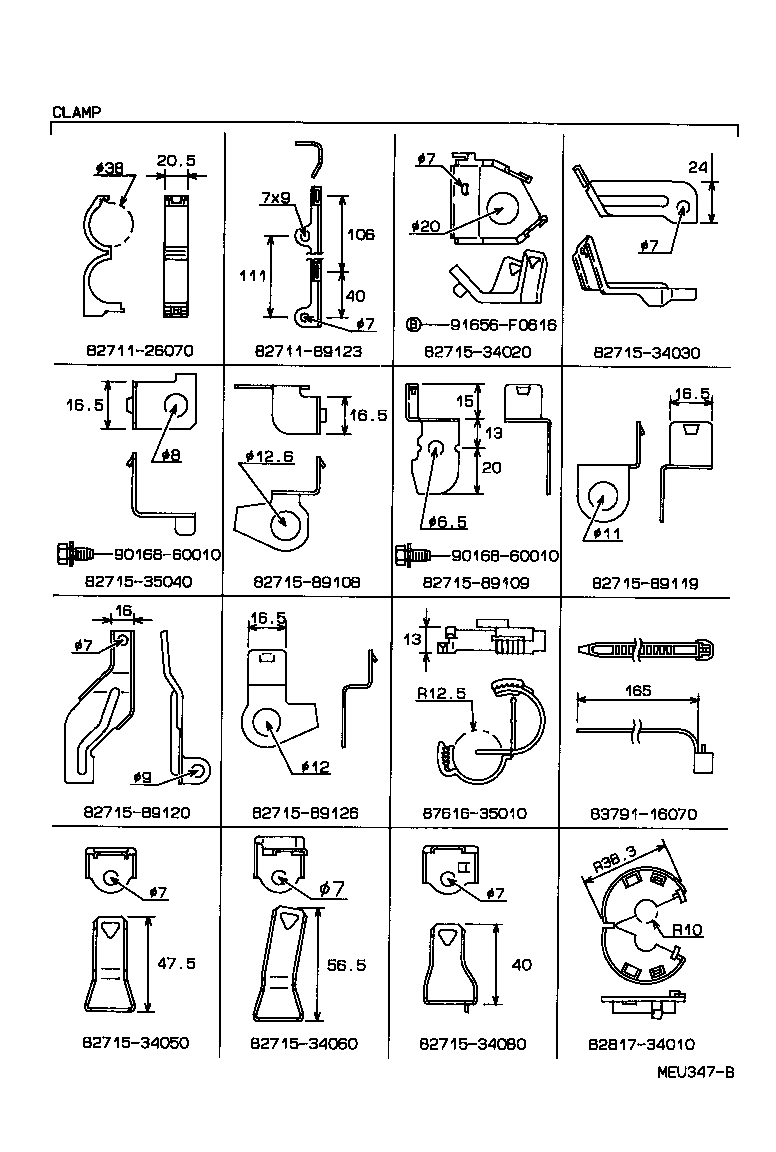

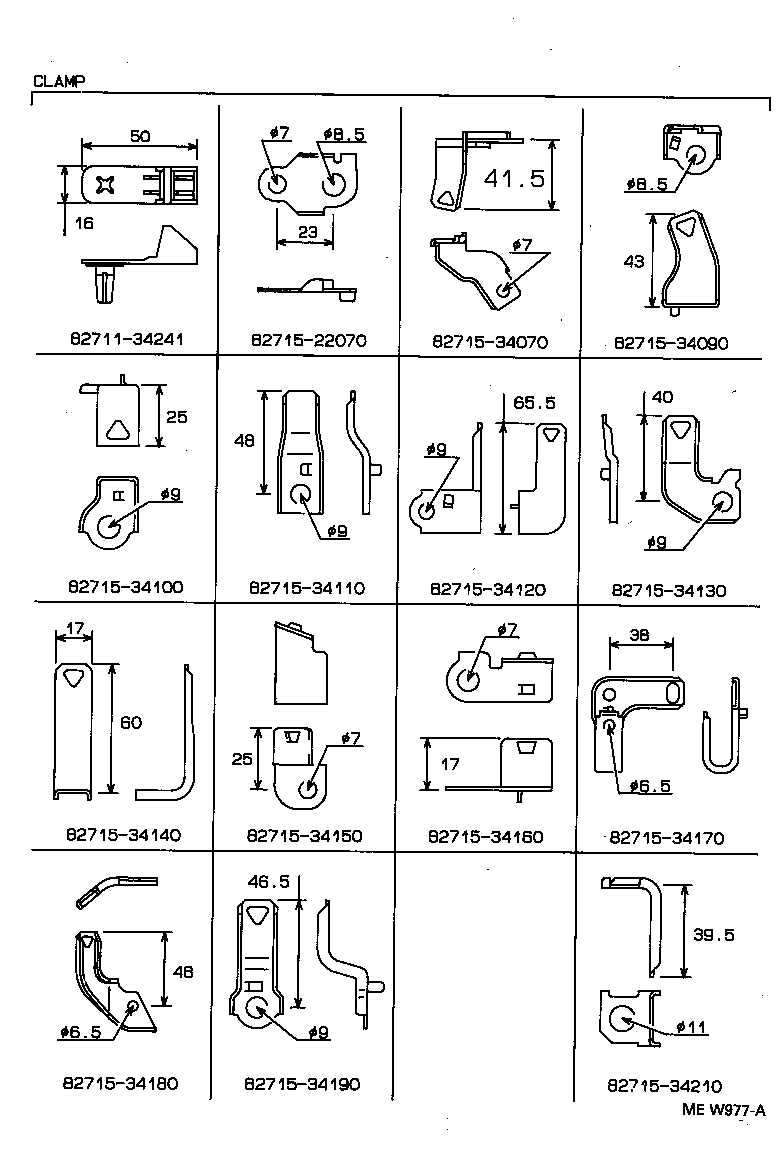

Figure MEW976A MEW976A 1993-09 → — Figure MEU345 MEU345 1993-09 → — Figure MEU347B MEU347B 1993-09 → — Figure MEW977A MEW977A 1993-09 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82163 Wire, Floor, NO.3
82164 Wire, Frame
82171 Wire, Roof, NO.1
82210C Fusible Link
82345 Diode
82620 Block Assy, Fusible Link
82823 Cap, Terminal, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
