Toyota T100

1993-09 → 1996-08 · chassis RCK10 · catalogue 841310 · General

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

19 part groups · 3 illustrations

Illustrations

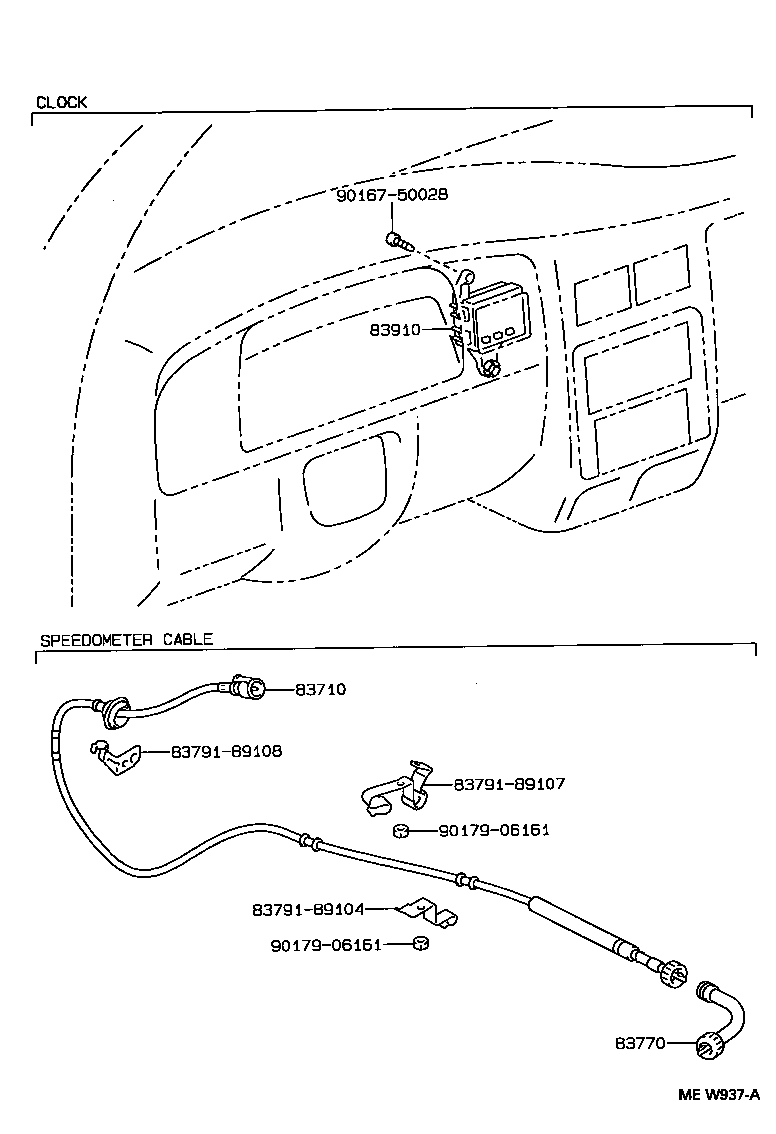

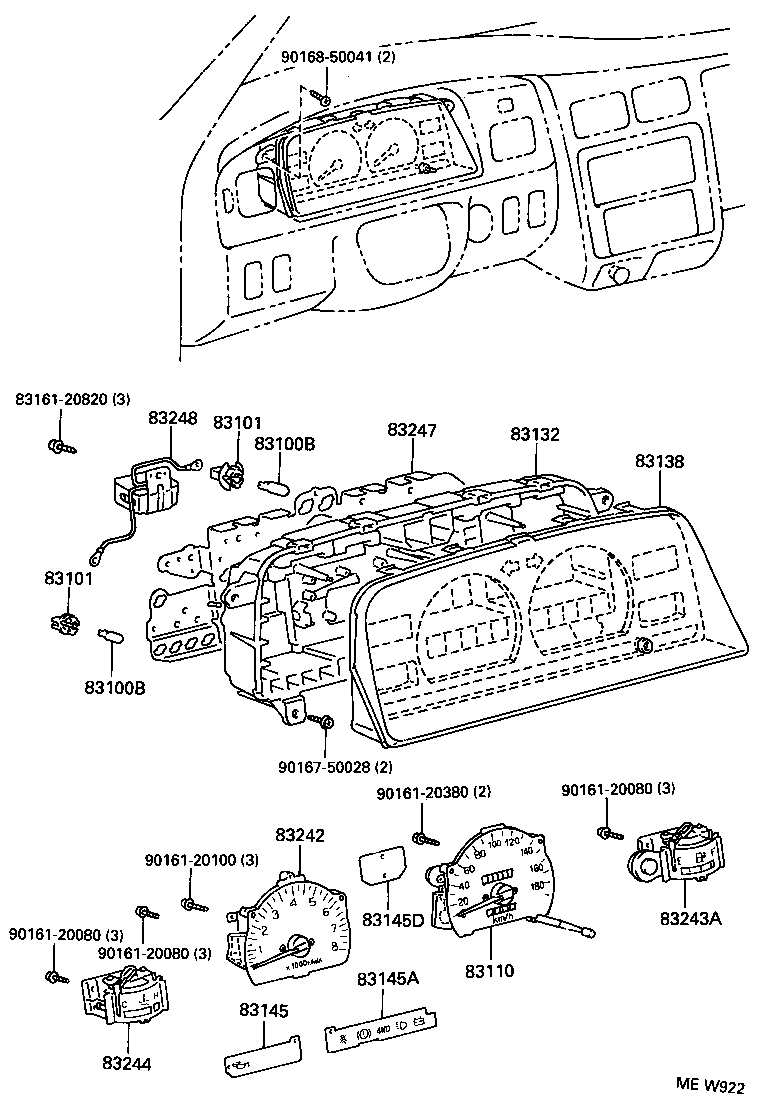

Figure MEW921 MEW921 1993-09 → — Figure MEW922 MEW922 1993-09 → — Figure MEW937A MEW937A 1993-09 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83110 Speedometer Assy
83132 Case, Combination Meter
83138 Glass, Speedometer
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83145C Lens, Meter, NO.4
83145D Lens, Meter, NO.5
83145E Lens, Meter, NO.6
83145T Lens, Meter, NO.8
83242 Tachometer Assy, Engine
83243A Gauge Sub-assy, Fuel Receiver
83244 Gauge Sub-assy, Water Temperature Receiver
83247 Plate, Meter Circuit
83248 Chime, Speed Warning
83710 Cable Assy, Speedometer Drive, NO.1
83770 Adapter Assy, Speedometer Cable
83910 Clock Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
