Toyota Sequoia

2008-11 → 2016-09 · chassis USK6# · catalogue 842320 · General

Supported model Data version 2017-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

13 part groups · 2 illustrations

Illustrations

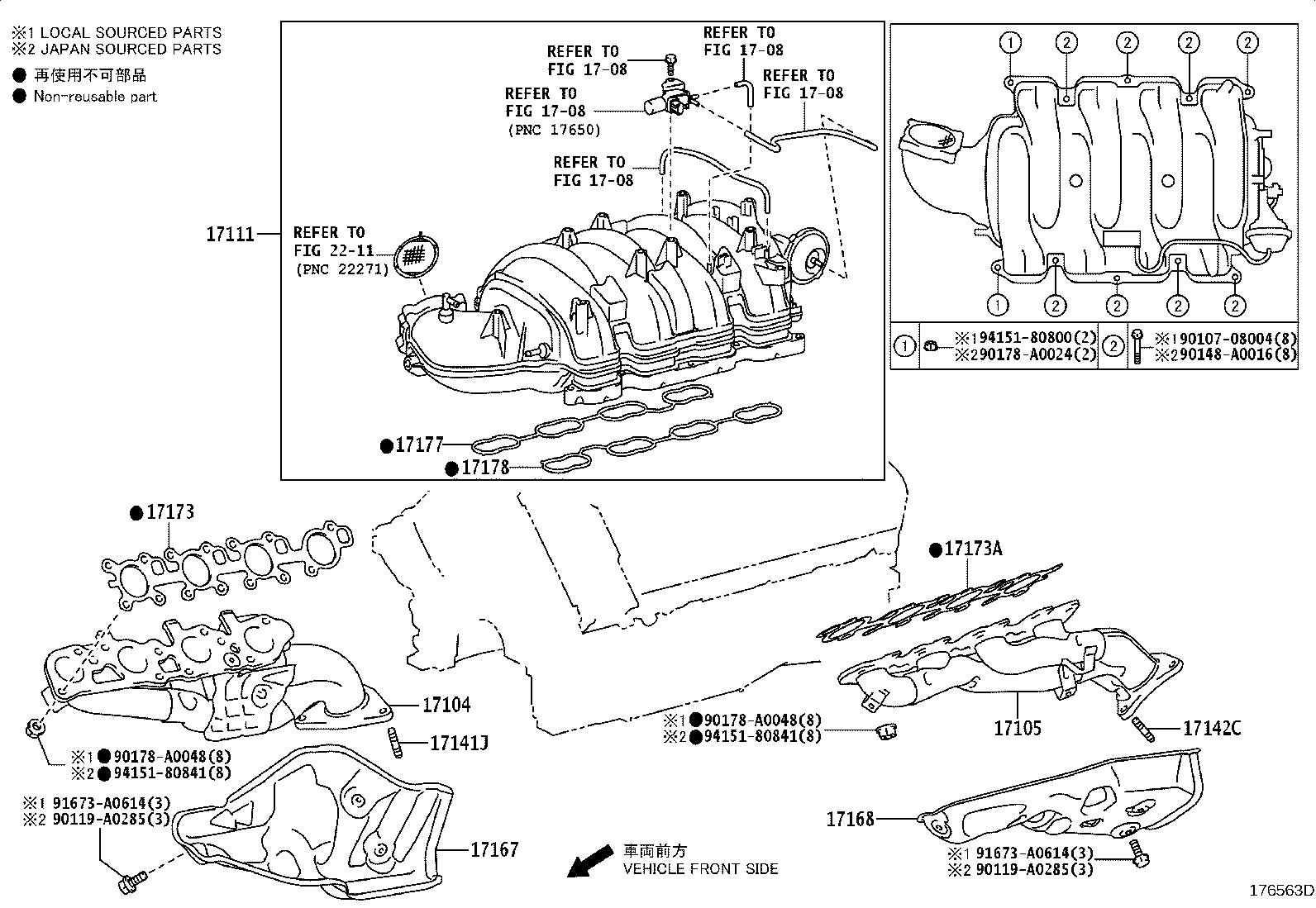

Figure 176146F 176146F 2008-11 → 2009-11 Figure 176563D 176563D 2009-11 → —

Part groups

PNCDescription
17104 Manifold Sub-assy, Exhaust, RH
17105 Manifold Sub-assy, Exhaust, LH
17111 Manifold, Intake
17141J Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
17142C Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17376C Gasket, Air Tube
17377B Gasket, Air Tube, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
