Toyota Sequoia
2008-11 → 2016-09 · chassis USK6# · catalogue 842320 · General
Supported model
Data version 2017-03

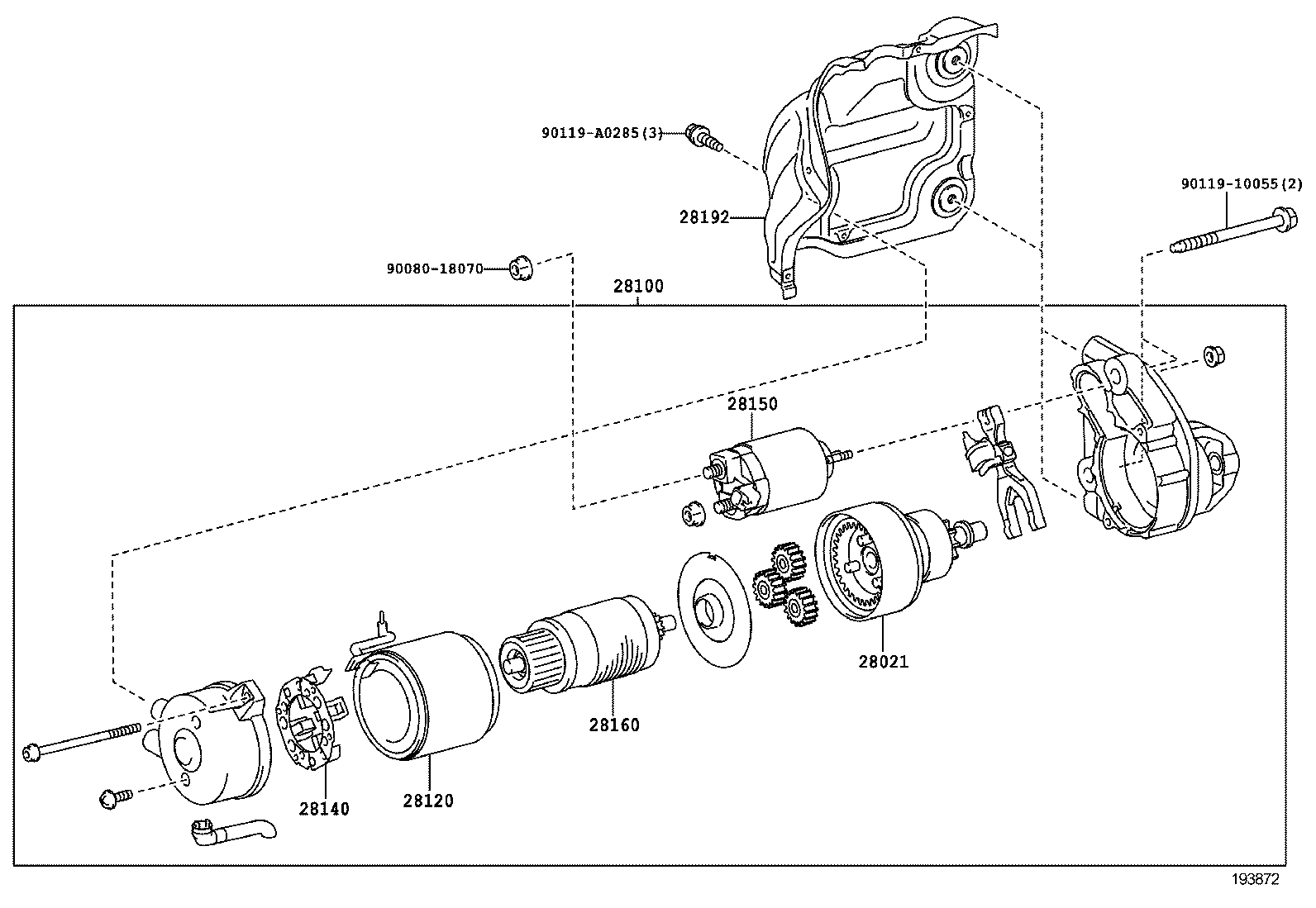

Starter
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28021 | Clutch Sub-assy, Starter Center Bearing |
| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28120 | Yoke Assy, Starter |
| 28130 | Frame Assy, Starter Commutator End |
| 28140 | Holder Assy, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
| 28176 | Screw, Starter |
| 28192 | Cover, Starter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
