Toyota Sequoia
2008-11 → 2016-09 · chassis USK6# · catalogue 842320 · General
Supported model
Data version 2017-03

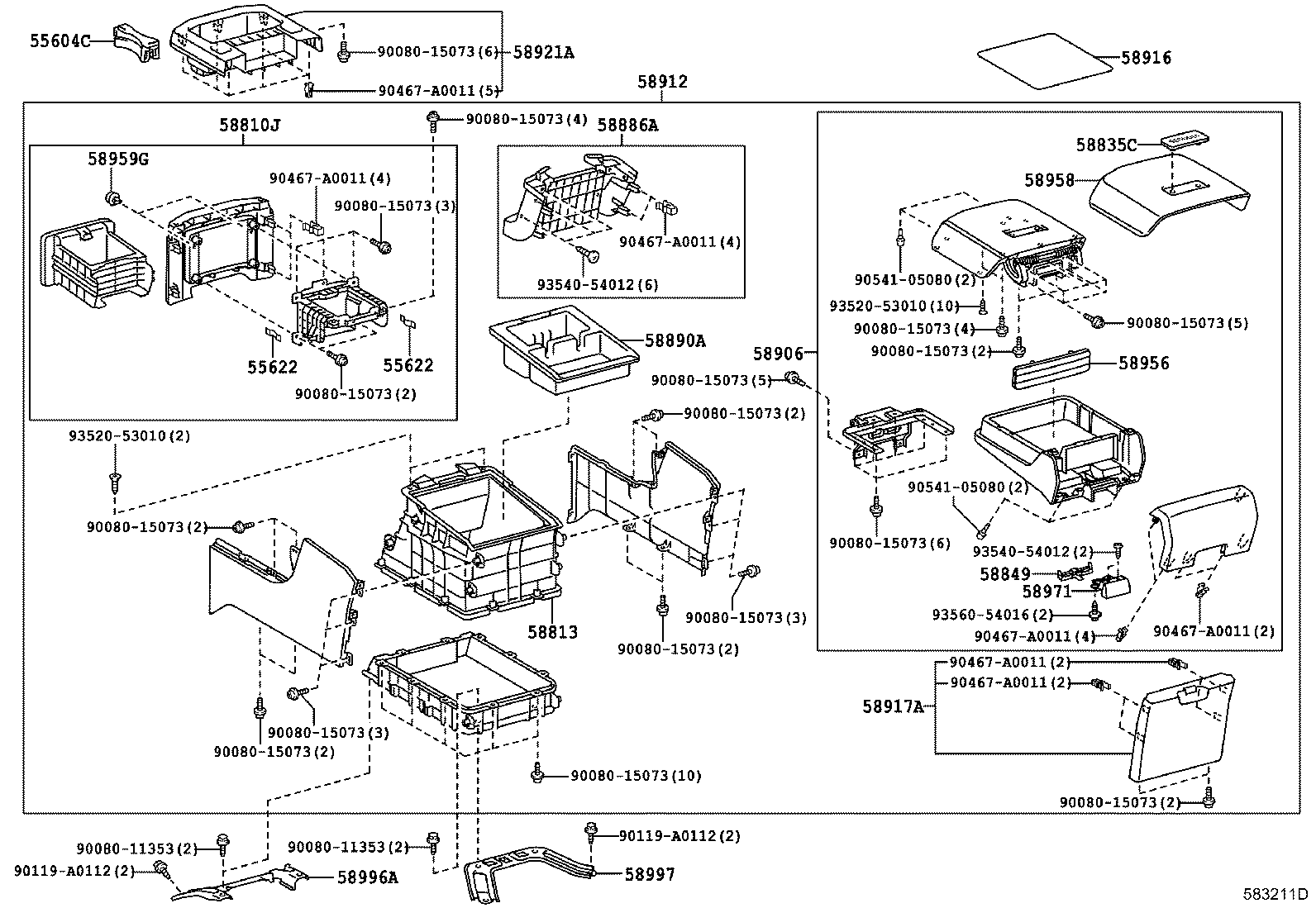

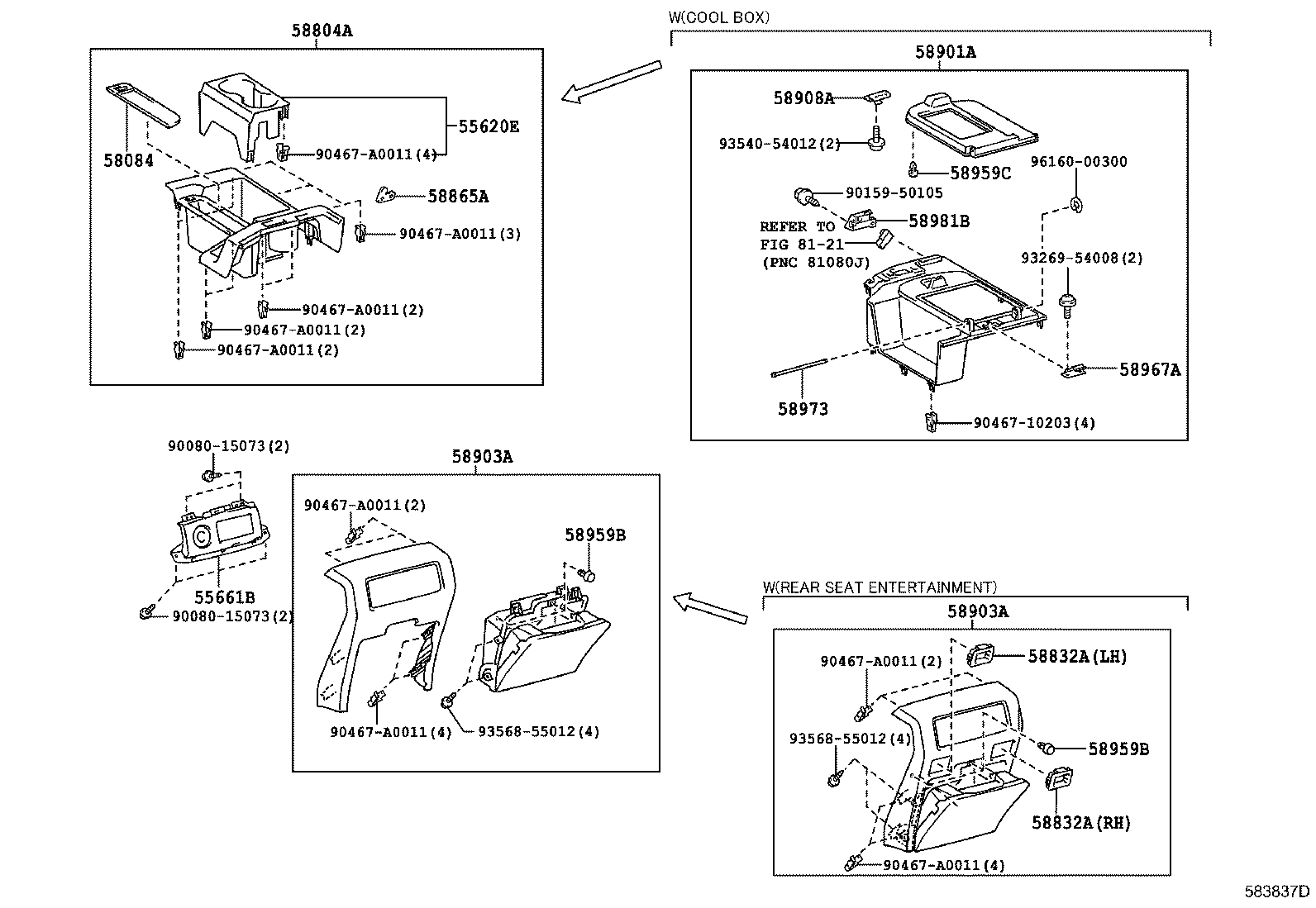

Console Box & Bracket
54 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55539A | Cover, Spare Switch Hole |
| 55539J | Cover, Spare Switch Hole |
| 55539K | Cover, Spare Switch Hole |
| 55539W | Cover, Spare Switch Hole |
| 55604C | Holder Sub-assy, Console Box Cup |
| 55620E | Holder Assy, Instrument Panel Cup |
| 55622 | Spring, Instr Panel Cup Holder, NO.1 |
| 55661B | Bezel, Console Box Register |
| 58084 | Cover Sub-assy, Console, Rear |
| 58804A | Panel Sub-assy, Console, Upper |
| 58805C | Panel Sub-assy, Console, Upper Rear |
| 58810J | Box Assy, Console |
| 58811A | Box, Console, Front |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58813 | Box, Console, Upper |
| 58815A | Carpet, Console Box |
| 58820A | Box Assy, Console Compartment |
| 58823B | Box, Console Compartment |
| 58829 | Pocket, Console Box |
| 58832A | Garnish, Console Upper Panel, Rear |
| 58835C | Ornament, Console Box |
| 58844 | Bezel, Console Box |
| 58849 | Cover, Console Box Hole, NO.2 |
| 58859A | Hook, Console Box Holder |
| 58865A | Lens, Front Console Box, NO.1 |
| 58871 | Cushion, Console Box |
| 58871A | Cushion, Console Box, NO.2 |
| 58886A | Cover, Equipment Set Panel |
| 58890A | Panel Assy, Equipment Set |
| 58901A | Box Sub-assy, Console, Rear |
| 58903A | Panel Sub-assy, Console Rear End |
| 58905 | Door Sub-assy, Console Compartment |
| 58906 | Door Sub-assy, Upper Console |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58910C | Box Assy, Console, Rear |
| 58910D | Clip(FOR CONSOLE BOX) |
| 58912 | Box, Rear Console, NO.2 |
| 58916 | Mat, Box Bottom |
| 58917A | Cover, Console Box, Rear |
| 58918 | Spring, Console Box Stopper |
| 58921A | Panel, Rear Console, Upper |
| 58925A | Pocket, Console Box, Rear |
| 58956 | Plate, Box Door Open Wire NO.1 |
| 58958 | Cover, Console Compartment Door Moulding |
| 58959B | Cushion, Console Compartment Door |
| 58959C | Cushion, Console Compartment Door |
| 58959G | Cushion, Console Compartment Door |
| 58964 | Stopper, Console Compartment Door, NO.1 |
| 58967A | Spring, Console Door Stopper |
| 58971 | Lock, Console Compartment Door |
| 58973 | Pin, Console Compartment Door Lock |
| 58981B | Retainer, Console Mounting, NO.1 |
| 58996A | Bracket, Console Box Mounting, NO.2 |
| 58997 | Bracket, Console Box Mounting, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
