Toyota Sequoia
2008-11 → 2016-09 · chassis USK6# · catalogue 842320 · General
Supported model
Data version 2017-03

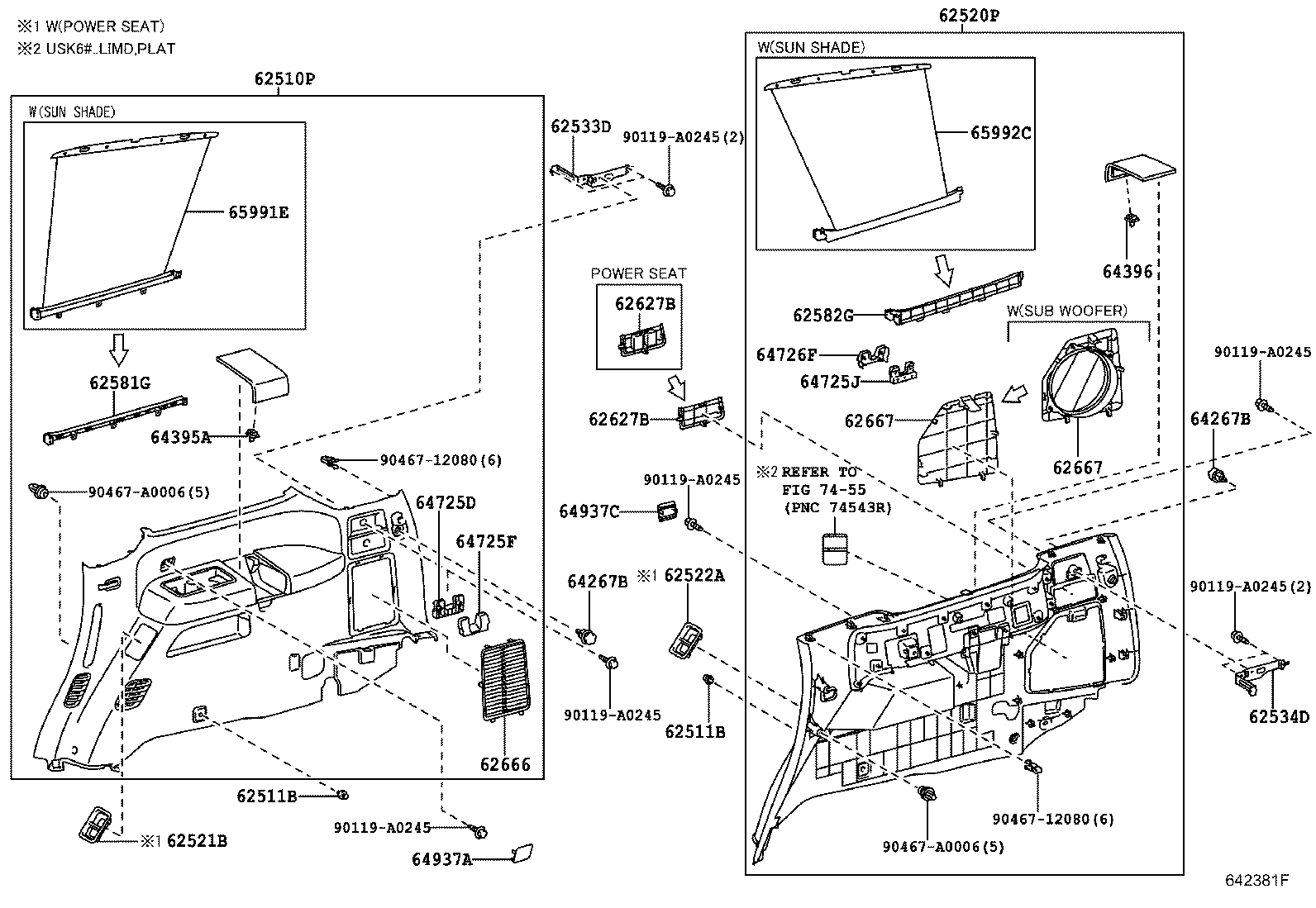

Inside Trim Board
74 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51775 | Cover,Rear Step |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62170B | Bolt, W/Washer |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62215A | Insert, Front Pillar Garnish, RH |
| 62216A | Insert, Front Pillar Garnish, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331C | Weatherstrip, Rear Door Opening Trim, RH |
| 62332C | Weatherstrip, Rear Door Opening Trim, LH |
| 62401A | Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER) |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62430 | Garnish Assy, Roof Side Rail, RH |
| 62430A | Clip, Roof Side Rail Garnish |
| 62440 | Garnish Assy, Roof Side Rail, LH |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62521 | Cover, Quarter Inside Service Hole, RH |
| 62521B | Cover, Quarter Trim, RH |
| 62522 | Cover, Quarter Inside Service Hole, LH |
| 62522A | Cover, Quarter Trim, LH |
| 62533D | Bracket, Quarter Trim, NO.1, RH |
| 62534D | Bracket, Quarter Trim, NO.1, LH |
| 62538C | Cover, Quarter Trim, Hole |
| 62538E | Cover, Quarter Trim, Hole |
| 62550B | Clip(FOR REAR WINDOW SIDE GARNISH) |
| 62550F | Garnish Assy, Rear Window Side, RH |
| 62560C | Garnish Assy, Rear Window Side, LH |
| 62570D | Garnish Assy, Rear Window Side, NO.2 RH |
| 62570E | Clip, Rear Window Side Garnish |
| 62580F | Garnish Assy, Rear Window Side, NO.2 LH |
| 62581G | Cover, Quarter Pillar, RH |
| 62582G | Cover, Quarter Pillar, LH |
| 62591D | Plate, Side Trim Base, NO.1 |
| 62591E | Plate, Side Trim Base, NO.2 |
| 62597D | Clip |
| 62621E | Clip |
| 62627B | Cover, Quarter Trim |
| 62638B | Clip |
| 62647 | Base, Side Board Switch Hole |
| 62666 | Cover, Quarter Trim, RH |
| 62667 | Cover, Quarter Trim, LH |
| 64267B | Hook, Package Holder Net |
| 64342A | Clip |
| 64395A | Pin, Package Tray Trim Hinge, RH |
| 64396 | Pin, Package Tray Trim Hinge, LH |
| 64725D | Hook, Luggage Compartment Trim, NO.1 |
| 64725F | Hook, Luggage Compartment Trim, NO.1 |
| 64725J | Hook, Luggage Compartment Trim, NO.1 |
| 64726F | Hook, Luggage Compartment Trim, NO.2 |
| 64937A | Cap, Tonneau Cover Holder, NO.1 |
| 64937C | Cap, Tonneau Cover Holder, NO.1 |
| 65991E | Curtain, Rear Window, RH |
| 65992C | Curtain, Rear Window, LH |
| 67911A | Plate, Rear Door Scuff, RH |
| 67912A | Plate, Front Door Scuff, Outside LH |
| 67913B | Plate, Front Door Scuff, RH |
| 67914B | Plate, Front Door Scuff, LH |
| 67917C | Plate, Rear Door Scuff, RH |
| 67918D | Plate, Rear Door Scuff, LH |
| 86269F | Grille, Speaker, RH |
| 86279A | Grille, Speaker, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
