Toyota Sequoia
2008-11 → 2016-09 · chassis USK6# · catalogue 842320 · General
Supported model
Data version 2017-03

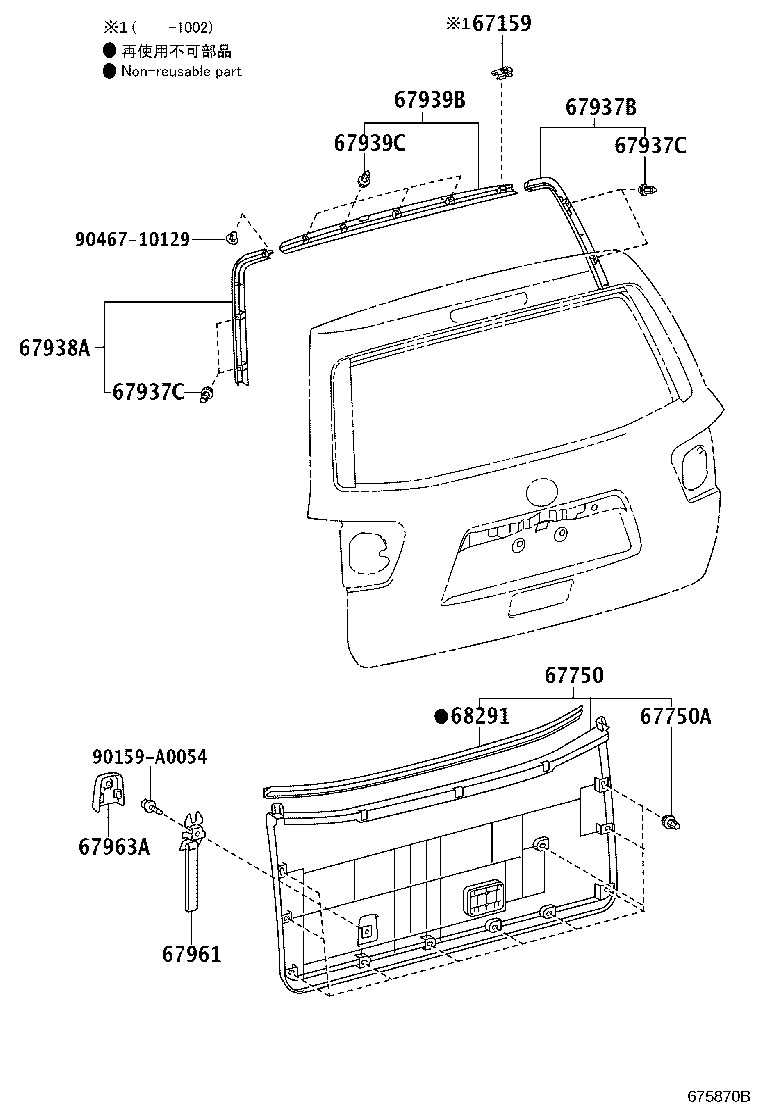

Back Door Panel & Glass
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67159 | Retainer, Back Door Trim |
| 67281B | Stopper, Back Door, Lower |
| 67293 | Cushion, Back Door Lower Stopper |
| 67750 | Board Assy, Back Door Trim |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67847A | Cover, Back Door Service Hole |
| 67848C | Cover, Back Door Service Hole, NO.2 |
| 67881A | Weatherstrip, Back Door |
| 67894A | Protector, Back Door Panel, NO.1 |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67938A | Garnish, Back Door Side, LH |
| 67939B | Garnish, Back Door, Center |
| 67939C | Clip(FOR BACK DOOR CENTER GARNISH) |
| 67961 | Strap, Back Door Pull |
| 67963A | Cover, Back Door Strap |
| 68131 | Glass, Back Door |
| 68275 | Run, Back Door Glass |
| 68290A | Weatherstrip Assy, Back Door Glass, Outer |
| 68291 | Weatherstrip, Back Door Glass |
| 69463A | Stopper, Back Door Male, Lower |
| 75129C | Cushion, Rear Licence Plate |
| 75819 | Clip, Luggage Compartment Door Moulding |
| 76801 | Garnish Sub-assy, Back Door, Outside |
| 76825 | Protector, Back Door Outside Garnish |
| 76827A | Retainer, Back Door Garnish, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
