Toyota Sequoia

2008-11 → 2016-09 · chassis USK6# · catalogue 842320 · General

Supported model Data version 2017-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

254 part groups · 14 illustrations

Illustrations

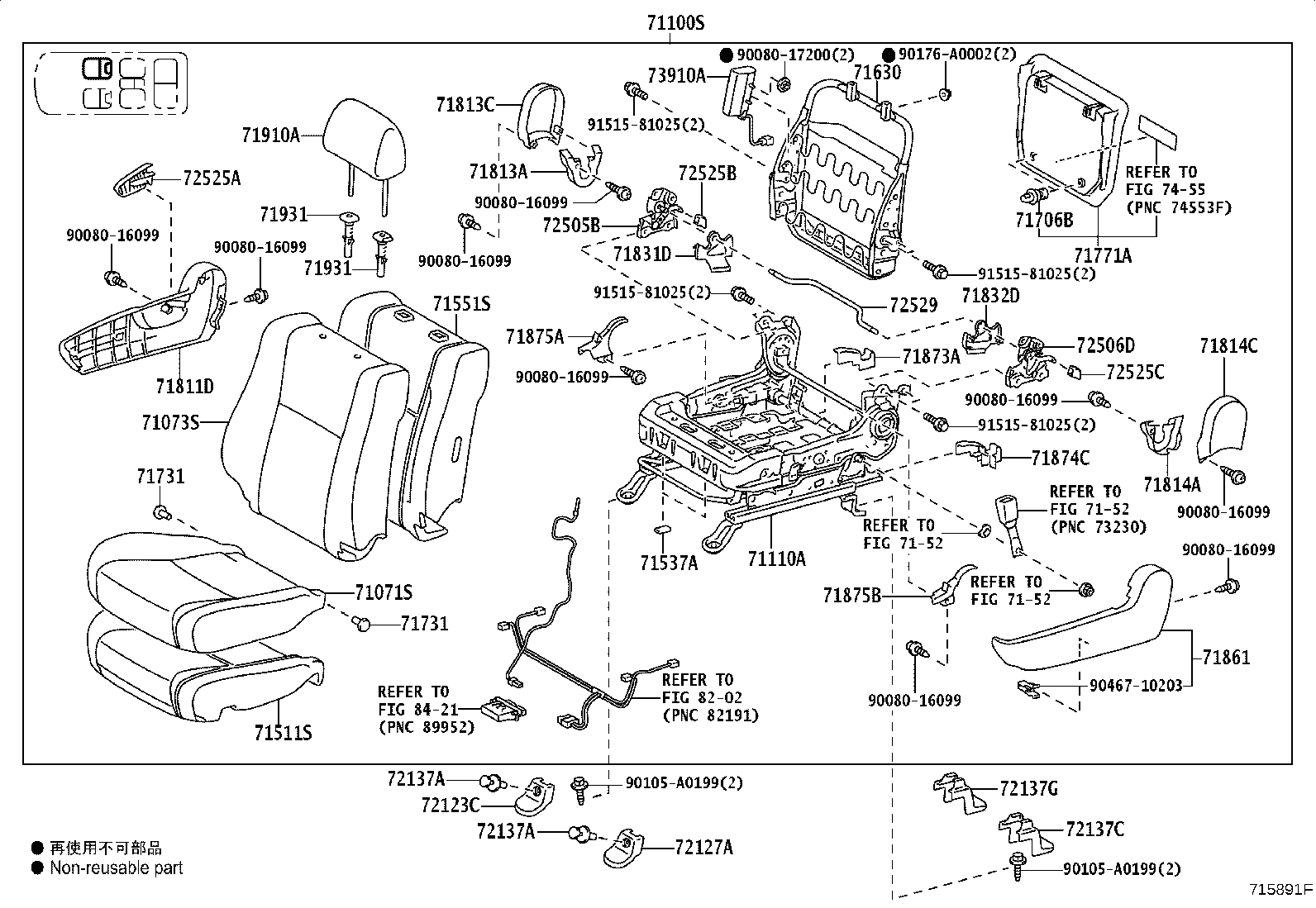

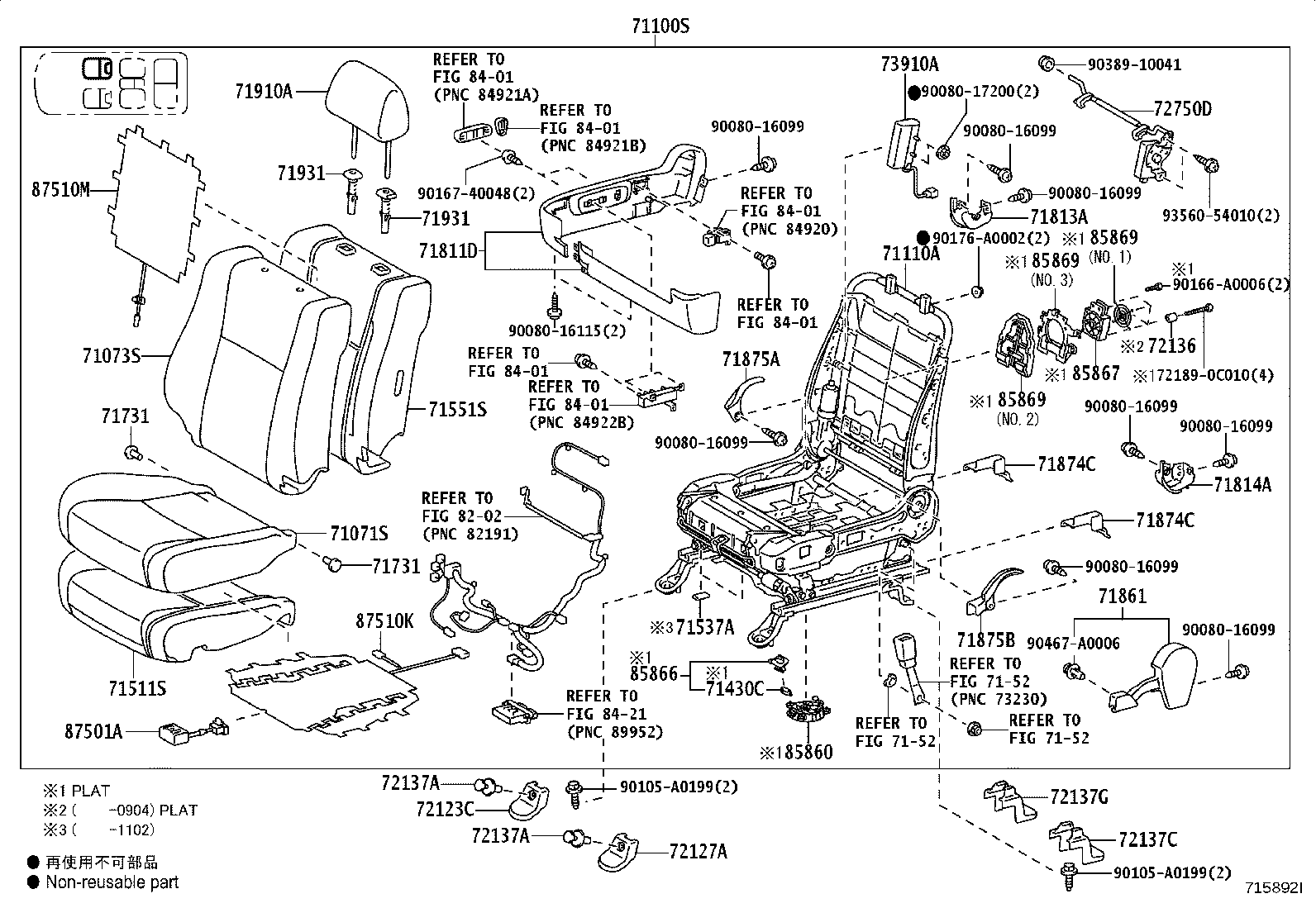

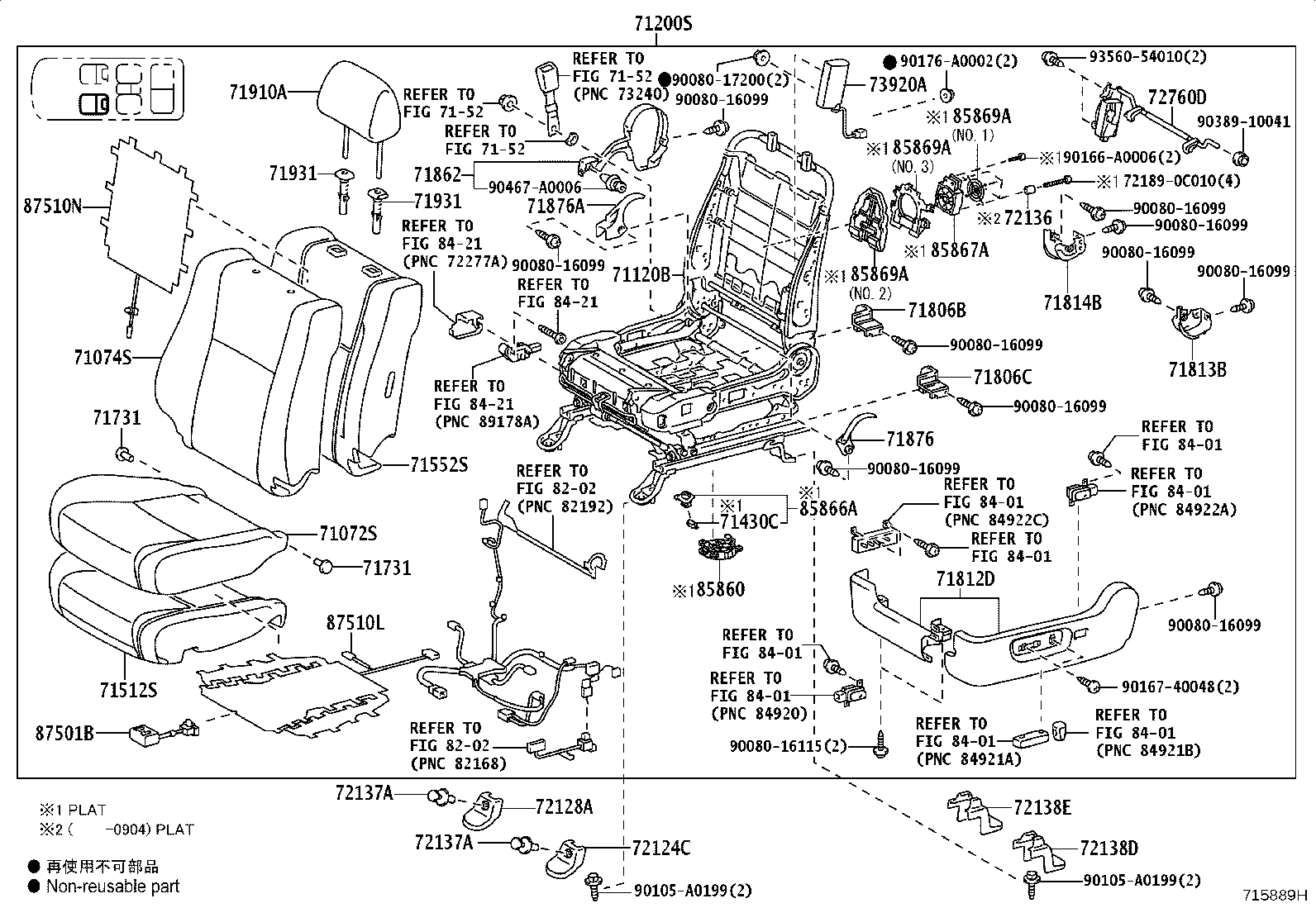

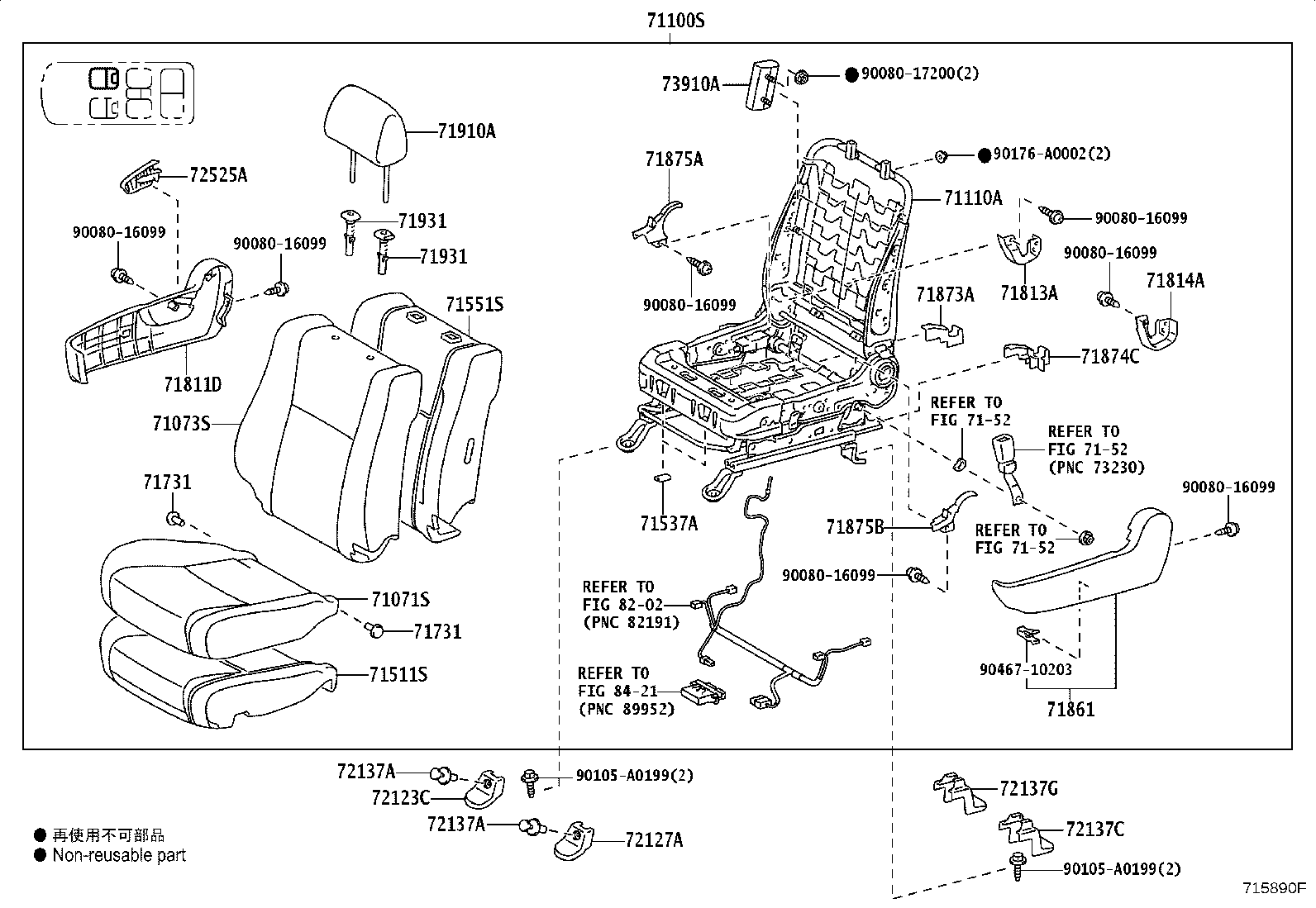

Figure 715888G 715888G 2008-11 → — Figure 715889H 715889H 2008-11 → — Figure 715890F 715890F 2008-11 → — Figure 715891F 715891F 2008-11 → — Figure 715892I 715892I 2008-11 → — Figure 715602A 715602A 2008-11 → — Figure 715402O 715402O 2008-11 → — Figure 715403P 715403P 2008-11 → — Figure 715404F 715404F 2008-11 → — Figure 715379L 715379L 2008-11 → — Figure 715380L 715380L 2008-11 → — Figure 715381M 715381M 2008-11 → — Figure 715382M 715382M 2008-11 → — Figure 71B436A 71B436A 2008-11 → —

Part groups

PNCDescription
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71087 Board Sub-assy, Rear Seatback
71095S Cover Sub-assy, Center Seatback
71097S Cover Sub-assy, Center Seat Cushion
71100S Seat Assy, Front RH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71200S Seat Assy, Front LH
71237 Bracket, Rear Seat
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305S Frame Sub-assy, Center Seatback
71307D Bracket Sub-assy, Rear Seat Cushion Support, RH
71308D Bracket Sub-assy, Rear Seat Cushion Support, LH
71385B Bracket, Rear Seat Cushion Holder, RH
71386A Bracket, Rear Seat Cushion Holder, LH
71395B Cover, Center Seat Hinge, RH
71396B Cover, Center Seat Hinge, LH
71397A Cover, Center Seat Hinge
71398H Cover, Center Seat Hinge, Upper LH
71430C Clip
71461A Spring, Rear Seat Cushion, NO.1
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71607 Rod Sub-assy, Rear NO.2 Seat
71611A Pad, Rear Seat Cushion, RH
71611E Pad, Rear NO.2 Seat Cushion, A
71612A Pad, Rear Seat Cushion, LH
71612B Pad, Rear Seat Cushion, B
71614 Pad, Rear Seat Cushion, Center
71628E Spacer, Rear Seat Cushion
71629A Cover, Rear Seat Cushion Hinge, RH
71630 Spring Assy, Front Seatback, RH
71639 Cover, Rear Seat Cushion Hinge, LH
71650 Spring Assy, Rear Seat Cushion
71650B Spring Assy, Rear Seat Cushion, RH
71651C Pad, Rear Seatback, A
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652C Pad, Rear Seatback, B
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71660B Spring Assy, Rear Seat Cushion, LH
71667C Pad, Rear NO.1 Seatback, Center
71691B Cover, Rear Seat Lock, Outer RH
71691C Cover, Rear Seat Lock, Inner RH
71691D Cover, Rear Seat Cushion Hinge, Upper RH
71691E Cover, Rear Seat Cushion Hinge, NO.1
71691H Cover, Rear Seat Cushion Hinge, NO.2
71691J Cover, Rear Seat Cushion Hinge, NO.3
71691K Cover, Rear Seat Cushion Hinge, NO.4
71692B Cover, Rear Seat Lock, Outer LH
71692C Cover, Rear Seat Lock, Inner LH
71692D Cover, Rear Seat Cushion Hinge, Upper LH
71692H Cover, Rear Seat Cushion Hinge, NO.3
71692J Cover, Rear Seat Cushion Hinge, NO.4
71693 Cover, Rear Seat Cushion Hinge, Lower RH
71694 Cover, Rear Seat Cushion Hinge, Lower LH
71701B Board Sub-assy, Rear Seatback, RH
71701C Board Sub-assy, Rear Seatback, RH
71702B Board Sub-assy, Rear Seatback, LH
71702C Board Sub-assy, Rear Seatback, LH
71706B Clip, Front Seatback Board
71731 Fastener Sub-assy, Seat Cover, A (FOR FRONT SEAT)
71771A Board, Front Seatback
71806B Shield Sub-assy, Front Seat Cushion, LH NO.1
71806C Shield Sub-assy, Front Seat Cushion, LH NO.2
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71813A Shield, Front Seatback, RH
71813B Shield, Front Seatback, RH
71813C Shield, Front Seatback, RH
71814A Shield, Front Seatback, LH
71814B Shield, Front Seatback, LH
71814C Shield, Front Seatback, LH
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71834A Cover, Rear Seat Reclining, NO.1 LH
71843A Cover, Rear Seat Reclining, NO.2 RH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71873A Shield, Front Seat Cushion, Lower
71874C Shield, Front Seat Cushion, Lower
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71878A Cover, Rear Seat Reclining, Inner RH
71878B Cover, Rear Seat Reclining, Inner RH
71878C Cover, Rear Seat Reclining, Inner RH
71878D Cover, Rear Seat Reclining, Inner RH
71878E Cover, Rear Seat Reclining, Inner RH
71879A Cover, Rear Seat Reclining, Inner LH
71879B Cover, Rear Seat Reclining, Inner LH
71879C Cover, Rear Seat Reclining, Inner LH
71879D Cover, Rear Seat Reclining, Inner LH
71879E Cover, Rear Seat Reclining, Inner LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71931B Support Assy, Rear NO.1 Seat Headrest
71931C Support Assy, Rear NO.2 Seat Headrest
71940A Headrest Assy, Rear Seat
71940E Headrest Assy, NO.2 Seat
71956B Support, Rear Seat Headrest
71960B Headrest Assy, Rear Seat, Center
71970 Headrest Assy, Rear Seat
72030 Adjuster Assy, Rear NO.1 Seat
72035 Adjuster Sub-assy, Rear NO.1 Seat
72057 Lever Sub-assy, Rear Seat Lock Control, RH
72058 Lever Sub-assy, Rear Seat Lock Control
72058A Lever Sub-assy, Rear Seat Lock Control, LH
72067 Lever Sub-assy, Rear Back Lock Control, RH
72068 Lever Sub-assy, Rear Back Lock Control, LH
72069 Cable Sub-assy, Rear Seatback Lock Control
72123A Cover, Seat Track Bracket, Outer Front RH
72123C Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72124C Cover, Seat Track Bracket, Outer Front LH
72127A Cover, Seat Track Bracket, Inner Front RH
72127E Cover, Seat Track Bracket, Inner Front
72128A Cover, Seat Track Bracket, Inner Front LH
72136 Spacer, Seat Track, Lower NO.1
72137A Clip (FOR SEAT TRACK COVER)
72137C Cover, Seat Track Inner, RH
72137E Cover, Seat Track, NO.1
72137F Cover, Seat Track, NO.2
72137G Cover, Seat Track, Outer RH
72138D Cover, Seat Track, Outer, LH
72138E Cover, Seat Track, Inner LH
72157 Cover, Seat Track Bracket, Inner
72158 Cover, Seat Track Bracket, Inner LH
72159B Cover, Rear Seat Track Bracket, Outer
72159D Cover, Rear Seat Track Bracket, Outer RH
72159E Cover, Rear Seat Track Bracket, Outer LH
72160B Track Assy, Rear NO.1 Seat, RH
72160C Track Assy, Rear NO.1 Seat, Outer RH
72170B Track Assy, Rear NO.1 Seat, LH
72170C Track Assy, Rear NO.1 Seat, Inner RH
72173 Handle, Rear Seat Track Adjusting
72173A Handle, Rear Seat Track Adjusting, RH
72173B Handle, Rear Seat Track Adjusting, LH
72207A Plate, Seat Track Stop RH
72208 Plate, Seat Track Stop, LH
72210A Track Assy, Rear NO.1 Seat, Outer RH
72220 Track Assy, Rear NO.1 Seat, Inner LH
72307 Link Sub-assy, Reclining Control, RH
72308 Link Sub-assy, Reclining Control, LH
72457 Knob, Vertical Seat Adjuster
72459A Cap, Vertical Seat Adjuster Knob
72478 Bush, Vertical Adjuster
72495 Handle, Vertical Adjusting, LH
72505B Lock Sub-assy, Front Seatback, RH
72506D Lock Sub-assy, Front Seatback, LH
72525A Handle, Reclining Adjuster Release, RH
72525B Handle, Reclining Adjuster Release, RH
72525C Handle, Reclining Adjuster Release, NO.1 RH
72526 Handle, Reclining Adjuster Release, LH
72529 Rod, Front Seat Backlock Handle
72571A Base, Reclining Control, RH
72572A Base, Reclining Control, LH
72572B Cap, Reclining Adjuster Knob, RH
72572C Cap, Reclining Adjuster Knob, LH
72615C Cover, Rear Seatback Lock Striker
72616B Cover, Rear Seat Lock Striker
72620B Cable Assy, Rear NO.1 Seat Lock
72620C Cable Assy, Rear NO.1 Seat Lock
72620D Cable Assy, Rear NO.1 Seat Lock
72620E Cable Assy, Rear NO.1 Seat Lock
72622B Bush, Rear Seatback Stopper Connecting Rod
72630B Adjuster Assy, Rear NO.1 Seat, Inner RH
72631 Plate, Rear Seatback Lock, RH
72632 Plate, Rear Seatback Lock, LH
72640B Adjuster Assy, Rear NO.1 Seat, Inner LH
72667 Bezel, Rear Seatback Lock, Upper
72704A Cable, Rear Seat Reclining Control
72704B Cable, Rear Seat Reclining Control, NO.2
72730E Adjuster Assy, Rear Seatback, Outer RH
72735 Lever, Rear Seat Reclining Release
72736 Lever, Rear Seat Reclining Release, LH
72740A Adjuster Assy, Rear Seat Reclining, LH
72741 Plate, Rear Seat Reclining Lock, RH
72742 Plate, Rear Seat Reclining Lock, LH
72749 Spacer, Rear Seat Reclining
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
72810A Armrest Assy, Seat, RH
72820A Armrest Assy, Seat, LH
72830 Armrest Assy, Rear Seat, Center
72832A Plate, NO.1 Seat Armrest
72848A Cap, Seat Armrest, NO.1
72868 Cover, Center Armrest Hinge, RH
72869 Cover, Center Armrest Hinge, LH
72909 Handle 3RD Seat
72927 Cover, Rear Seat Cushion Under, RH
72927B Cover, Rear Seat Cushion Under
72928 Cover, Rear Seat Cushion Under, LH
72995 Cover, Rear Seat Cushion, RH
72995C Cover, Rear Seat Cushion, Outer RH
72995D Cover, Rear Seat Cushion, Inner RH
72996 Cover, Rear Seatback, RH
72996A Cover, Rear Seatback
72997 Cover, Rear Seatback, LH
72998 Cover, Rear Seat Cushion, LH
72998B Cover, Rear Seat Cushion, LH
72999 Cover, Rear Seat Cushion LH
73373F Cover, Rear Seat Shoulder Belt Hole
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
73949 Cap
79013 Cover Sub-assy, NO.1 Seatback, RH
79014 Cover Sub-assy, NO.1 Seatback, LH
79021 Cover Sub-assy, NO.2 Seat Cushion, RH
79022 Cover Sub-assy, NO.2 Seat Cushion, LH
79023 Cover Sub-assy, NO.2 Seatback, RH
79024 Cover Sub-assy, NO.2 Seatback, LH
79030B Leg Assy, Rear NO.2 Seat, RH
79040B Leg Assy, Rear NO.2 Seat, LH
79205B Leg Sub-assy, NO.2 Seat, RH
79206B Leg Sub-assy, NO.2 Seat, LH
79303A Frame Sub-assy, NO.3 Seatback, RH
79304A Frame Sub-assy, NO.3 Seatback, LH
79360A Spring Assy, NO.3 Seat Cushion, RH
79370A Spring Assy, NO.3 Seat Cushion, LH
79968B Clip
85820X Motor Assy, Power Seat
85820Y Motor Assy, Power Seat
85860 Blower Assy, Seat Cushion Climate Control
85866 Duct, Seat Cushion Climate Control, RH
85866A Duct, Seat Cushion Climate Control, LH
85867 Blower, Seatback Climate Control, RH
85867A Blower, Seatback Climate Control, LH
85869 Cover, Seatback Climate Control, RH
85869A Cover, Seatback Climate Control, LH
87501A Control Sub-assy, Seat Heater, RH
87501B Control Sub-assy, Seat Heater, LH
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
87510P Heater Assy, Seat
87510Q Heater Assy, Seat
87510R Heater Assy, Seat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
