Toyota Sequoia

2008-11 → 2016-09 · chassis USK6# · catalogue 842320 · General

Supported model Data version 2017-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

28 part groups · 4 illustrations

Illustrations

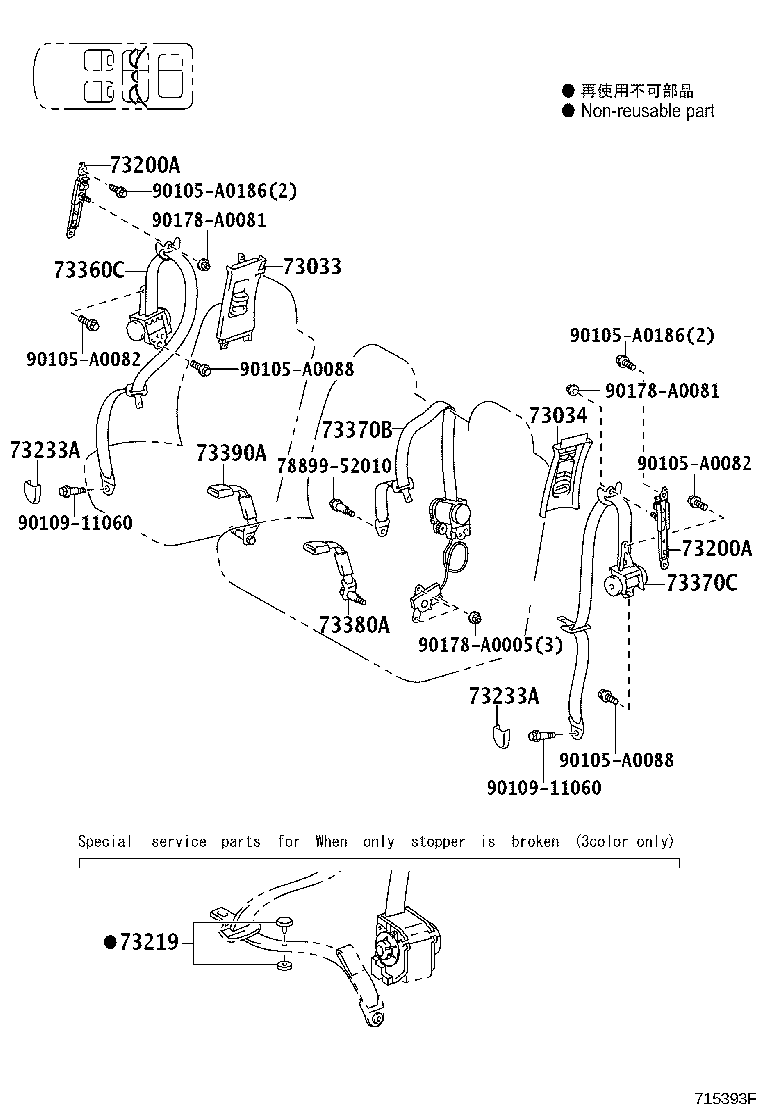

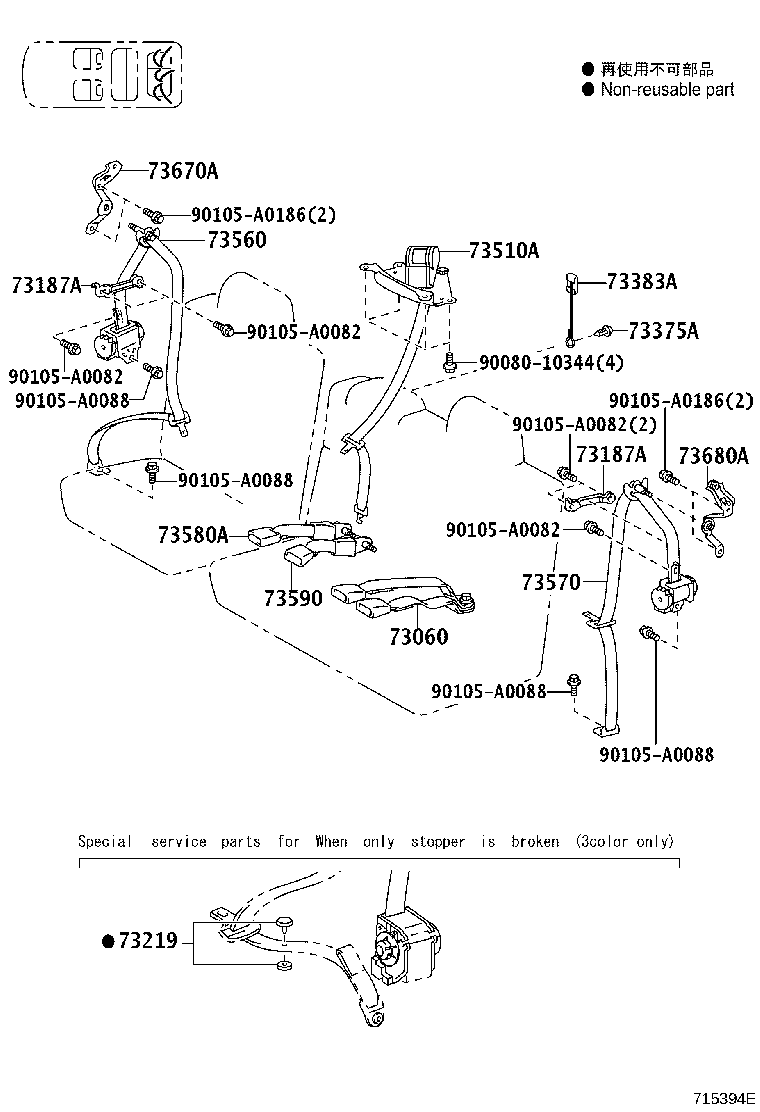

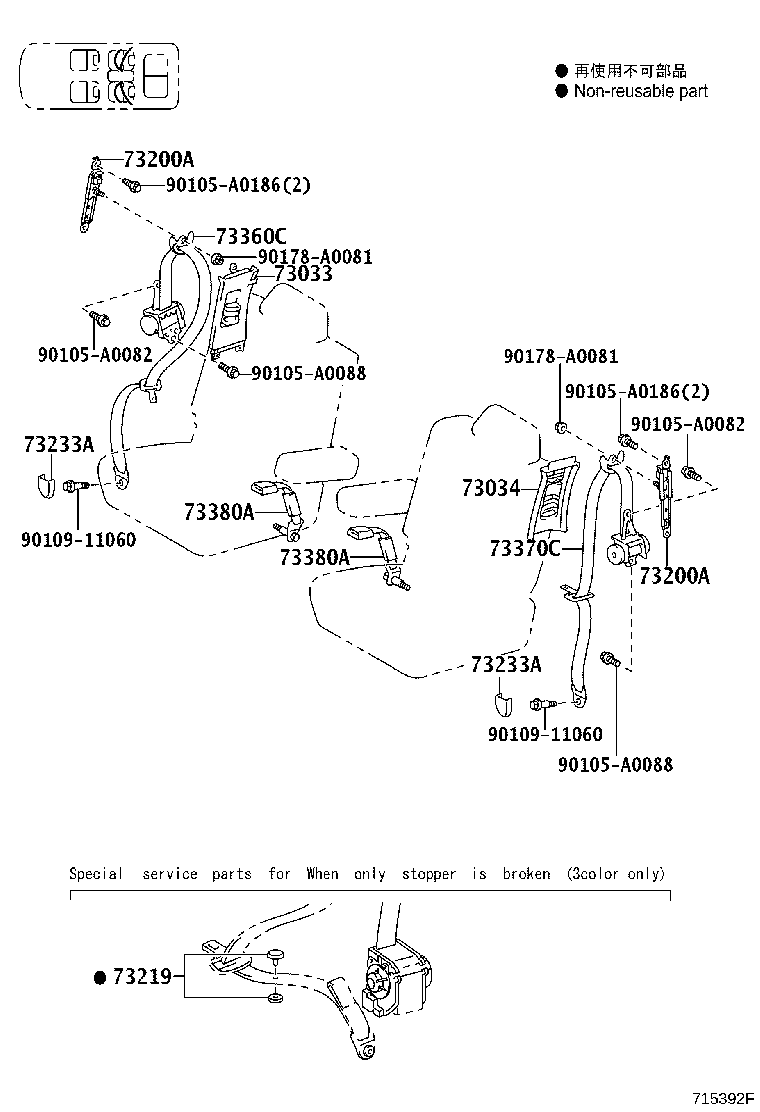

Figure 715391G 715391G 2008-11 → — Figure 715392F 715392F 2008-11 → — Figure 715393F 715393F 2008-11 → — Figure 715394E 715394E 2008-11 → —

Part groups

PNCDescription
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73033 Plate Sub-assy, Rear Shoulder Belt Anchor, RH
73034 Plate Sub-assy, Rear Shoulder Belt Anchor, LH
73060 Belt Assy, Rear NO.2 Seat Lap, Center W/Inner LH
73187A Guide, Rear Seat Shoulder Belt
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73233A Cover, Lap Belt Outer Anchor, Rear NO.1 Seat
73240 Belt Assy, Front Seat Inner, LH
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370B Belt Assy, Rear Seat, Outer
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73375A Clip, Rear Seat Belt Cover
73380A Belt Assy, Rear Seat, Inner
73383A Hook, RR Seat Belt
73390A Belt Assy, Rear Seat, Inner
73510A Belt Assy, Rear NO.2 Seat, 3 Point Type
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580A Belt Sub Assy, Rear NO.2 Seat, Inner
73590 Belt Assy, Rear NO.2 Seat, Inner LH
73670A Bracket Assy, Rear Seat Belt Outer Anchor, RH
73680A Bracket Assy, Rear Seat Belt Outer Anchor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
