Toyota Sequoia
2008-11 → 2016-09 · chassis USK6# · catalogue 842320 · General
Supported model
Data version 2017-03

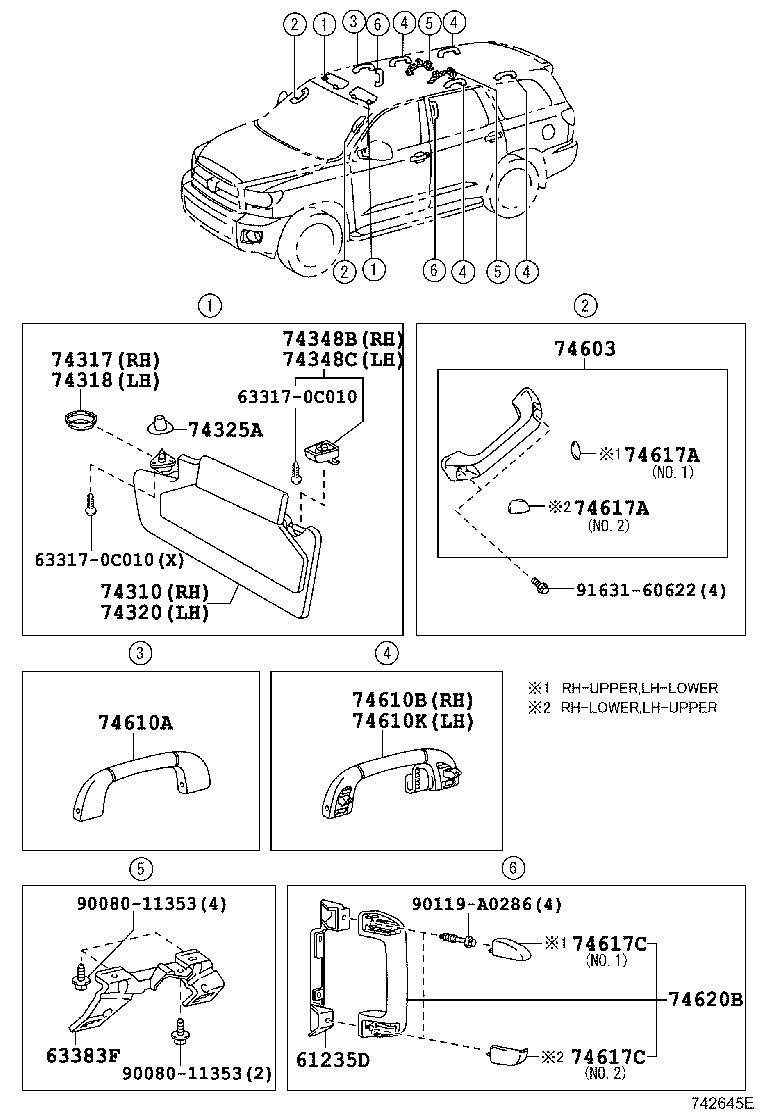

Armrest & Visor
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61235D | Bracket, Assist Grip |
| 63383F | Retainer, Roof Headlining Trim, RR |
| 74210 | Armrest Assy, Front, RH |
| 74220 | Armrest Assy, Front, LH |
| 74221A | Cover, Front Door Armrest, RH |
| 74222A | Cover, Front Door Armrest, LH |
| 74225 | Cap, Door Armrest, Rear RH |
| 74226 | Cap, Door Armrest, Rear LH |
| 74230 | Armrest Assy, Rear, RH |
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74240 | Armrest Assy, Rear, LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74317 | Cover, Visor Bracket, RH |
| 74318 | Cover, Visor Bracket, LH |
| 74320 | Visor Assy, LH |
| 74325A | Support, Front Visor, NO.1 |
| 74348B | Holder, Visor, RH |
| 74348C | Holder, Visor, LH |
| 74603 | Grip Sub-assy, Assist, Front |
| 74610A | Grip Sub-assy, Assist |
| 74610B | Grip Assy, Assist, NO.2 RH |
| 74610K | Grip Assy, Assist, NO.2 LH |
| 74617A | Plug, Assist Grip |
| 74617C | Plug, Assist Grip |
| 74620B | Grip Assy, Assist, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
