Toyota Sequoia

2008-11 → 2016-09 · chassis USK6# · catalogue 842320 · General

Supported model Data version 2017-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

19 part groups · 3 illustrations

Illustrations

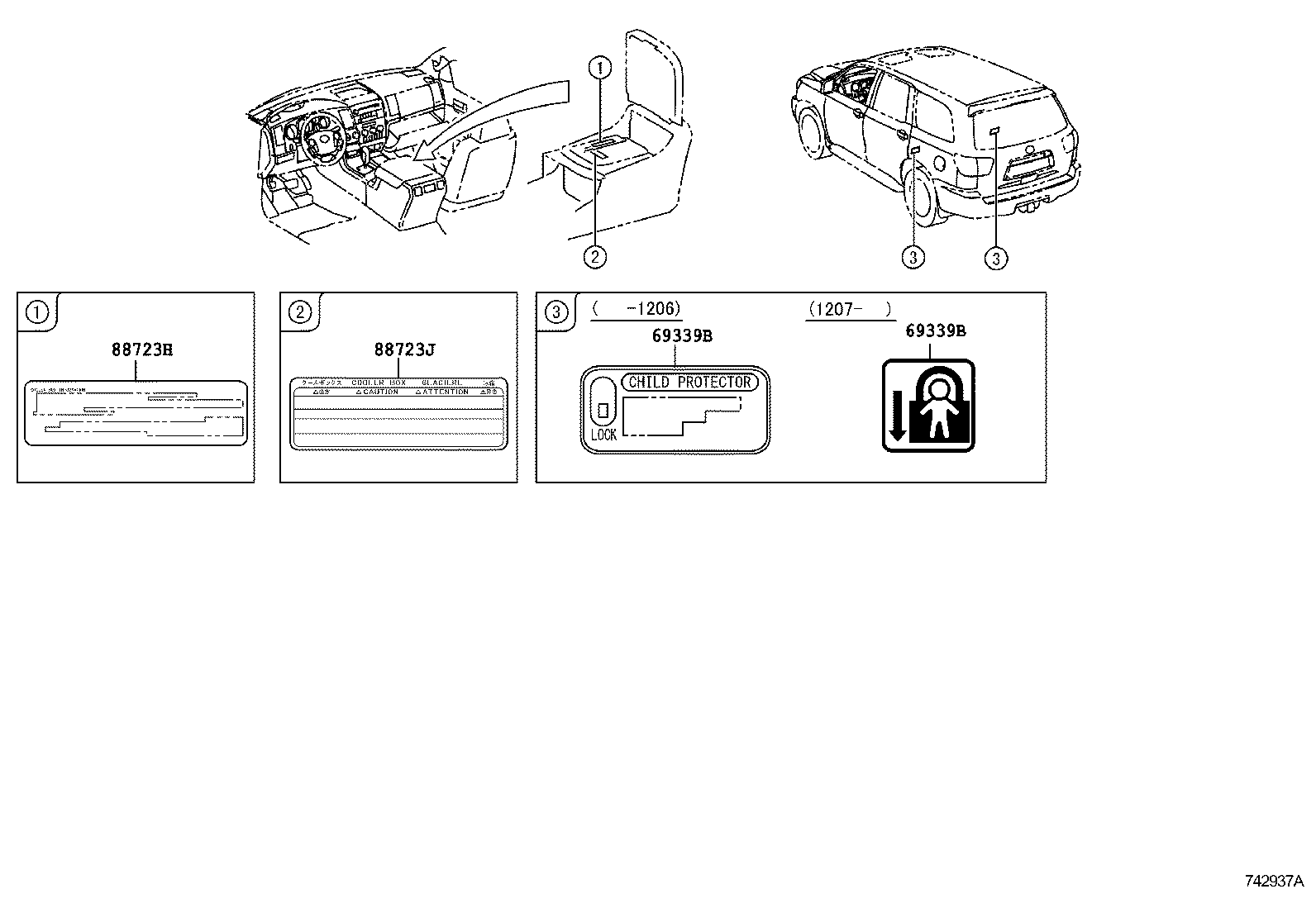

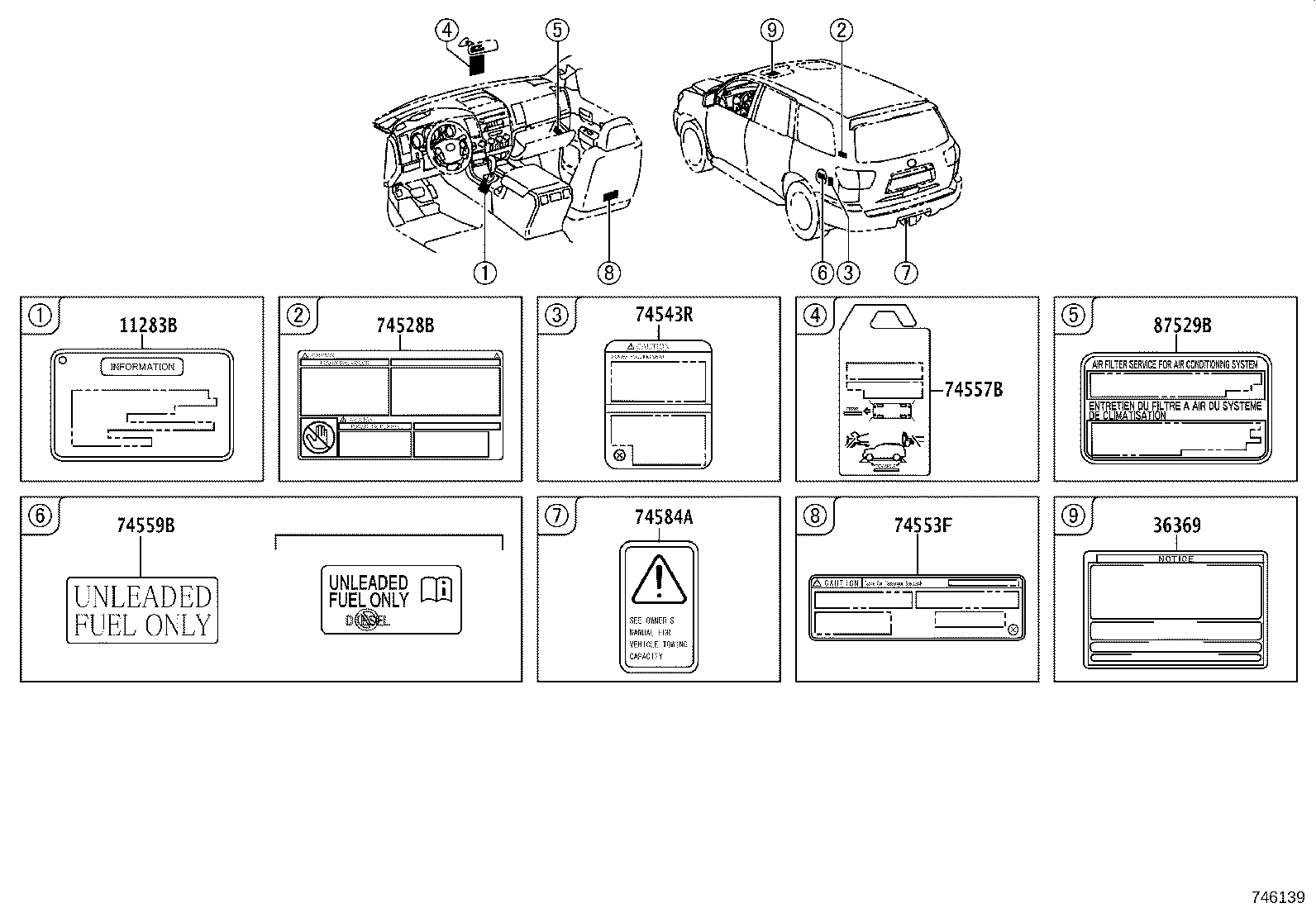

Figure 742628G 742628G 2008-11 → — Figure 746139 746139 2008-11 → — Figure 742937A 742937A 2008-11 → —

Part groups

PNCDescription
11283B Label, Leak Detection Pump Information
16448A Plate, Radiator Caution
36369 Label, Transfer Information
48969 Label, Jack UP Caution
69339B Plate, Child Protector Lock Caution
74515A Plate, Theft Warning
74528B Label, Back Door Caution
74543R Label, Rear Seat Caution
74553F Label, Front Seat Caution
74557B Label, Transport Hook Caution
74559B Label, Fuel Information
74561A Label, Fuel Consumption Information
74571 Plate, Brake Fluid Caution
74584A Label, Towing Caution
74596A Label, Side Airbag Caution
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
88723H Label, Cooler Service Caution
88723J Label, Cooler Service Caution, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
