Toyota Sequoia
2008-11 → 2016-09 · chassis USK6# · catalogue 842320 · General
Supported model
Data version 2017-03

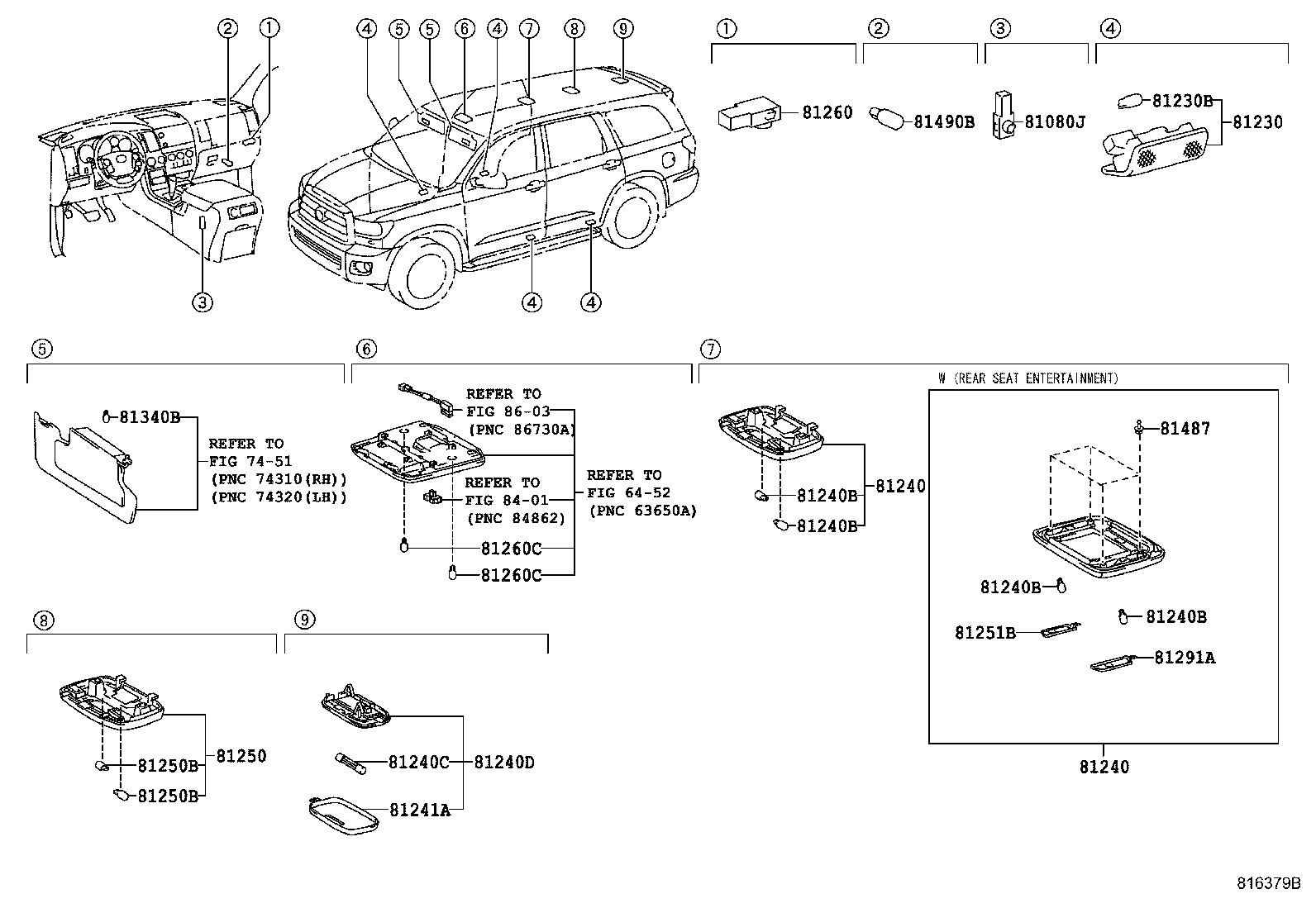

Interior Lamp
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81240C | Bulb |
| 81240D | Lamp Assy, Room, NO.2 |
| 81241A | Lens, Room Lamp, NO.2 |
| 81250 | Lamp Assy, Room, NO.2 |
| 81250B | Bulb, Room Lamp, NO.2 |
| 81251B | Lens, Rear Room Lamp, RH |
| 81260 | Lamp Assy, Glove Box |
| 81260B | Bulb(FOR GLOVE BOX) |
| 81260C | Bulb(FOR MAP LAMP) |
| 81291A | Lens, Rear Room Lamp, LH |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81487 | Retainer, Room Lamp |
| 81490B | Bulb (FOR FOOT LAMP) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
