Toyota Sequoia

2008-11 → 2016-09 · chassis USK6# · catalogue 842320 · General

Supported model Data version 2017-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

80 part groups · 12 illustrations

Illustrations

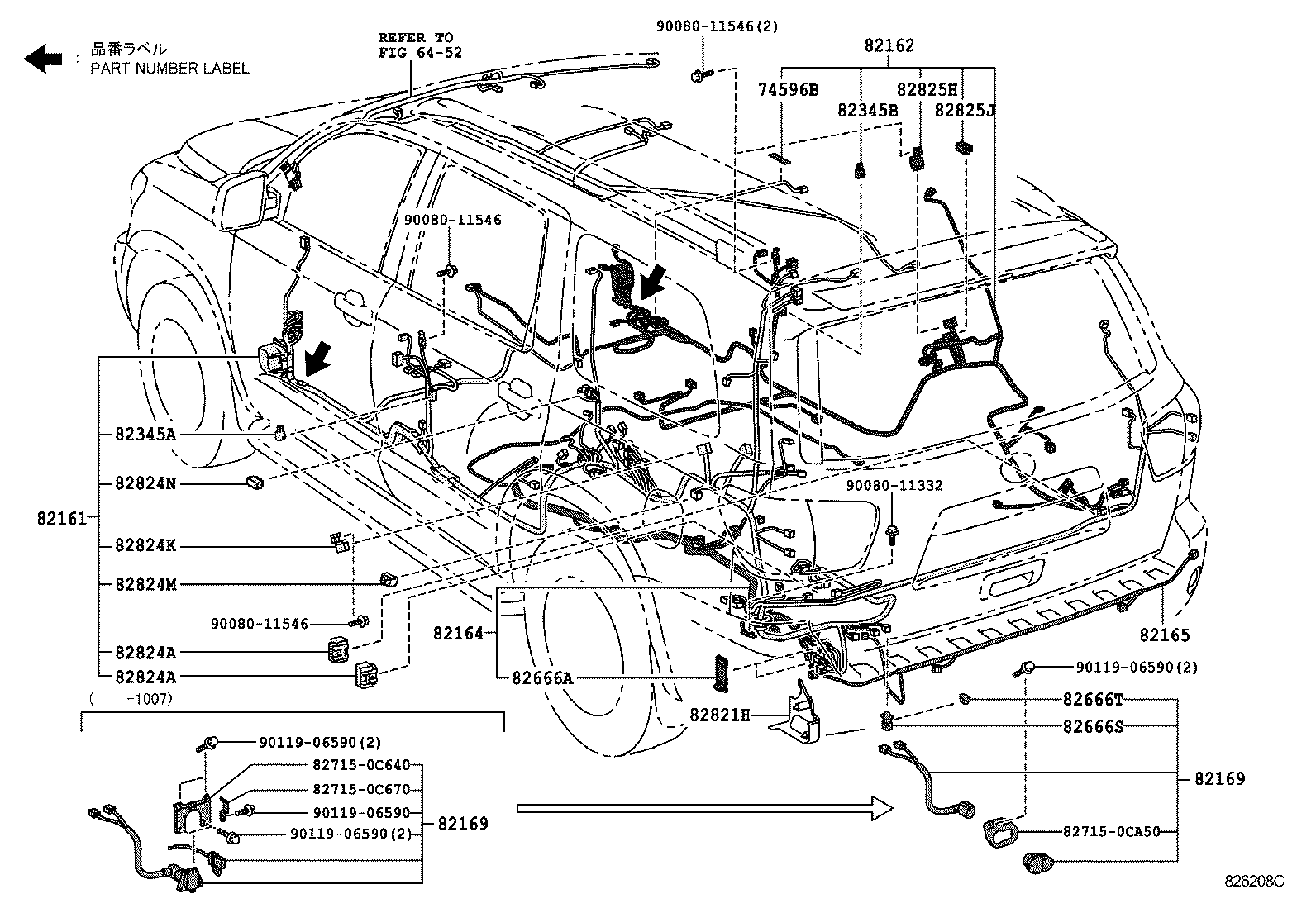

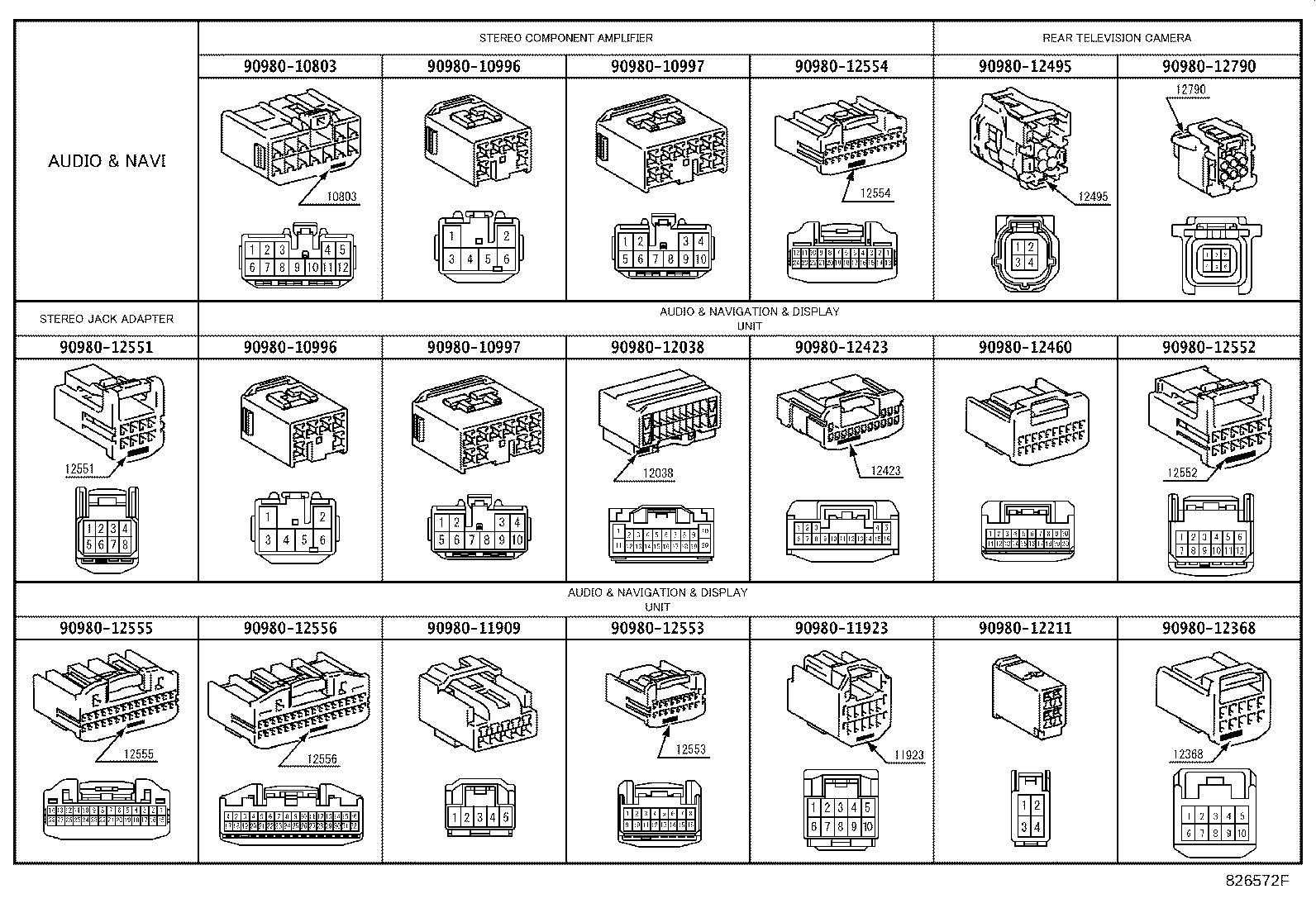

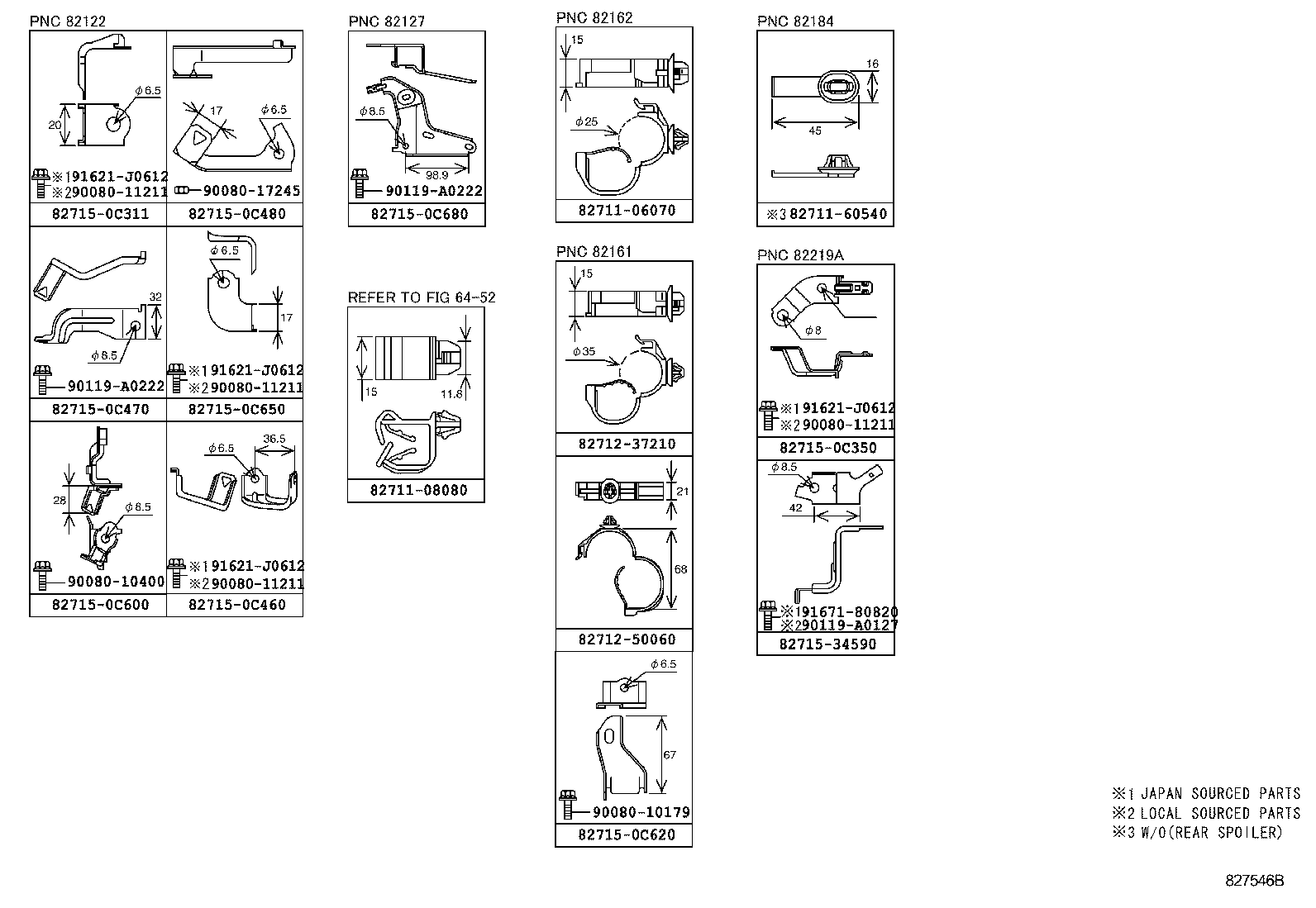

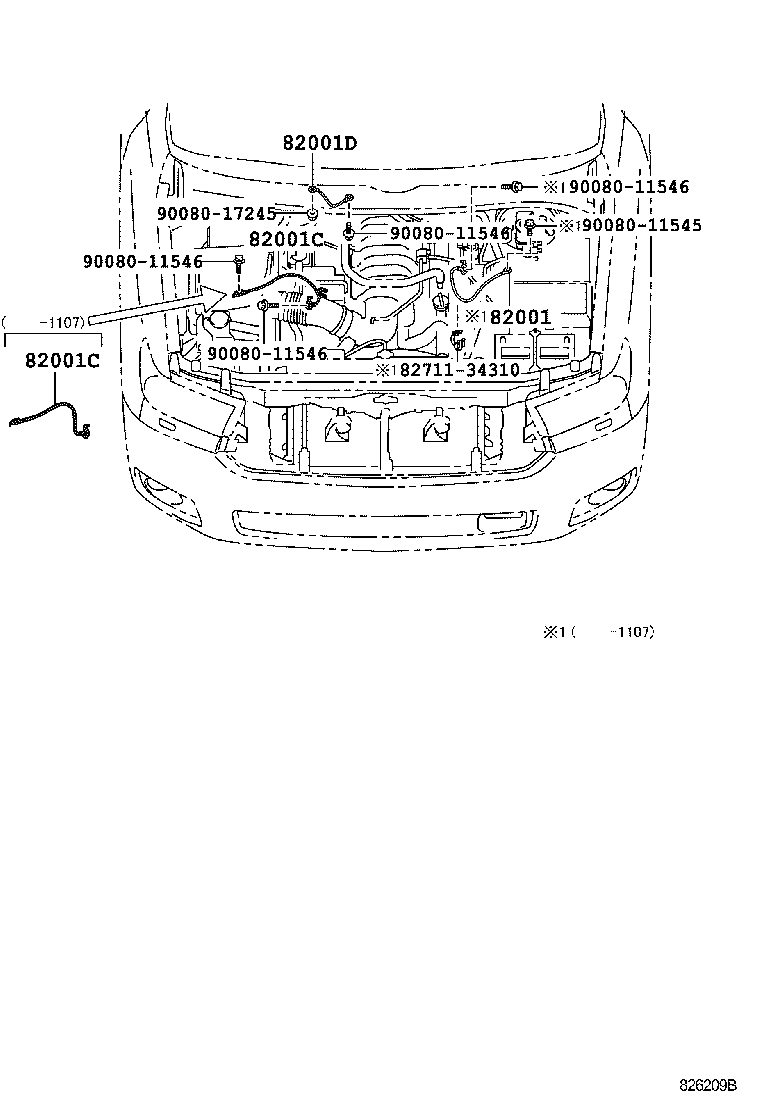

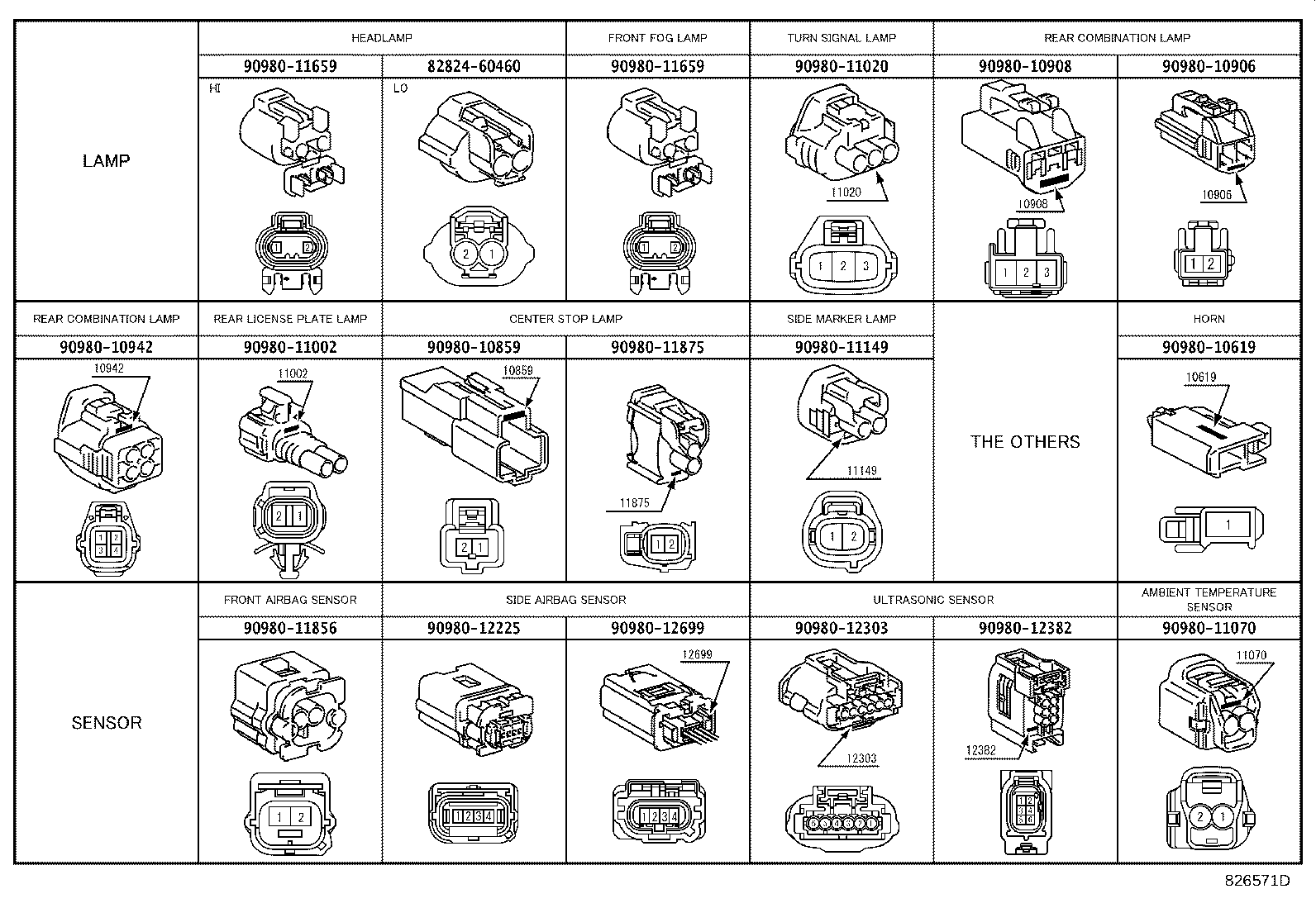

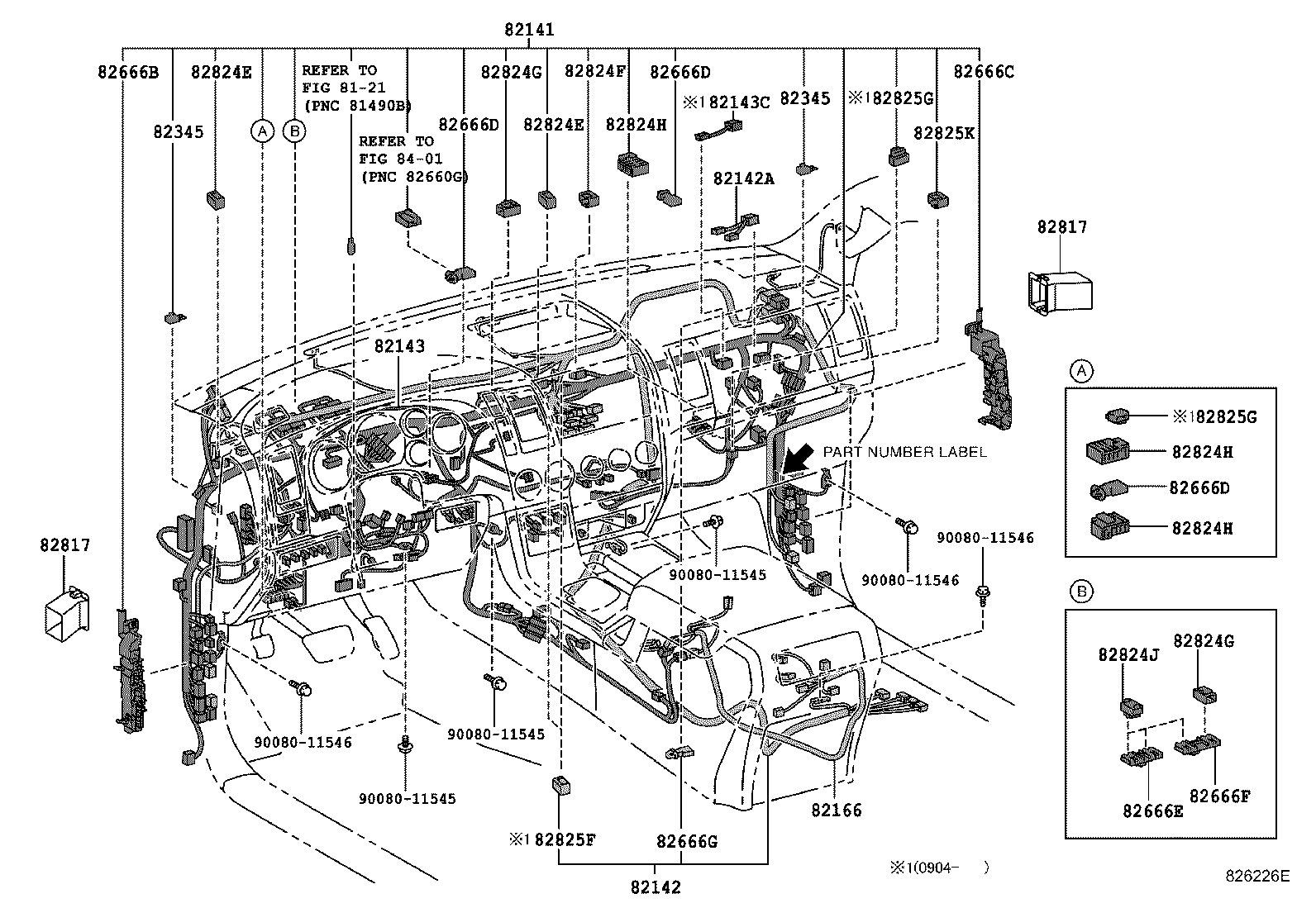

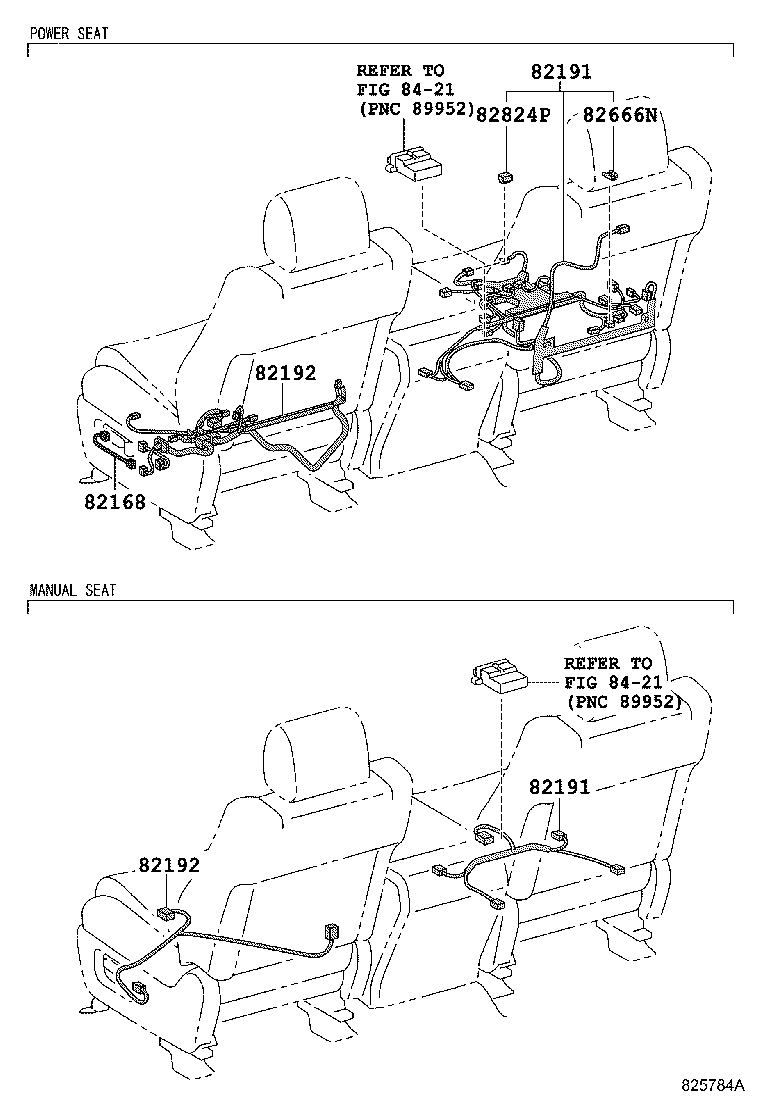

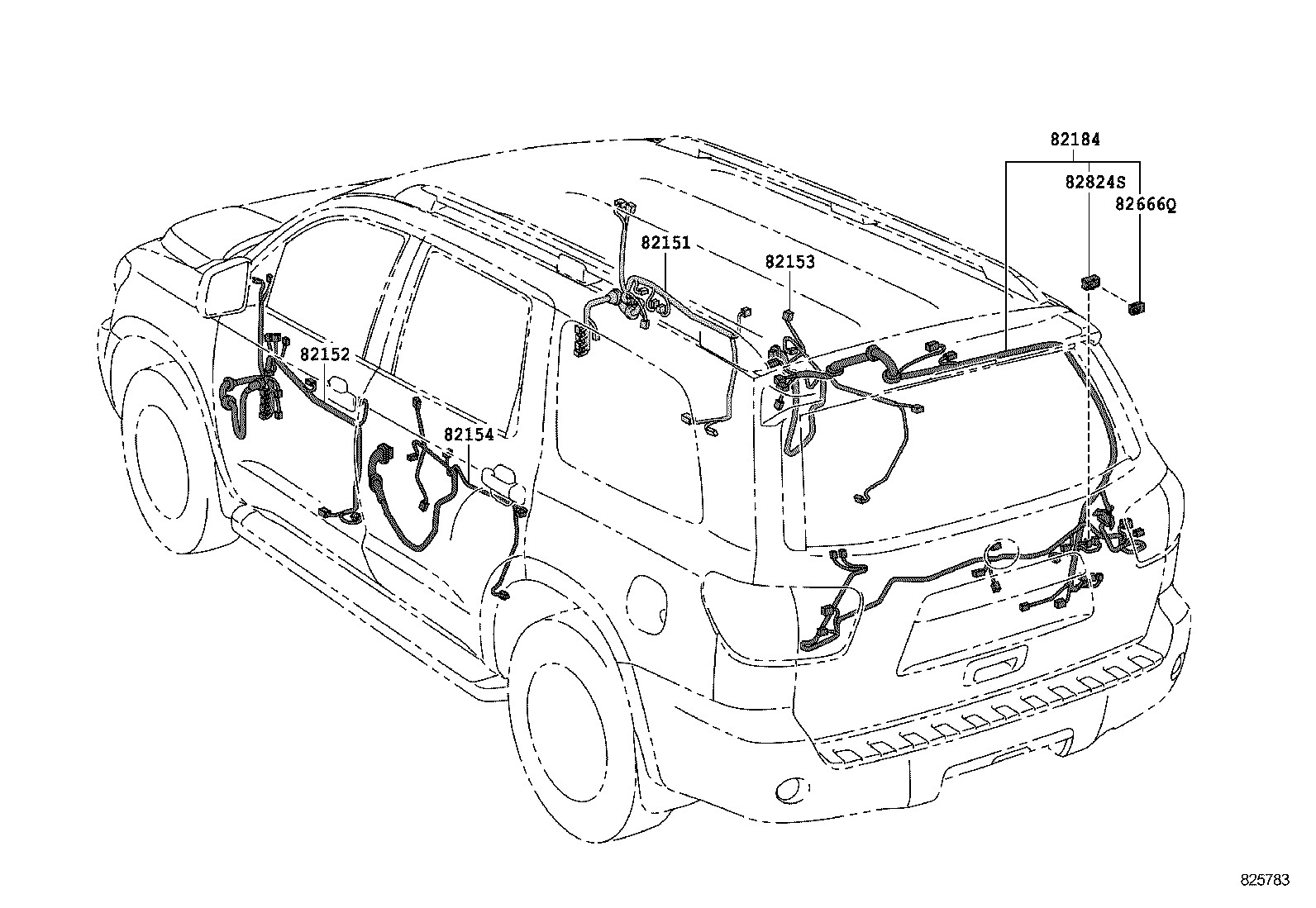

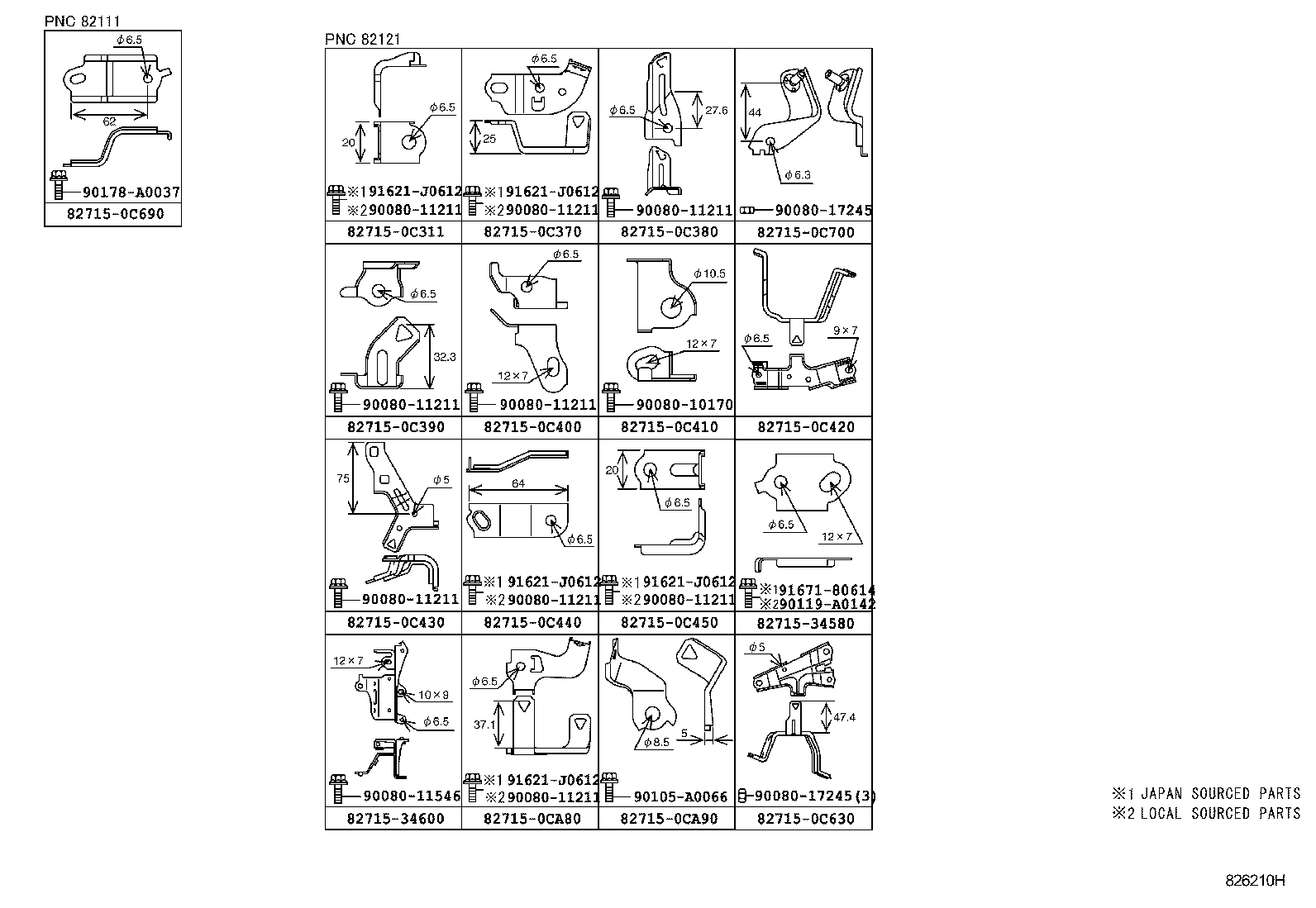

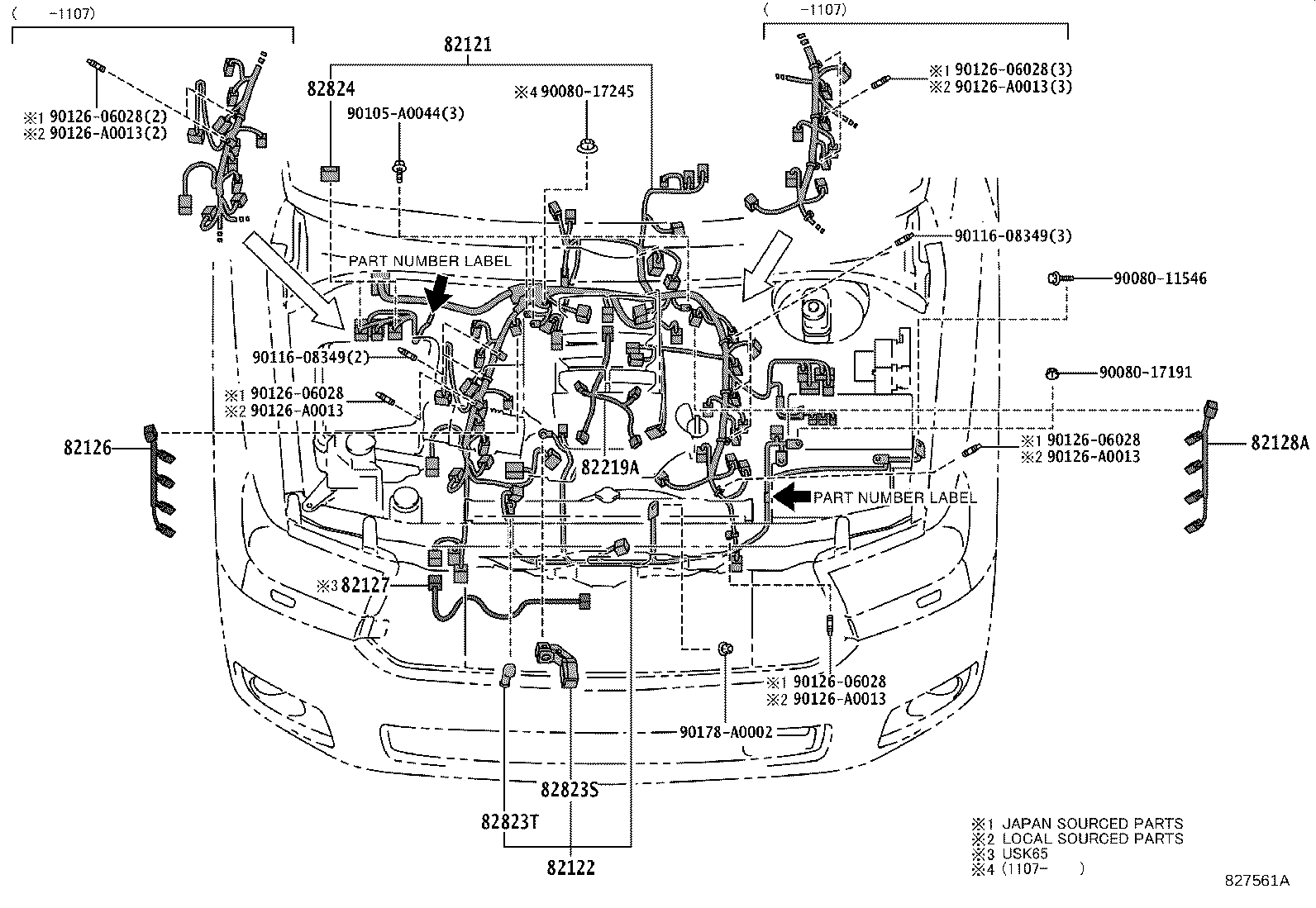

Figure 825782H 825782H 2008-11 → — Figure 827561A 827561A 2008-11 → — Figure 826226E 826226E 2008-11 → — Figure 825783 825783 2008-11 → — Figure 826208C 826208C 2008-11 → — Figure 825784A 825784A 2008-11 → — Figure 825785 825785 2008-11 → — Figure 826209B 826209B 2008-11 → — Figure 826210H 826210H 2008-11 → — Figure 827546B 827546B 2008-11 → — Figure 826571D 826571D 2008-11 → — Figure 826572F 826572F 2008-11 → —

Part groups

PNCDescription
74596B Label, Passenger Airbag Caution, NO.2
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82001D Cable, Bond, NO.3
82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82126 Wire, Engine
82127 Wire, Differential
82128A Wire, Engine, NO.8
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82143C Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82165 Wire, Frame, NO.2
82166 Wire, Console Box
82168 Wire, Seat, NO.2
82169 Wire Frame, NO.3
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82195 Wire, Rear Seat, RH NO.2
82196 Wire, Rear Seat, LH NO.2
82219A Wire, Sensor
82345 Diode
82345A Diode
82345B Diode
82345C Diode
82664A Block, Connector Holder
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82668A Cover, Connector Holder Block, Upper
82669A Cover, Connector Holder Block, Lower
82817 Protector, Wiring Harness, NO.1
82821H Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82824K Connector, Wiring Harness
82824M Connector, Wiring Harness
82824N Connector, Wiring Harness
82824P Connector, Wiring Harness
82824S Connector, Wiring Harness
82824T Connector, Wiring Harness
82824W Connector, Wiring Harness
82824X Connector, Wiring Harness
82825C Connector, Wiring Harness
82825D Connector, Wiring Harness
82825E Connector, Wiring Harness
82825F Connector, Wiring Harness
82825G Connector, Wiring Harness
82825H Connector, Wiring Harness
82825J Connector, Wiring Harness
82825K Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
