Toyota Sequoia

2008-11 → 2016-09 · chassis USK6# · catalogue 842320 · General

Supported model Data version 2017-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

14 part groups · 2 illustrations

Illustrations

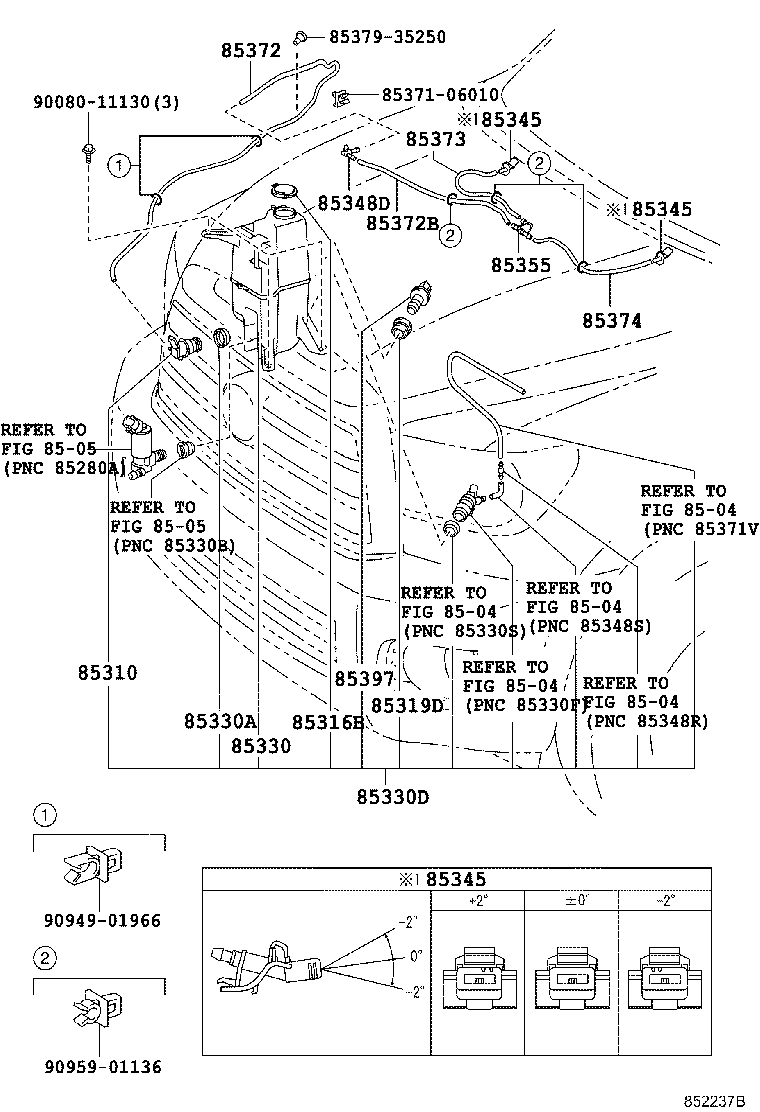

Figure 852236B 852236B 2008-11 → — Figure 852237B 852237B 2008-11 → —

Part groups

PNCDescription
85310 Motor And Pump Assy, Windshield Washer
85316B Cap, Washer, Inlet
85319D Packing, Front Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85330D Jar Assy, Washer
85345 Nozzle, Windshield Washer
85348D Joint, Windshield Washer Elbow, NO.1
85355 Valve, Windshield Washer Hose
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85374 Hose, Windshield Washer (FROM NOZZLE TO NOZZLE)
85397 Switch Assy,Level Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
