Toyota Sequoia
2008-11 → 2016-09 · chassis USK6# · catalogue 842320 · General
Supported model
Data version 2017-03

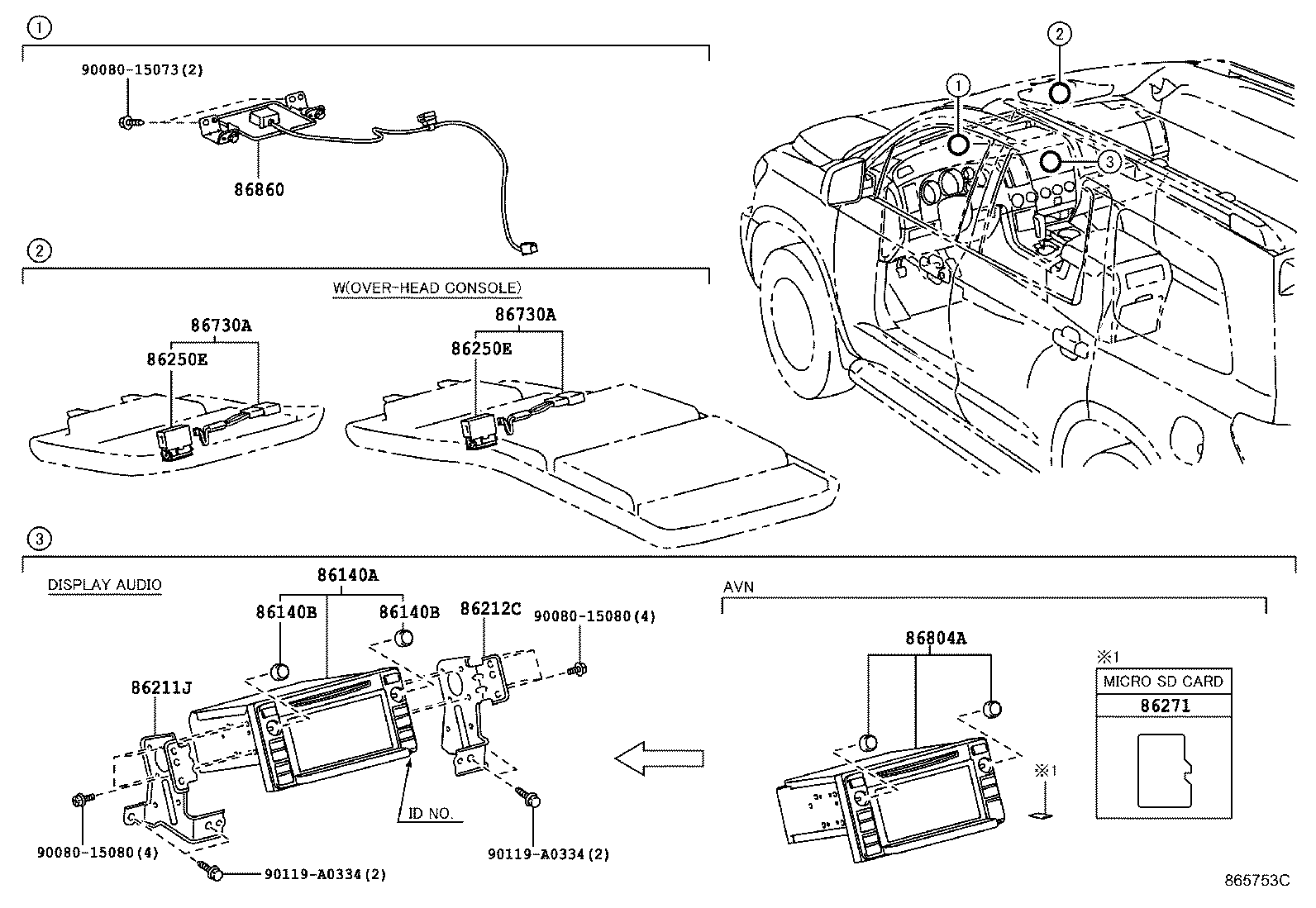

Navigation & Front Monitor Display
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86140A | Receiver Assy, Radio & Display |
| 86140B | Knob, Radio & Display Receiver Switch |
| 86211J | Bracket, Radio Receiver, NO.1 |
| 86212C | Bracket, Radio Receiver, NO.2 |
| 86250E | Microphone Assy, Amplifier |
| 86271 | Disc, Disc Player |
| 86271L | Hard Disc |
| 86730A | Microphone Assy, Telephone |
| 86804A | Sub-assy, Navigation Computer |
| 86860 | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
