Toyota Mega Cruiser

1996-10 → 2001-10 · chassis BXD20 · catalogue 851310 · General

Discontinued model Data version 2002-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

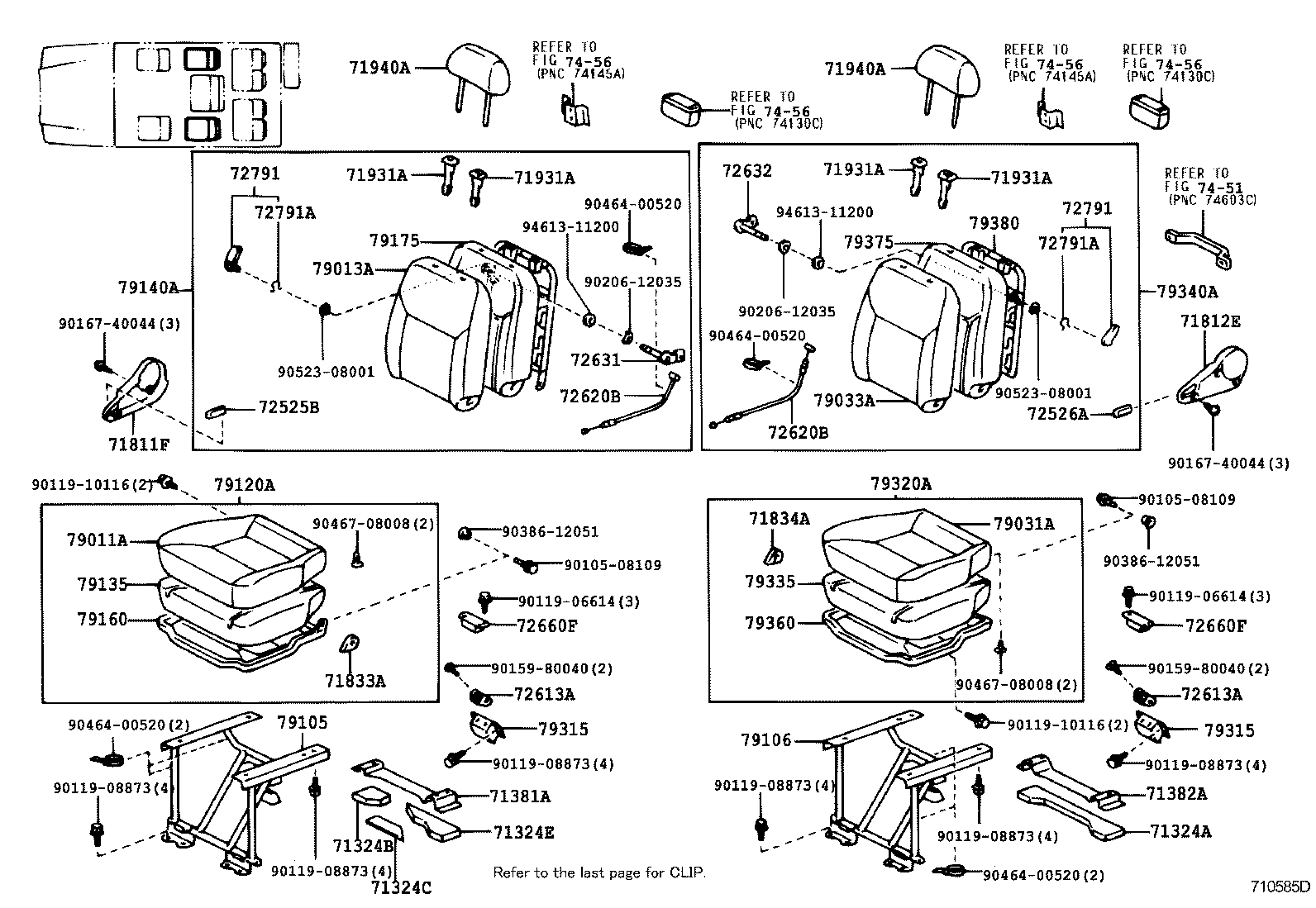

45 parts on this figure

Part number	Description	Fitment	Price
71324A — Cushion, Rear Seat
71324-65020	Cushion, Rear Seat 1996-12 → —	BXD20 HRF	—
71324B — Cushion, Rear Seat
71324-65030	Cushion, Rear Seat 1996-12 → —	BXD20 HRF	—
71324C — Cushion, Front Seat
71324-65040	Cushion, Front Seat 1996-12 → —	BXD20 HRF	—
71324E — Cushion, Rear Seat, LH
71324-65050	Cushion, Rear Seat, LH 1996-12 → —	BXD20 HRF	—
71381A — Bracket, Rear Seat Cushion Set, RH
71381-65040	Bracket, Rear Seat Cushion Set, RH 1996-12 → —	BXD20 HRF	—
71382A — Bracket, Rear Seat Cushion Set, LH
71382-65020	Bracket, Rear Seat Cushion Set, LH 1996-12 → —	BXD20 HRF	—
71811F — Cover, Reclining Adjuster, RH
71811-95J00-B0 note	Cover, Reclining Adjuster, RH 1996-10 → —	BXD20	—
71812E — Cover, Reclining Adjuster, LH
71812-95J00-B0 note	Cover, Reclining Adjuster, LH 1996-10 → —	BXD20	—
71833A — Cover, Rear Seat Reclining, NO.1 RH
71831-95J00-B0 note	Cover, Rear Seat Reclining, NO.1 RH 1996-10 → —	BXD20	—
71834A — Cover, Rear Seat Reclining, NO.1 LH
71832-95J01-B0 note	Cover, Rear Seat Reclining, NO.1 LH 1996-10 → —	BXD20	—
71931A — Support, Rear Seat Headrest
71930-26010-B0 note	Support, Rear Seat Headrest 1996-10 → —	BXD20	—
71931-26010-B0 note	Support, Rear Seat Headrest 1996-10 → —	BXD20	—
71940A — Headrest Assy, Rear Seat
71910-65010-B0 note	Headrest Assy, Rear Seat 1996-10 → —	BXD20	—
72525B — Handle, Reclining Adjuster Release, RH
72525-95J01-B0 note	Handle, Reclining Adjuster Release, RH 1996-12 → —	BXD20	—
72526A — Handle, Reclining Adjuster Release, LH
72525-95J01-B0 note	Handle, Reclining Adjuster Release, LH 1996-10 → —	BXD20	—
72613A — Striker, Front Seat Lock
51940-89101	Striker, Front Seat Lock 1996-12 → —	BXD20 HRF	—
72620B — Cable Assy, Rear NO.1 Seat Lock
51950-65020	Cable Assy, Rear NO.1 Seat Lock 1996-12 → —	BXD20 HRF	—
72631 — Plate, Rear Seatback Lock, RH
72607-65010	Plate, Rear Seatback Lock, RH 1996-12 → —	BXD20 HRF	—
72632 — Plate, Rear Seatback Lock, LH
72608-65010	Plate, Rear Seatback Lock, LH 1996-12 → —	BXD20 HRF	—
72660F — Lock Assy, Rear Seat, LH
51930-89101	Lock Assy, Rear Seat, LH 1996-12 → —	BXD20 HRF	—
72791 — Lever, Lumbar Support
72791-89102-B0 note	Lever, Lumbar Support 1996-12 → —	BXD20 HRF	—
72791A — Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER)
90520-01274	Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER) 1996-12 → —	BXD20 HRF	—
79011A — Cover Sub-assy, NO.1 Seat Cushion
71075-65030-B0 note	Cover Sub-assy, NO.1 Seat Cushion 1996-10 → —	BXD20	—
79013A — Cover Sub-assy, NO.1 Seatback
71077-65020-B0 note	Cover Sub-assy, NO.1 Seatback 1996-10 → —	BXD20	—
79031A — Cover Sub-assy, NO.3 Seat Cushion
71076-65010-B0 note	Cover Sub-assy, NO.3 Seat Cushion 1996-10 → —	BXD20	—
79033A — Cover Sub-assy, NO.3 Seatback
71078-65010-B0 note	Cover Sub-assy, NO.3 Seatback 1996-10 → —	BXD20	—
79105 — Leg Sub-assy, NO.1 Seat, RH
79305-65010	Leg Sub-assy, NO.1 Seat, RH 1996-10 → —	BXD20 SRF	—
79305-65030	Leg Sub-assy, NO.1 Seat, RH 1996-12 → —	BXD20 HRF	—
79106 — Leg Sub Assy, NO.1 Seat, LH
79306-65010	Leg Sub Assy, NO.1 Seat, LH 1996-10 → —	BXD20 SRF	—
79306-65040	Leg Sub Assy, NO.1 Seat, LH 1996-12 → —	BXD20 HRF	—
79120A — Cushion Assy, NO.1 Seat
71460-65030-B0 note	Cushion Assy, NO.1 Seat 1996-10 → —	BXD20	—
79135 — Pad, NO.1 Seat Cushion
71511-95J15	Pad, NO.1 Seat Cushion 1996-10 → —	BXD20	—
79140A — Back Assy, NO.1 Seat
71401-65030-B0 note	Back Assy, NO.1 Seat 1996-10 → —	BXD20 SRF	—
71401-65040-B0 note	Back Assy, NO.1 Seat 1996-12 → —	BXD20 HRF	—
79160 — Spring Assy, NO.1 Seat Cushion
71015-65020	Spring Assy, NO.1 Seat Cushion 1996-10 → —	BXD20	—
79175 — Pad, NO.1 Seatback
71551-95J20	Pad, NO.1 Seatback 1996-10 → —	BXD20	—
79315 — Bracket, NO.3 Seat Lock
79315-65020	Bracket, NO.3 Seat Lock 1996-12 → —	BXD20 HRF	—
79320A — Cushion Assy, NO.3 Seat
71470-65010-B0 note	Cushion Assy, NO.3 Seat 1996-10 → —	BXD20	—
79335 — Pad, NO.3 Seat Cushion
71512-95J06	Pad, NO.3 Seat Cushion 1996-10 → —	BXD20	—
79340A — Back Assy, NO.3 Seat
71402-65040-B0 note	Back Assy, NO.3 Seat 1996-10 → —	BXD20 SRF	—
71402-65050-B0 note	Back Assy, NO.3 Seat 1996-12 → —	BXD20 HRF	—
79360 — Spring Assy, NO.3 Seat Cushion
71016-65010	Spring Assy, NO.3 Seat Cushion 1996-10 → —	BXD20	—
79375 — Pad, NO.3 Seatback
71551-95J20	Pad, NO.3 Seatback 1996-10 → —	BXD20	—
79380 — Spring Assy, NO.3 Seatback
71018-65010	Spring Assy, NO.3 Seatback 1996-10 → —	BXD20 SRF	—
71018-65030	Spring Assy, NO.3 Seatback 1996-12 → —	BXD20 HRF	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
