Toyota Mega Cruiser
1996-10 → 2001-10 · chassis BXD20 · catalogue 851310 · General
Discontinued model
Data version 2002-04

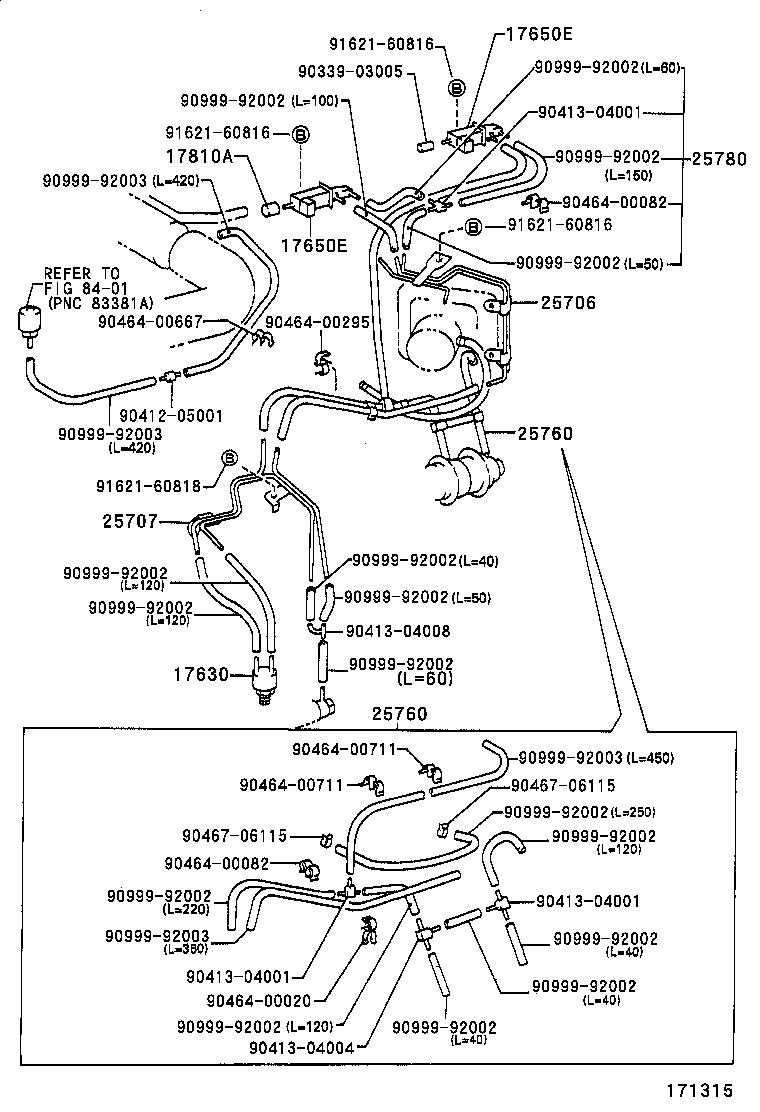

Vacuum Piping
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17630 | Valve Assy, Air Control |
| 17650E | Valve, Vacuum Switching |
| 17810A | Filter Assy, Air |
| 25706 | Pipe Sub-assy, Vacuum Transmitting, NO.1 |
| 25707 | Pipe Sub-assy, Vacuum Transmitting, NO.2 |
| 25760 | Hose Assy, Vacuum Transmitting |
| 25780 | Hose Assy, Vacuum Transmitting, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
