Rear Hub Reduction

44 part groups · 6 illustrations

Illustrations

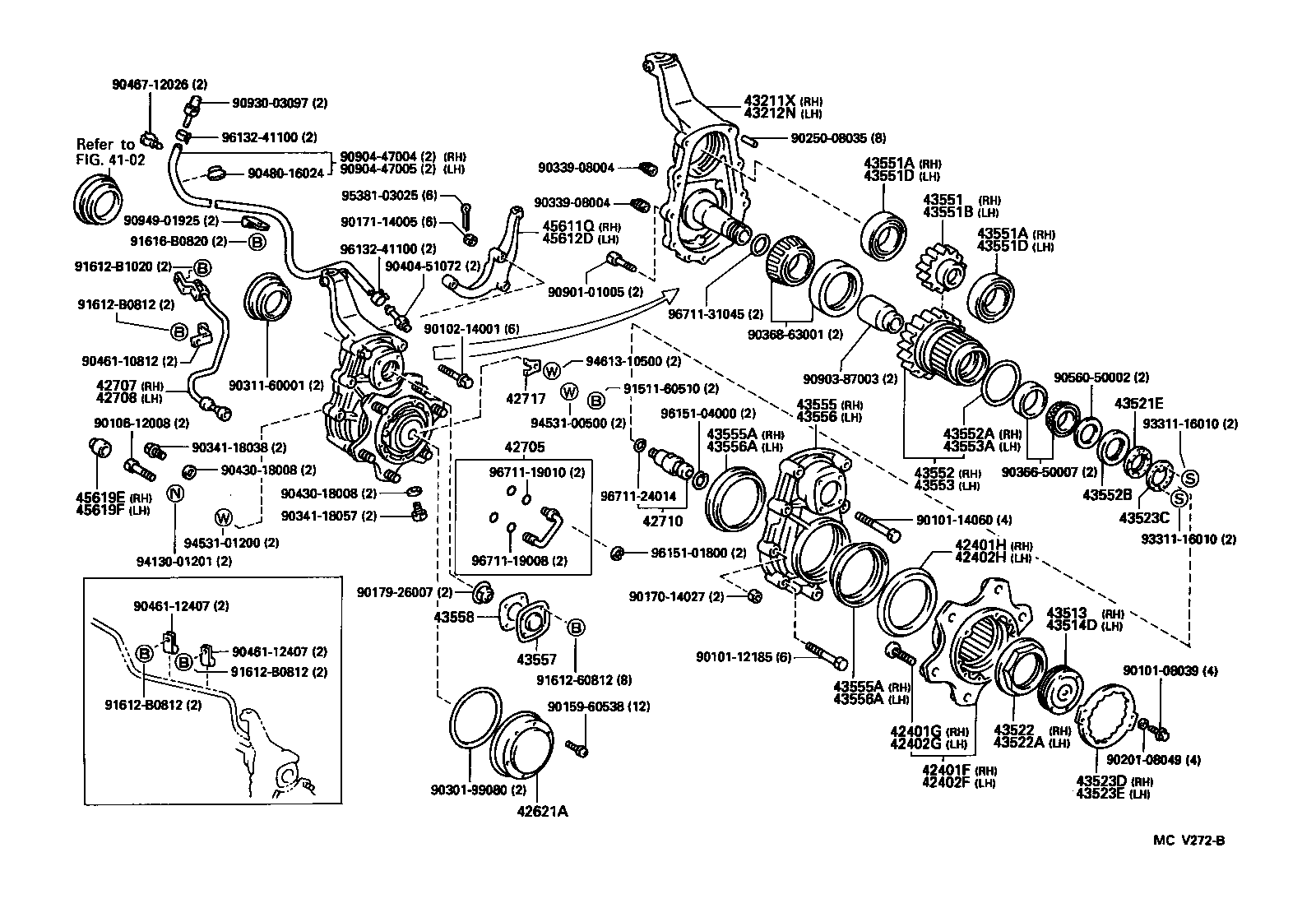

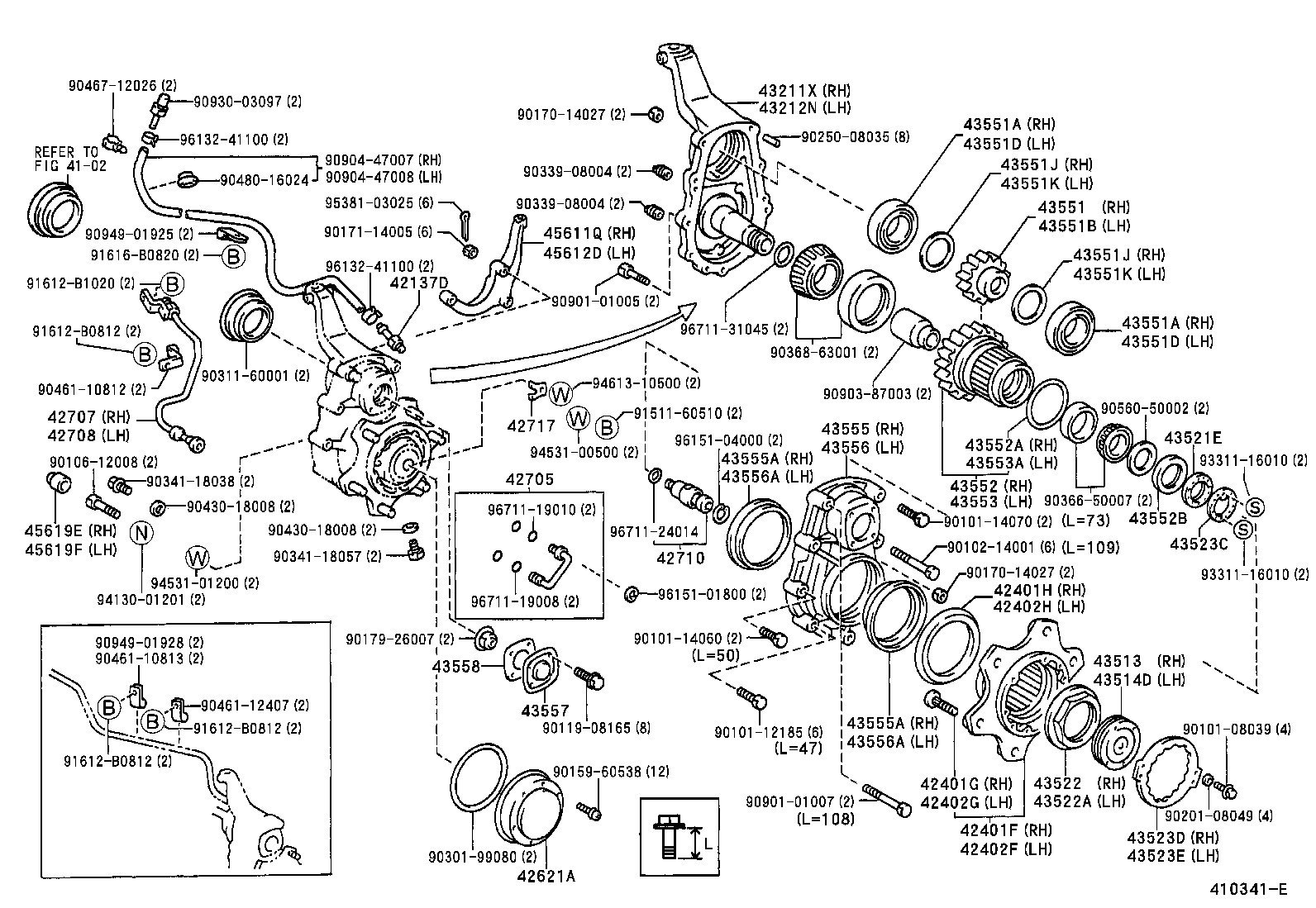

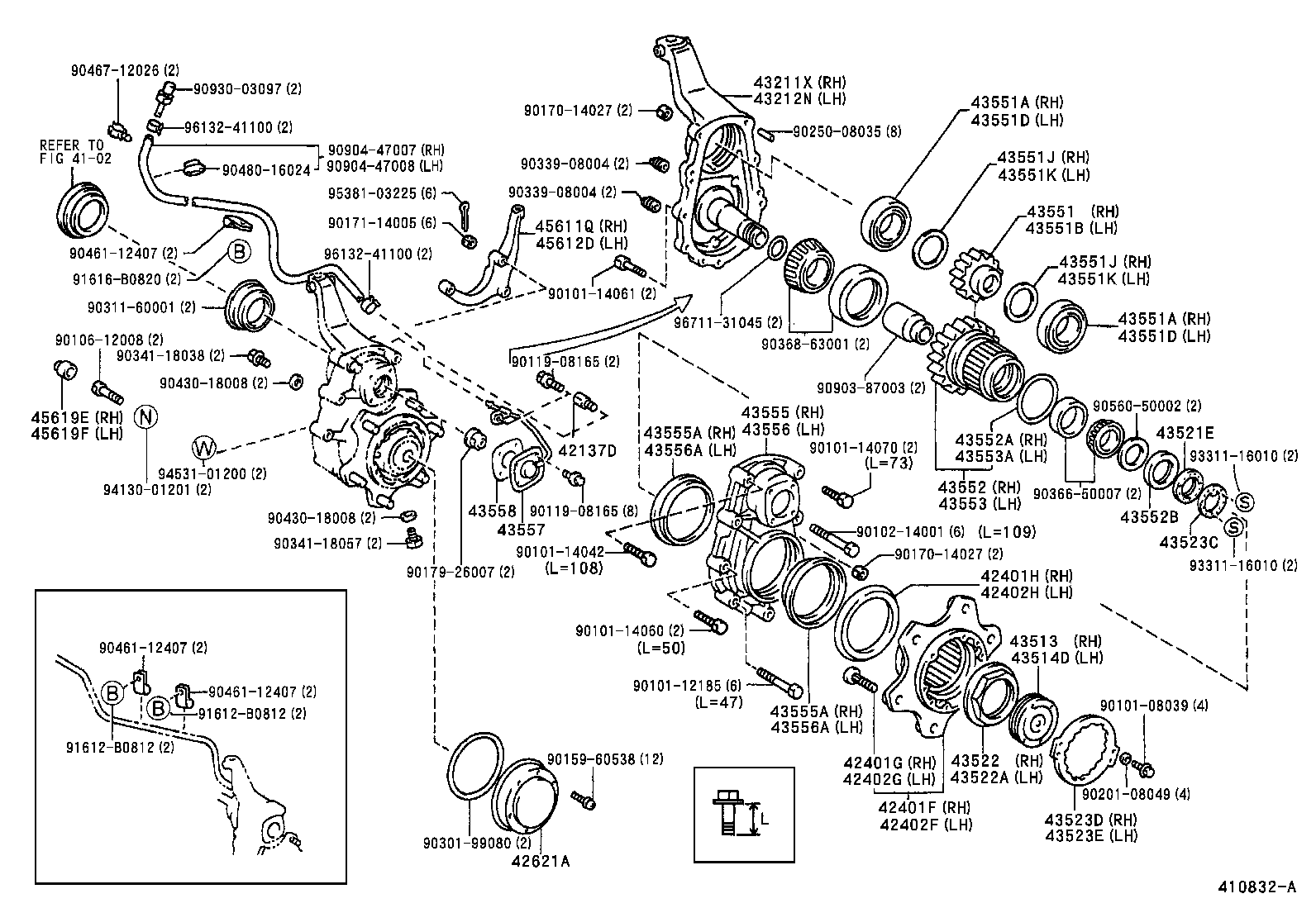

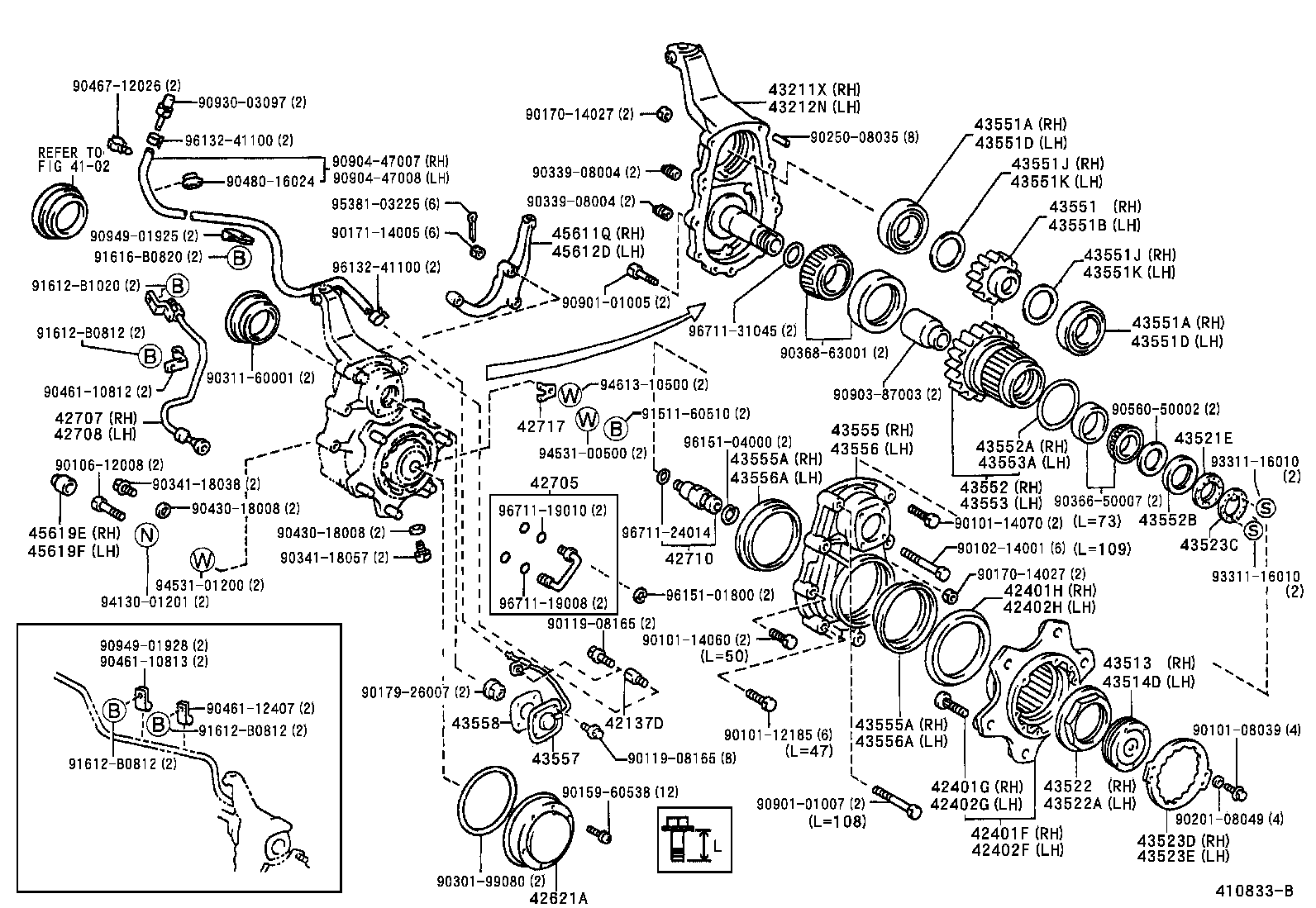

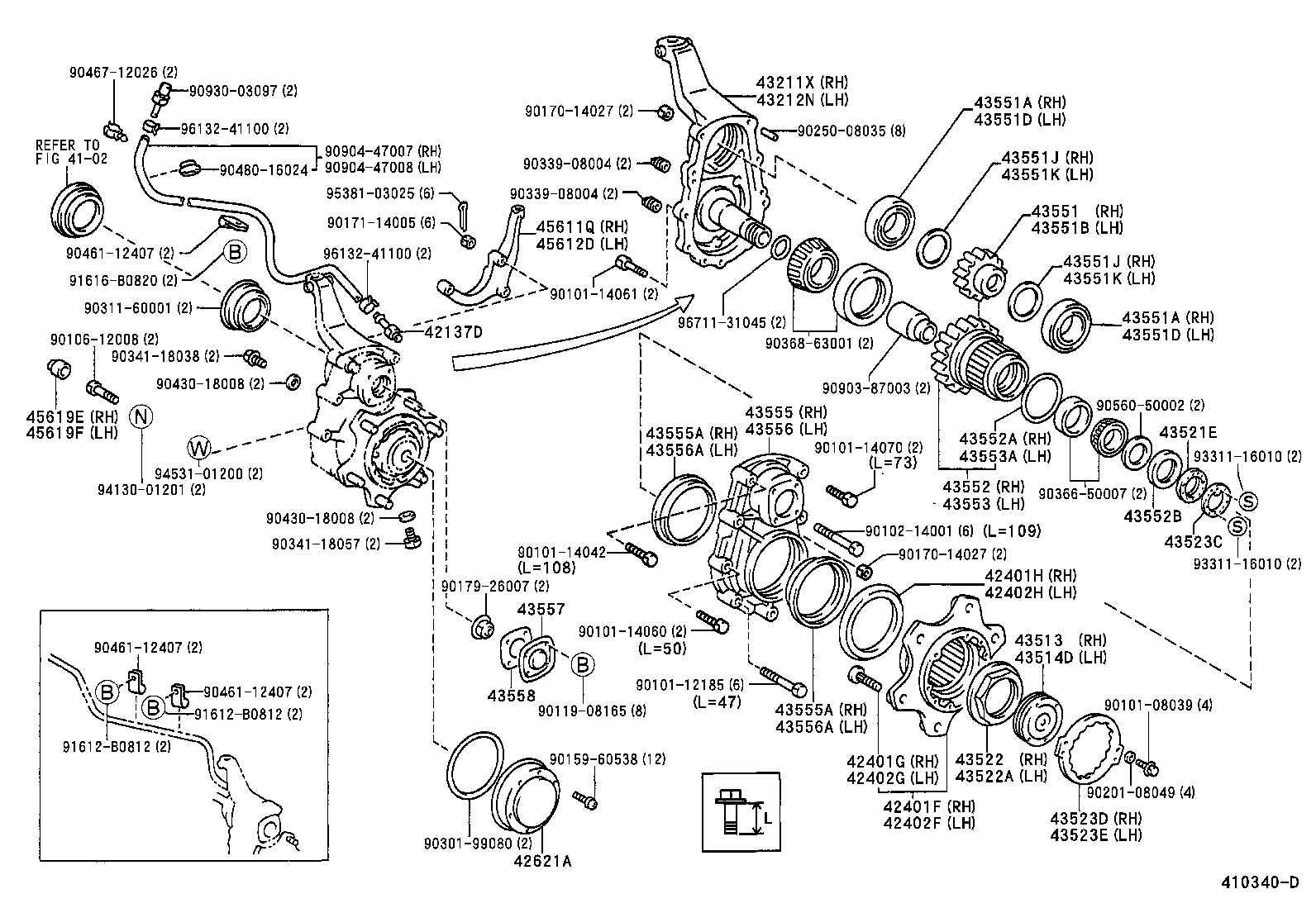

Figure MCV271B MCV271B 1996-10 → 1997-01 Figure MCV272B MCV272B 1996-10 → 1997-01 Figure 410340D 410340D 1997-01 → 1998-01 Figure 410341E 410341E 1997-01 → 1998-01 Figure 410833B 410833B 1998-01 → — Figure 410832A 410832A 1998-01 → —

Part groups

PNCDescription
42137D Collar, Rear Axle Housing Side
42401F Hub Sub-assy, Rear Axle, RH
42401G Bolt, Hub(FOR REAR AXLE HUB RH)
42401H Seal, Dust(FOR REAR AXLE HUB RH)
42402F Hub Sub-assy, Rear Axle, LH
42402G Bolt, Hub(FOR REAR AXLE HUB LH)
42402H Seal, Dust(FOR REAR AXLE HUB LH)
42621A Cap, Wheel(FOR REAR AXLE)
42705 Tube Sub-assy, Tire Air Control, NO.1
42707 Tube Sub-assy, Tire Air Control, NO.2 RH
42708 Tube Sub-assy, Tire Air Control, NO.2 LH
42710 Seal Assy, Tire Air Control
42717 Stopper, Tire Air Control Seal Shaft
43211X Knuckle, Rear Steering, RH
43212N Knuckle, Rear Steering, LH
43513 Cap, Wheel Bearing, RH(FOR REAR AXLE)
43514D Cap, Wheel Bearing, LH(FOR REAR AXLE)
43521E Nut, Rear Axle Bearing Lock
43522 Nut, Hub Set(FOR REAR AXLE RH)
43522A Nut, Hub Set(FOR REAR AXLE LH)
43523C Washer, Hub Set Claw(FOR REAR AXLE)
43523D Washer, Hub Set Claw(FOR REAR AXLE RH)
43523E Washer, Hub Set Claw(FOR REAR AXLE LH)
43551 Gear, Rear Hub Reduction Drive, RH
43551A Bearing, Roller(FOR REAR HUB REDUCTION RH)
43551B Gear, Rear Hub Reduction Drive, LH
43551D Bearing, Roller(FOR REAR HUB REDUCTION LH)
43551J Shim(FOR REAR HUB REDUCTION DRIVE GEAR RH)
43551K Shim(FOR REAR HUB REDUCTION DRIVE GEAR LH)
43552 Gear, Rear Hub Reduction Driven, RH
43552A Ring, O(FOR REAR HUB REDUCTION DRIVE GEAR RH)
43552B Seal, Oil(FOR REAR HUB REDUCTION DRIVEN GEAR)
43553 Gear, Rear Hub Reduction Driven, LH
43553A Ring, O(FOR REAR HUB REDUCTION DRIVEN GEAR LH)
43555 Cover, Rear Hub Reduction Gear, RH
43555A Seal, Oil(FOR REAR HUB REDUCTION GEAR COVER RH)
43556 Cover, Rear Hub Reduction Gear, LH
43556A Seal, Oil(FOR REAR HUB REDUCTION GEAR COVER LH)
43557 Cover, Rear Hub Reduction Drive Shaft
43558 Gasket, Rear Hub Reduction Drive Shaft End
45611Q Arm, Rear Steering Knuckle, RH
45612D Arm, Rear Steering Knuckle, LH
45619E Cover, Knuckle Stopper, Rear RH
45619F Cover, Knuckle Stopper, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
