Toyota Mega Cruiser

1996-10 → 2001-10 · chassis BXD20 · catalogue 851310 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

23 part groups · 3 illustrations

Illustrations

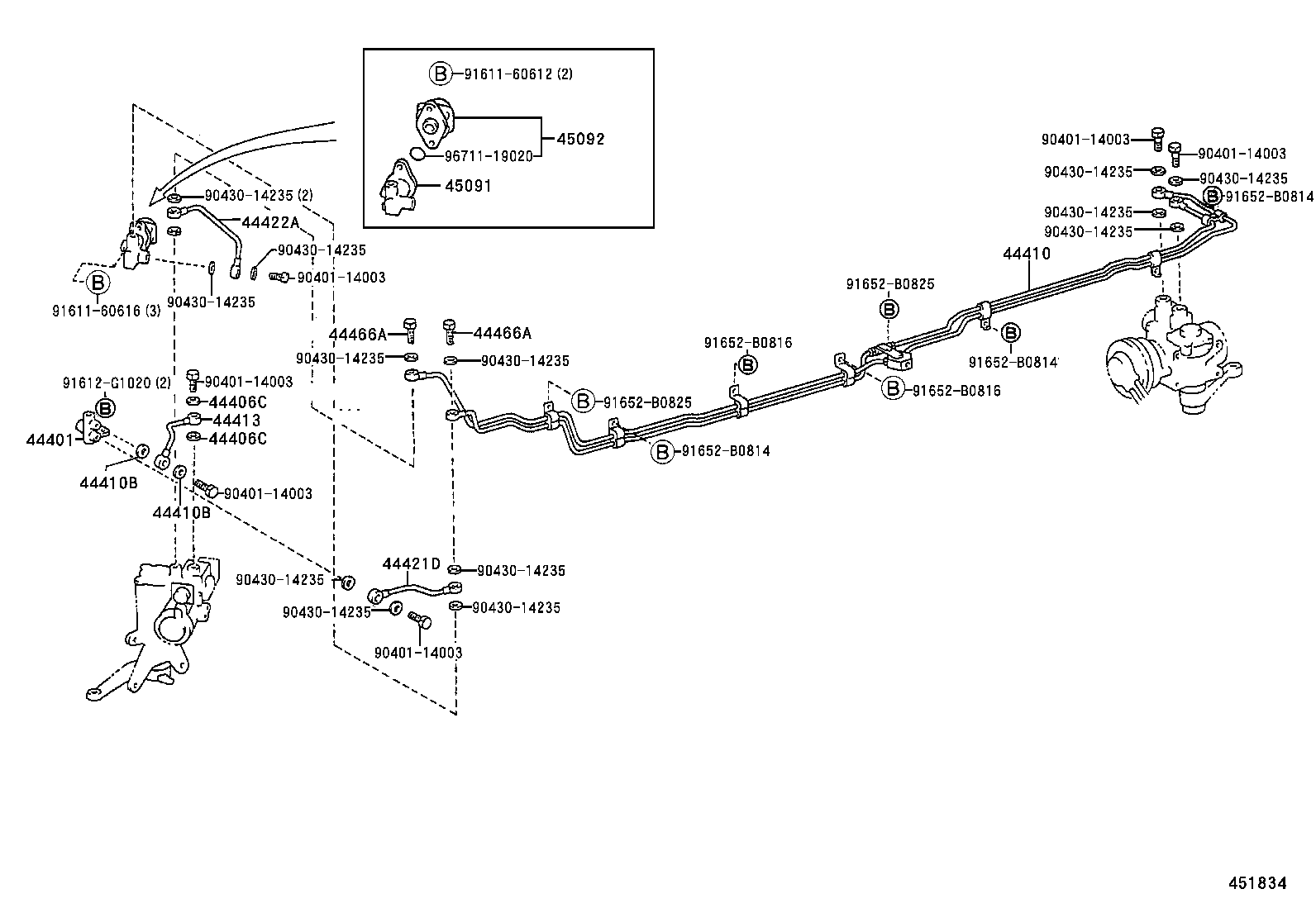

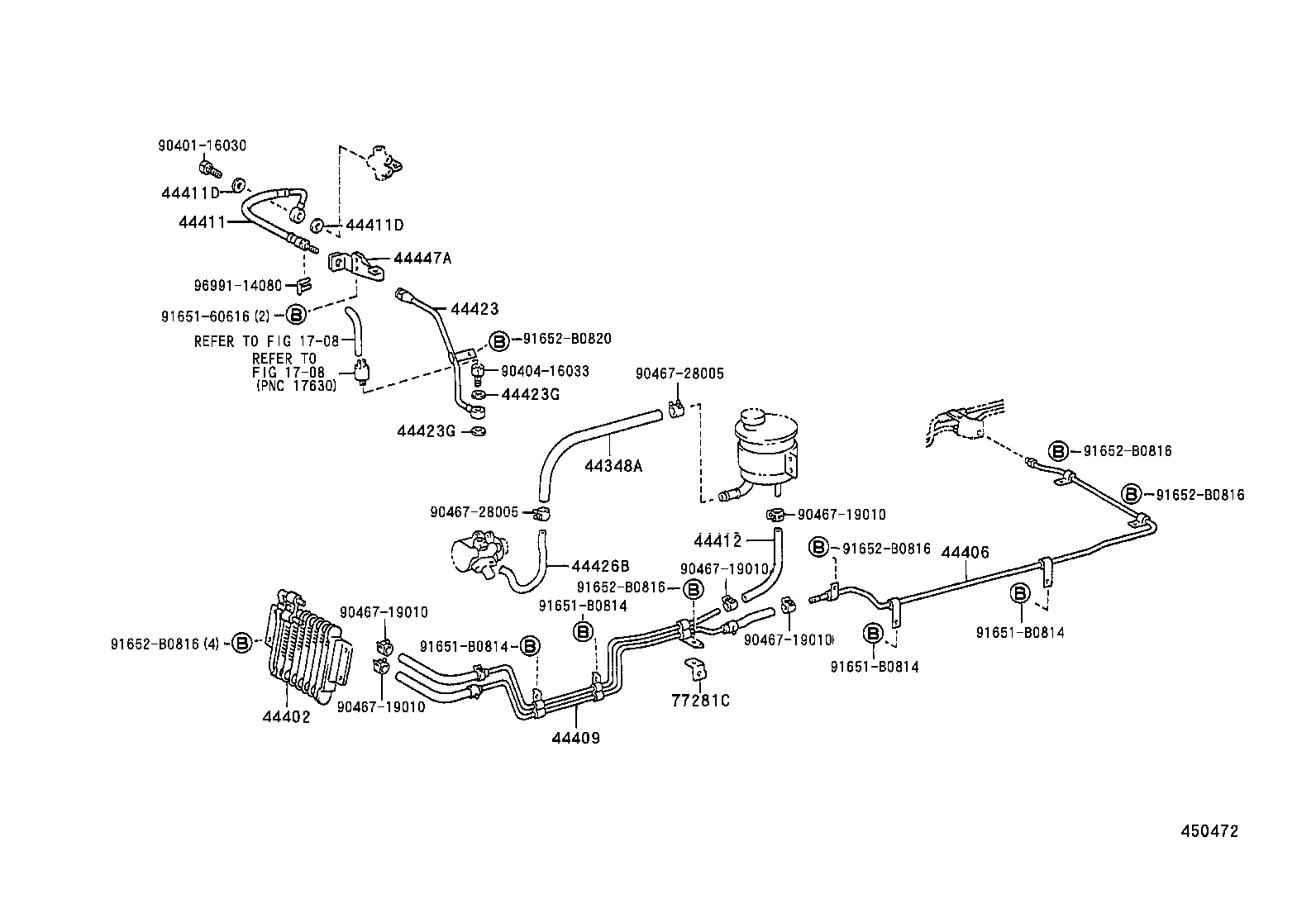

Figure 455287 455287 1996-10 → 1999-06 Figure 451834A 451834A 1999-06 → — Figure 450472 450472 1996-10 → —

Part groups

PNCDescription
44348A Hose, Oil Reservoir TO Pump, NO.1
44401 Valve Sub-assy, Power Steering Flow Divider
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44406 Tube Sub-assy, Return
44406C Gasket(FOR RETURN TUBE)
44409 Cooler Sub-assy, Oil, NO.2
44410 Tube Assy, Pressure Feed
44410B Gasket(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44413 Tube, Pressure Feed, NO.1
44421D Tube, Control Valve TO Power Cylinder, NO.1
44422A Tube, Control Valve TO Power Cylinder NO.2
44423 Tube, Oil Pump TO Gear Box
44423G Gasket, Union Bolt
44426B Tube, Oil Reservoir TO Pump
44447A Bracket, Hose Support, NO.1
44456B Retainer, Tube Support
44466A Retainer, Tube Support, NO.2
45091 Valve Sub-assy, Rear Steering Control Actuator
45092 Actuator Sub-assy, Rear Steering Control
77281C Bracket, Fuel Main Tube, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
