Toyota Mega Cruiser

1996-10 → 2001-10 · chassis BXD20 · catalogue 851310 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Steering Connecting Parts (4WS)

21 part groups · 2 illustrations

Illustrations

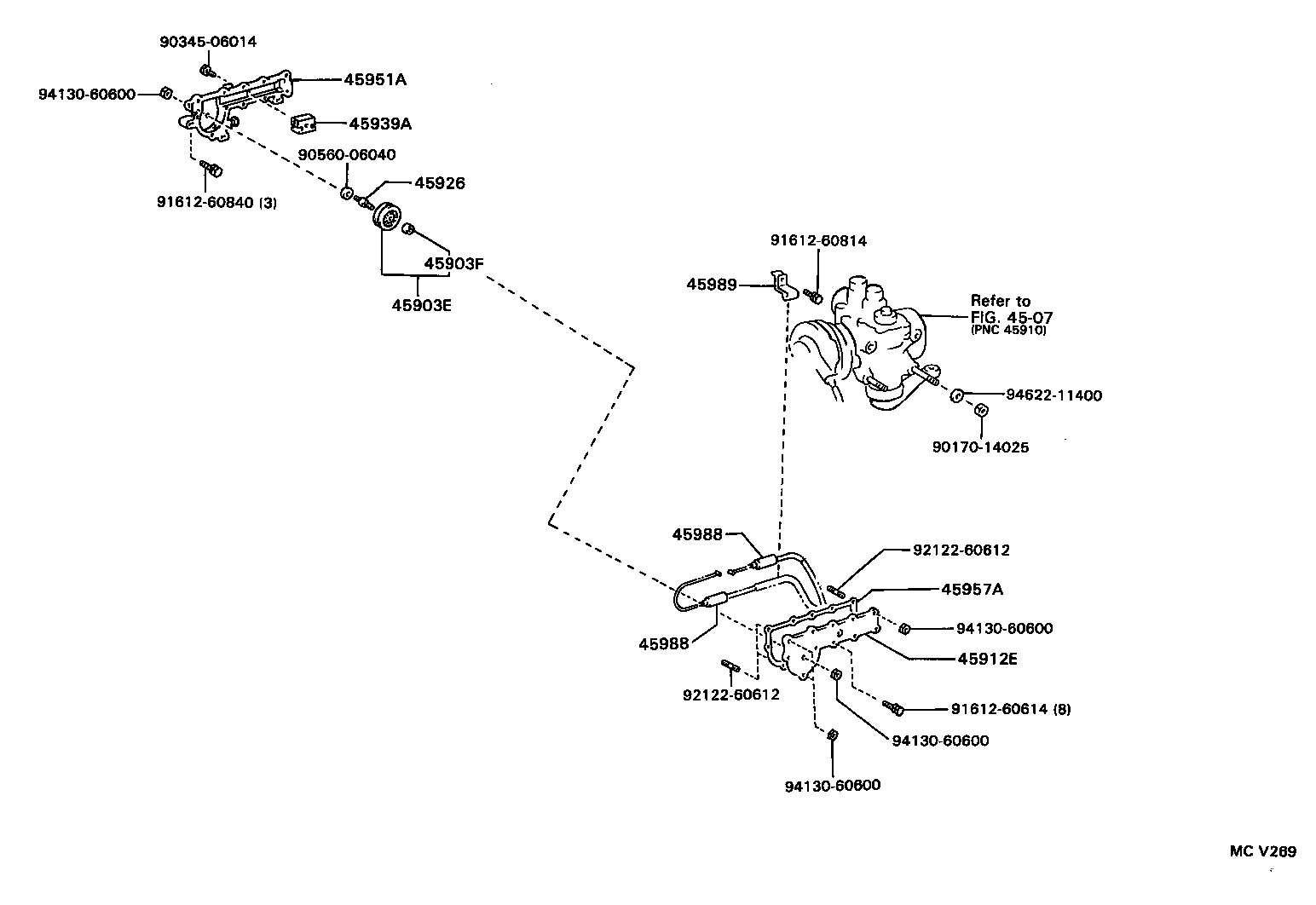

Figure 450475 450475 1996-10 → — Figure MCV269 MCV269 1996-10 → —

Part groups

PNCDescription
33281J Pin,Lever Lock
33740H End Assy, Connecting Rod, NO.1
33750A End Assy, Connecting Rod, NO.2
33789H Cover, Cross Shaft Dust, NO.3
33789J Bush(FOR COVER, CROSS SHAFT DUST)
45903E Bearing, Rear Steering Angle Ratio Converter Pivot, NO.1
45903F Bearing, Rear Steering Angle Ratio Converter Pivot, NO.2
45907 Shaft Sub-assy, Rear Steering Gear Connecting, NO.1
45908 Shaft Sub-assy, Rear Steering Gear Connecting, NO.2
45912E Cover, Rear Steering Gear
45926 Pivot, Rear Steering
45939A Cam, Rear Steering Worm Control
45951A Housing, Rear Steering Control Cam
45957A Seal, Rear Steering Angle Ratio Converter
45970 Cable Assy, Rear Steering Control, RH
45970A Ring, O(FOR REAR STEERING CONTROL CABLE ASSY, RH)
45981 Lever, Rear Steering Control, NO,1
45981A Bush(FOR REAR STEERING CONTROL LEVER NO.1)
45982 Lever, Rear Steering Control, NO.2
45988 Boot, Rear Steering Connecting Shaft, NO.2
45989 Clanp, Rear Steering Connectimg Shaft Boot, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
