Toyota Mega Cruiser

1996-10 → 2001-10 · chassis BXD20 · catalogue 851310 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

24 part groups · 2 illustrations

Illustrations

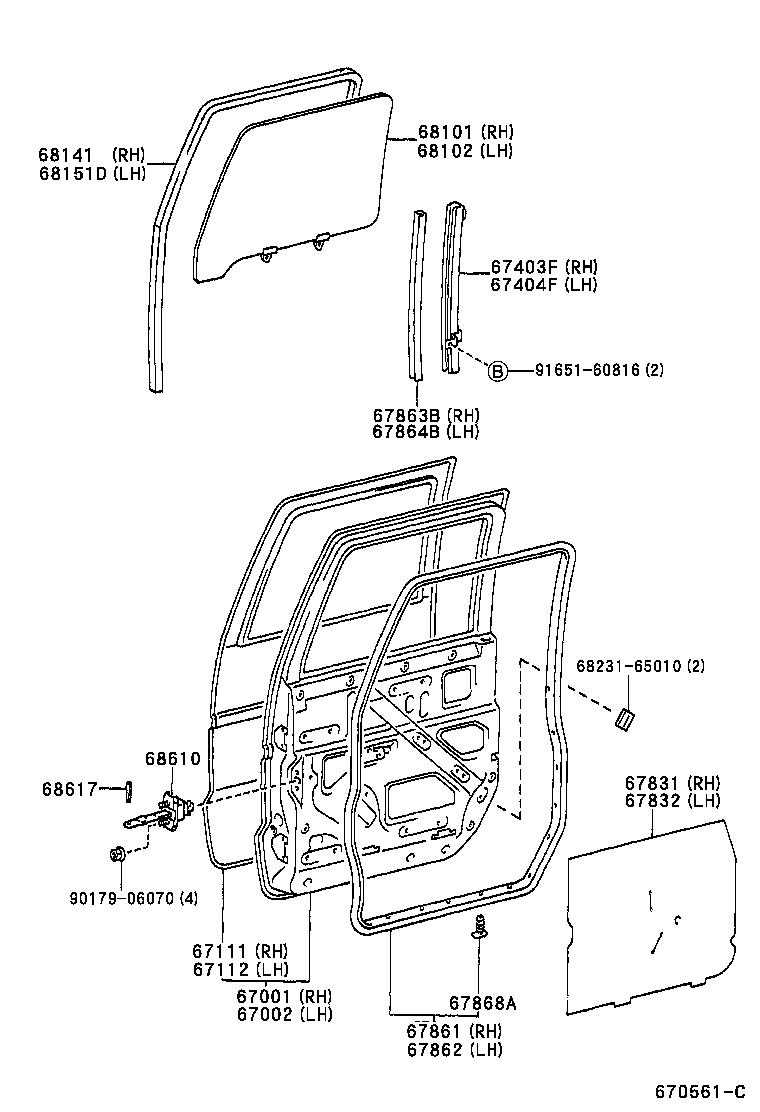

Figure 670559 670559 1996-10 → — Figure 670561C 670561C 1996-10 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67601 Board Sub-assy, Front Door Trim, RH
67602 Board Sub-assy, Front Door Trim, LH
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67863B Weatherstrip, Front Door, NO.2 RH
67864B Weatherstrip, Front Door, NO.2 LH
67868A Clip, Door Glass Weatherstrip(FOR FRONT DOOR)
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141 Run, Front Door Glass
68151D Run, Front Door Glass, LH
68170 Weatherstrip Assy, Front Door Glass, Inner
68170A Clip(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68610 Check Assy, Front Door
68617 Pin, Front Door Check
69751E Holder, Front Door Lock Control Knob
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
