Toyota Mega Cruiser

1996-10 → 2001-10 · chassis BXD20 · catalogue 851310 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Panel & Glass

22 part groups · 2 illustrations

Illustrations

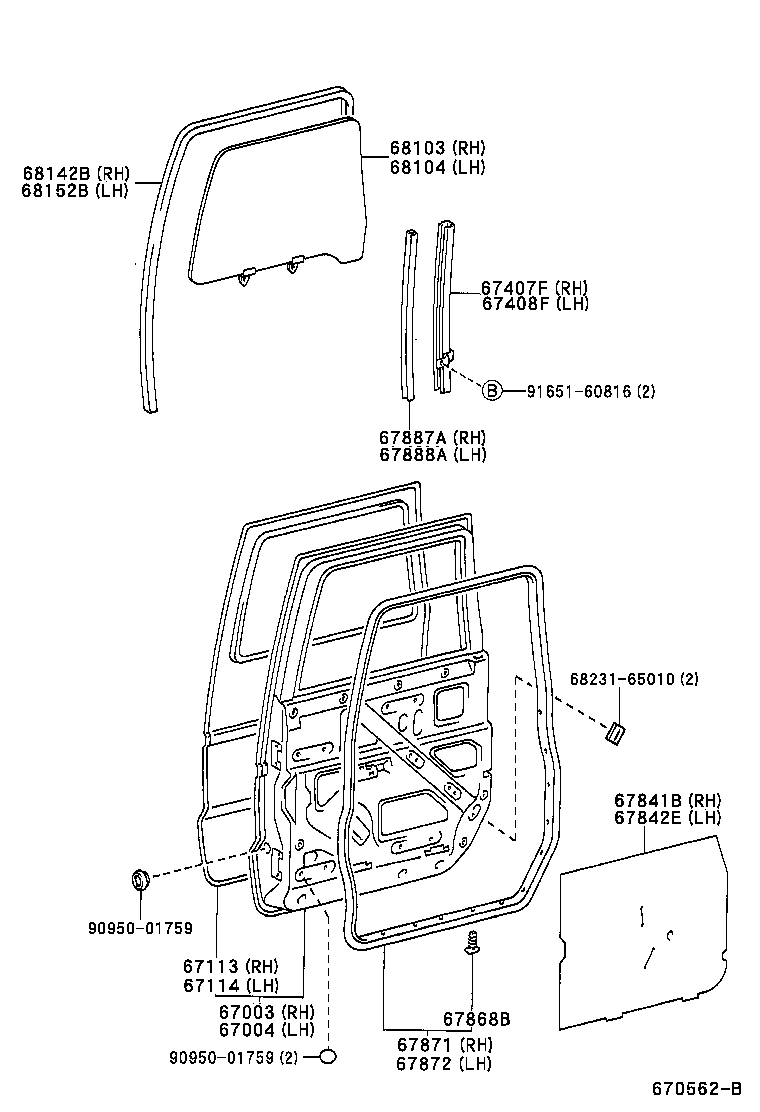

Figure 670560 670560 1996-10 → — Figure 670562B 670562B 1996-10 → —

Part groups

PNCDescription
67003 Panel Sub-assy, Rear Door, RH
67004 Panel Sub-assy, Rear Door, LH
67113 Panel, Rear Door, Outer RH
67114 Panel, Rear Door, Outer LH
67407F Frame Sub-assy, Rear Door Window, Rear Lower RH
67408F Frame Sub-assy, Rear Door Window, Rear Lower LH
67603 Board Sub-assy, Rear Door Trim, RH
67604 Board Sub-assy, Rear Door Trim, LH
67841B Cover, Rear Door Service Hole
67842E Cover, Rear Door Service Hole, LH
67868B Clip, Door Glass Weatherstrip(FOR REAR DOOR)
67871 Weatherstrip, Rear Door, RH
67872 Weatherstrip, Rear Door, LH
67887A Weatherstrip, Rear Door, NO.2 RH
67888A Weatherstrip, Rear Door, NO.2 LH
68103 Glass Sub-assy, Rear Door, RH
68104 Glass Sub-assy, Rear Door, LH
68142B Run, Rear Door Window, RH
68152B Run, Rear Door Window, LH
68190 Weatherstrip Assy, Rear Door Glass, Inner
68190A Clip(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)
69751F Holder, Rear Door Lock Control Knob
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
