Toyota Mega Cruiser

1996-10 → 2001-10 · chassis BXD20 · catalogue 851310 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

14 part groups · 2 illustrations

Illustrations

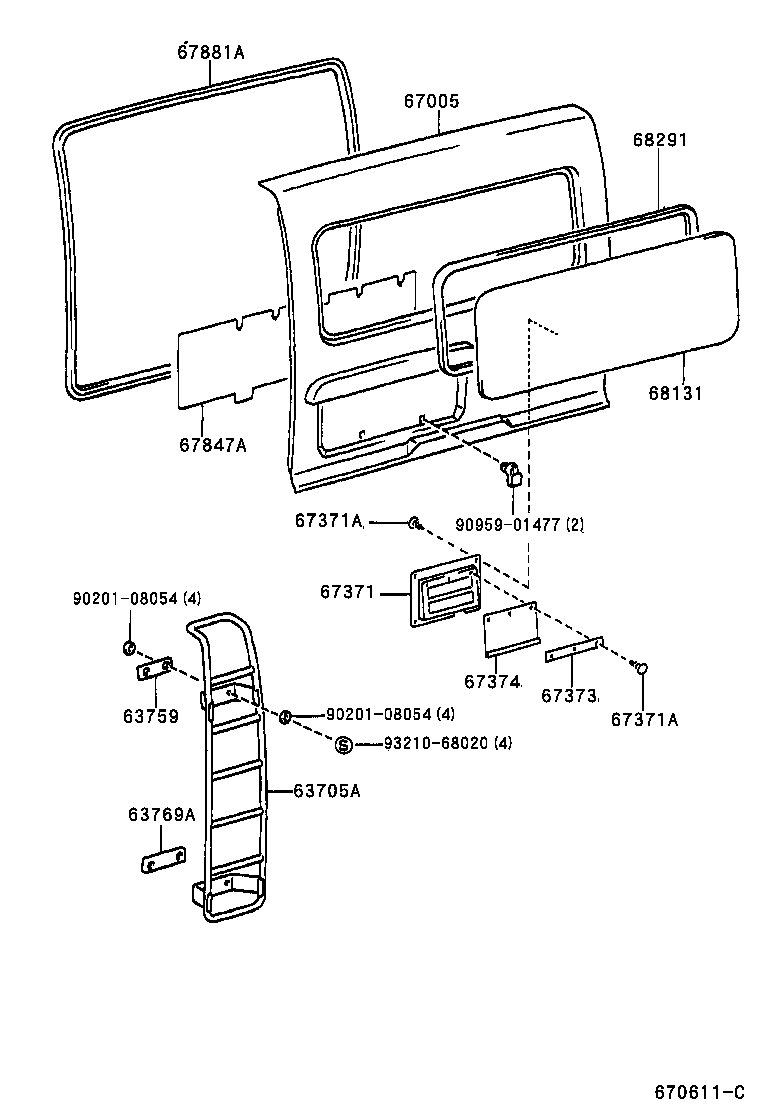

Figure 670551B 670551B 1996-10 → — Figure 670611C 670611C 1996-10 → —

Part groups

PNCDescription
63705A Ladder Sub-assy, Rack
63759 Spacer, Rack Ladder
63769A Spacer, Rack Ladder, NO.2
67005 Panel Sub-assy, Back Door
67371 Duct, Back Door Ventilator
67371A Clip(FOR BACK DOOR VENT DUCT)
67373 Seal, Back Door Ventilator
67374 Butterfly, Back Door Ventilator
67651A Grille, Speaker Door
67750 Board Assy, Back Door Trim
67847A Cover, Back Door Service Hole
67881A Weatherstrip, Back Door
68131 Glass, Back Door
68291 Weatherstrip, Back Door Glass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
