Toyota Mega Cruiser

1996-10 → 2001-10 · chassis BXD20 · catalogue 851310 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

33 part groups · 5 illustrations

Illustrations

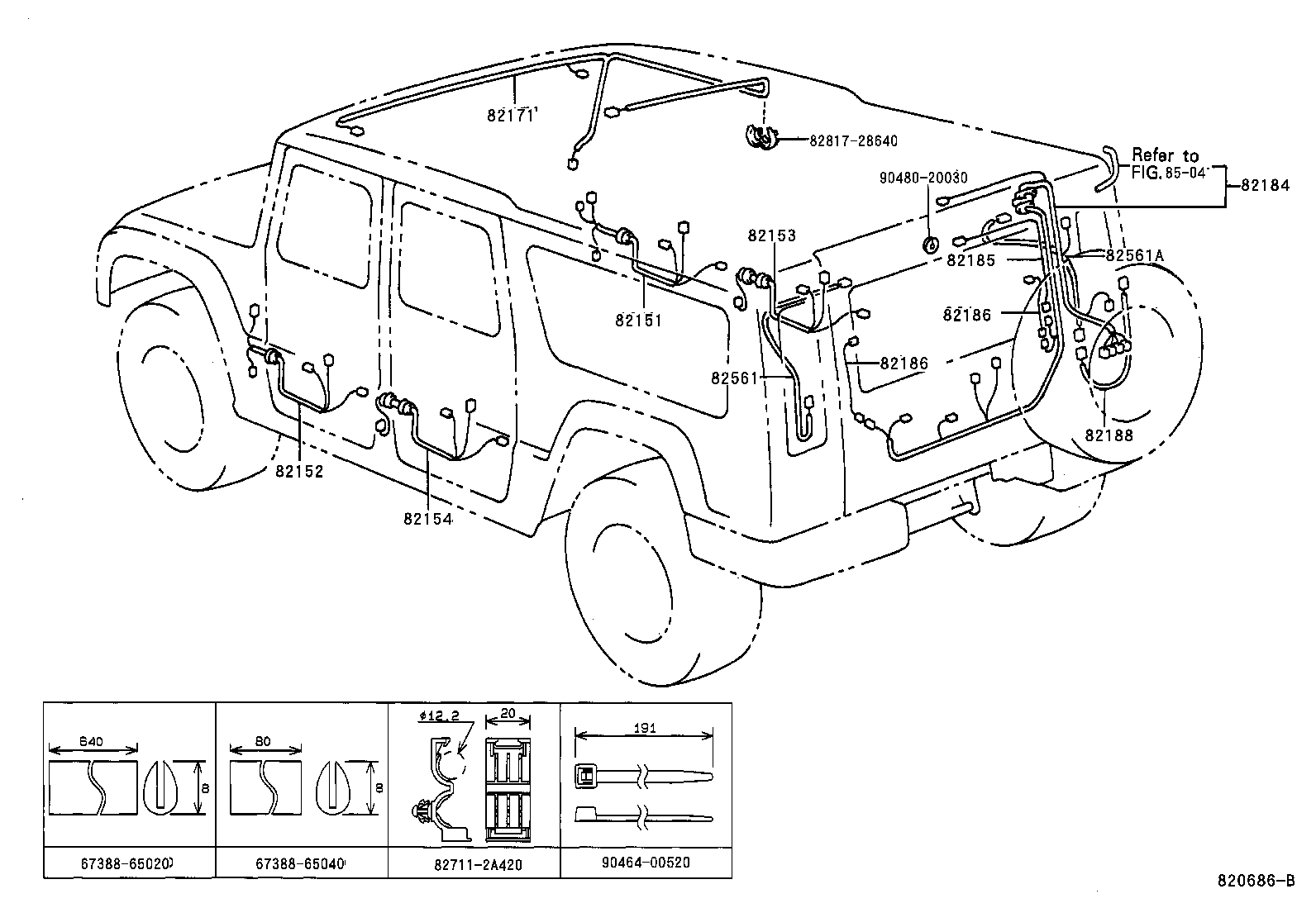

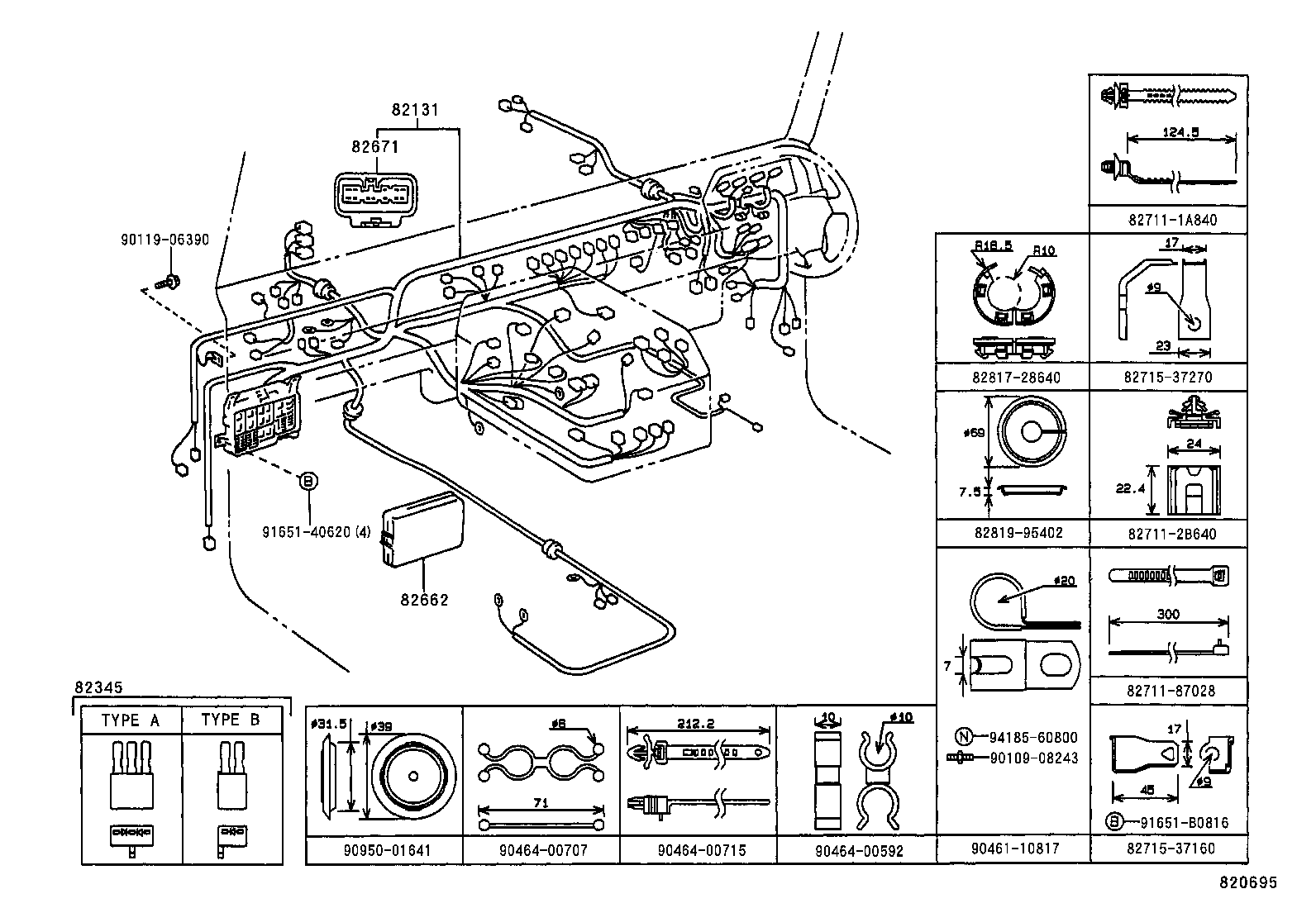

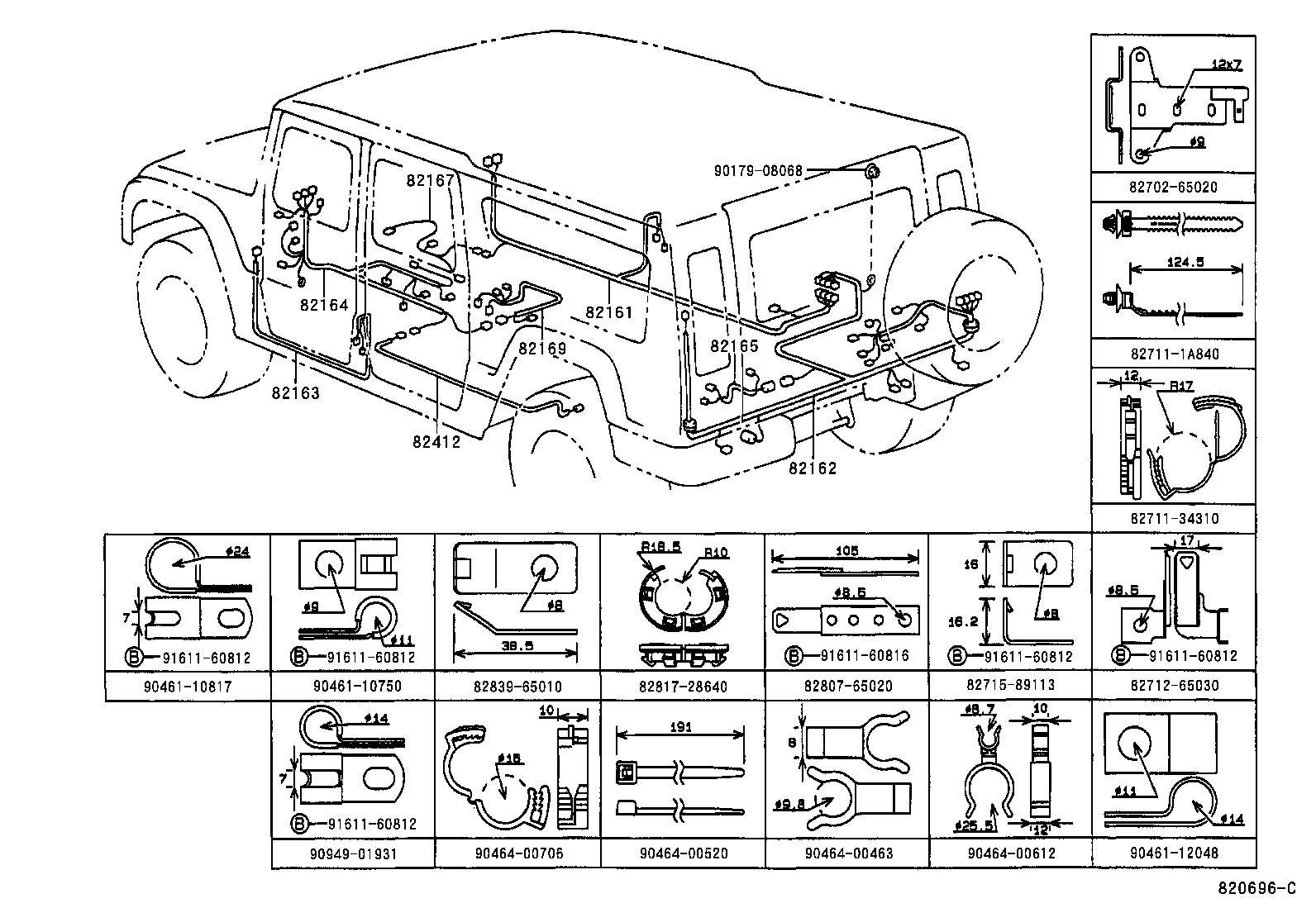

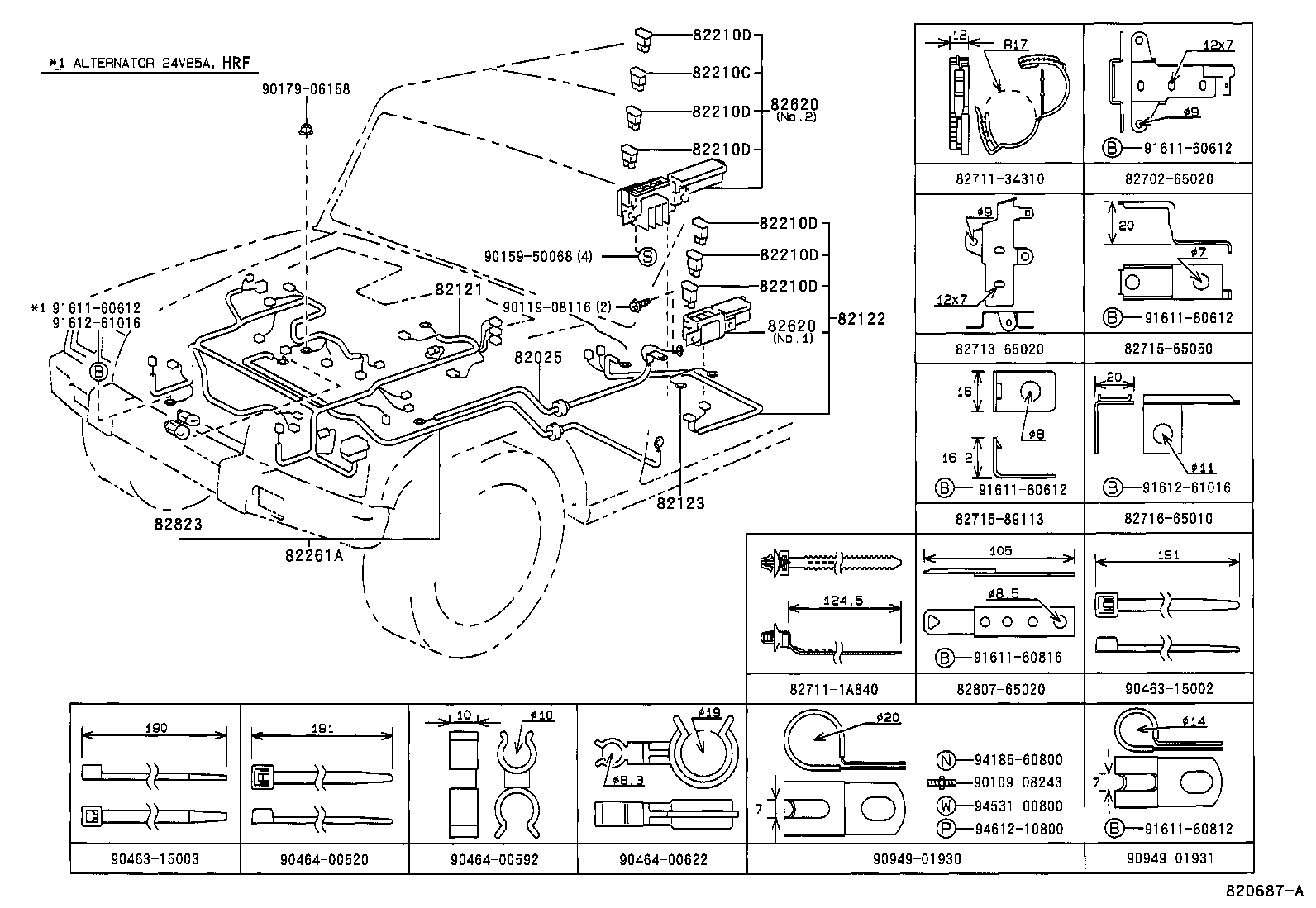

Figure 820682 820682 1996-10 → — Figure 820687A 820687A 1996-10 → — Figure 820695 820695 1996-10 → — Figure 820696C 820696C 1996-10 → — Figure 820686B 820686B 1996-10 → —

Part groups

PNCDescription
82025 Wiring Sub-assy, Front Side
82120 Harness Assy, Front End Wire
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82167 Wire, Seat, NO.1
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82188 Wire, Fuel Tank
82210C Fusible Link
82210D Fusible Link
82261A Wire, Alternator
82345 Diode
82412 Wire, Fuel Gage
82561 Wire, Rear Speaker
82561A Wire, Rear Speaker NO.2
82620 Block Assy, Fusible Link
82662 Cover, Relay Block, Upper
82671 Block, Junction
82823 Cap, Terminal, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
