Toyota C+Pod

2020-12 → present · chassis RMV1# · catalogue 100110 · Japan

Supported model Data version 2022-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

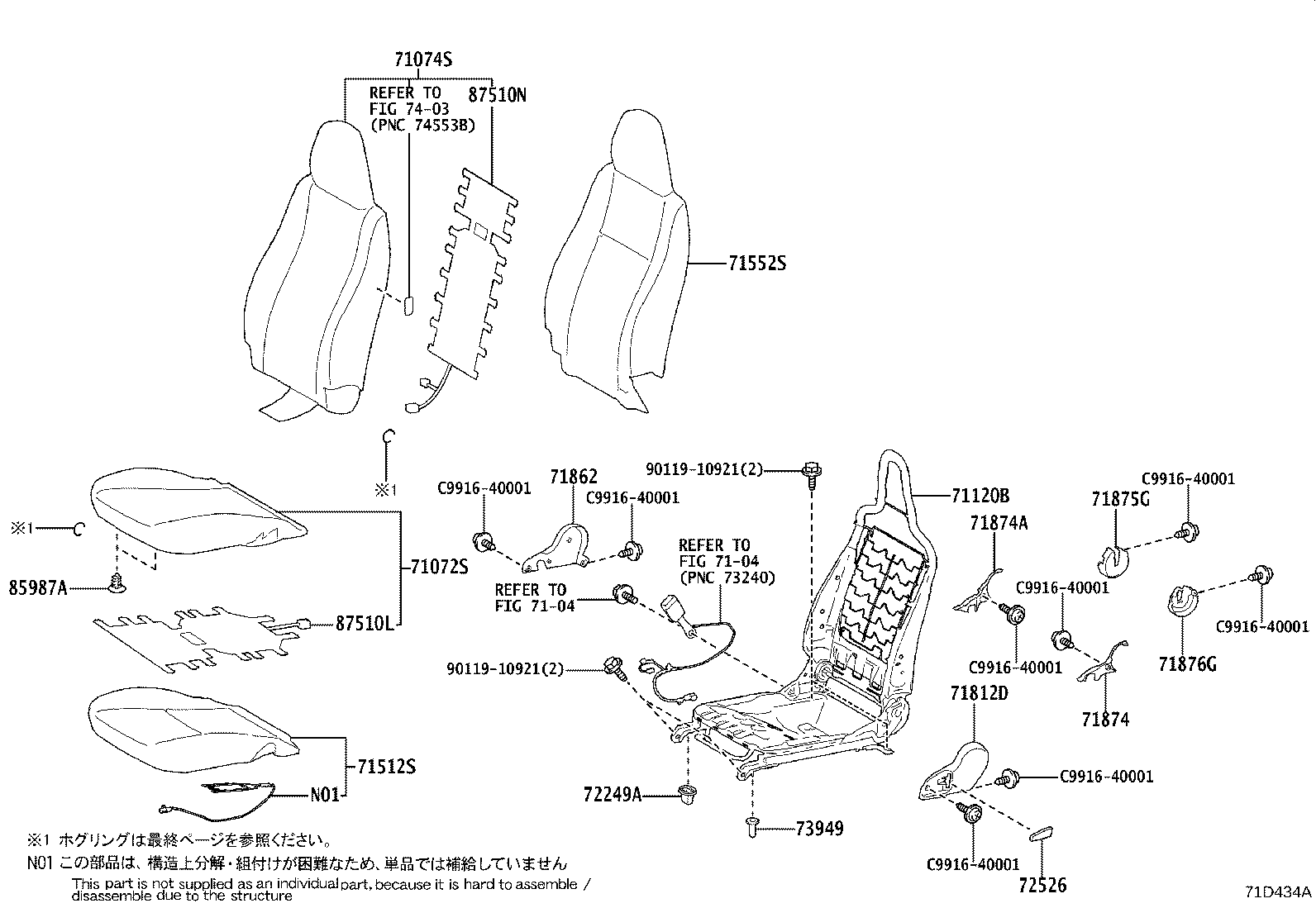

Exploded illustration 71D434A 87510L — HEATER ASSY, FRONT SEAT CUSHION, LH (1 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (2 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (1 parts) 73949 — CAP (2 parts) 72249A — GUIDE, SEAT TRACK LOCKING (2 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (1 parts) 71874A — SHIELD, FRONT SEAT CUSHION, LOWER LH (1 parts) 72526 — HANDLE, RECLINING ADJUSTER RELEASE, LH (1 parts) 71876G — COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) (1 parts) 71875G — COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) (1 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (1 parts) 71120B — FRAME ASSY, FRONT SEAT W/ADJUSTER, LH (1 parts) 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (1 parts) 87510N — HEATER ASSY, FRONT SEATBACK, LH (1 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (1 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (2 parts) C991640001 — not listed in this catalogue C991640001 — not listed in this catalogue C991640001 — not listed in this catalogue C991640001 — not listed in this catalogue 7403 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 85987A — CLIP (2 parts) C991640001 — not listed in this catalogue C991640001 — not listed in this catalogue C991640001 — not listed in this catalogue C991640001 — not listed in this catalogue 9011910921 — not listed in this catalogue 9011910921 — not listed in this catalogue
71D434A · 17 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
22 parts on this figure
Part number Description Fitment Price
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71072-55010-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-12 → —
RMV12 G ¥21,900
71072-55020-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-12 → —
RMV12 X ¥13,000
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71074-55010-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-12 → —
RMV12 G ¥29,500
71074-55020-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-12 → —
RMV12 X ¥20,200
71120B — Frame Assy, Front Seat W/Adjuster, LH
71120-55020 Frame Assy, Front Seat W/Adjuster, LH
2020-12 → —
RMV12 ¥35,500
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71052-55010 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2020-12 → —
RMV12 ¥15,800
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71552-55010 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2020-12 → —
RMV12 ¥9,900
71812D — Shield, Front Seat Cushion, LH
71868-26010-C0 note Shield, Front Seat Cushion, LH
2020-12 → —
RMV12 ¥1,690
71862 — Shield, Front Seat Cushion, Inner LH
71862-26010-C0 note Shield, Front Seat Cushion, Inner LH
2020-12 → —
RMV12 ¥1,460
71874 — Shield, Front Seat Cushion, Lower LH
71875-26020-B1 note Shield, Front Seat Cushion, Lower LH
2020-12 → —
RMV12 ¥640
71874A — Shield, Front Seat Cushion, Lower LH
71876-26030-B1 note Shield, Front Seat Cushion, Lower LH
2020-12 → —
RMV12 ¥640
71875G — Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876-26010-B1 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2020-12 → —
RMV12 ¥880
71876G — Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71875-26010-B1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2020-12 → —
RMV12 ¥880
72249A — Guide, Seat Track Locking
72249-26030 Guide, Seat Track Locking
2020-12 → —
RMV12 ¥200
72249-26030 Guide, Seat Track Locking
2021-02 → —
RMV11 ¥200
72526 — Handle, Reclining Adjuster Release, LH
72526-26020-C0 note Handle, Reclining Adjuster Release, LH
2020-12 → —
RMV12 ¥410
73949 — Cap
71848-26010 Cap
2020-12 → —
RMV12 ¥50
71848-26010 Cap
2021-02 → —
RMV11 ¥50
85987A — Clip
90467-08186-C3 note Clip
2020-12 → —
RMV12 ¥70
90467-08186-C3 note Clip
2021-02 → —
RMV11 ¥70
87510L — Heater Assy, Front Seat Cushion, LH
87510-55010 Heater Assy, Front Seat Cushion, LH
2020-12 → —
RMV12 G ¥8,300
87510N — Heater Assy, Front Seatback, LH
87530-55010 Heater Assy, Front Seatback, LH
2020-12 → —
RMV12 G ¥8,300
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
