Toyota C+Pod
2020-12 → present · chassis RMV1# · catalogue 100110 · Japan
Supported model
Data version 2022-04
Brake Tube & Clamp
38 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|

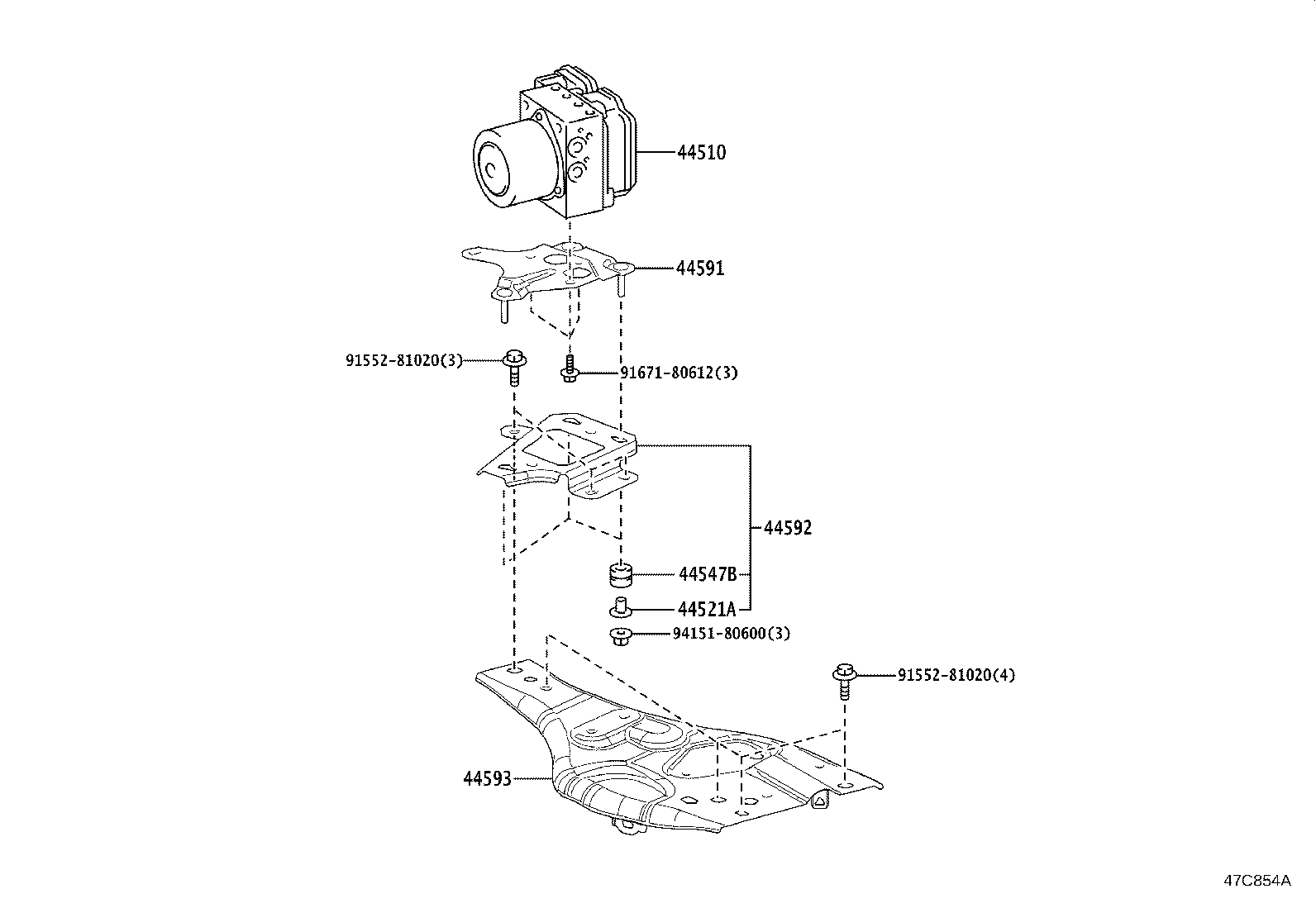

| 44510 | Actuator Assy, Brake |
| 44521A | Collar, Brake Actuator Case, NO.1 |
| 44547B | Cushion, Brake Actuator Bracket |
| 44591 | Bracket, Brake Actuator, NO.1 |
| 44592 | Bracket, Brake Actuator, NO.2 |
| 44593 | Bracket, Brake Actuator, NO.3 |
| 44730W | Way, 2(FOR FRONT BRAKE TUBE) |
| 47311 | Tube, Front Brake, NO.1 |
| 47312 | Tube, Front Brake, NO.2 |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313B | Bolt, Union(FOR FRONT FLEXIBLE HOSE) |
| 47313J | Hose, Flexible, NO.2(FOR FRONT) |
| 47313P | Gasket(FOR FRONT FLEXIBLE HOSE) |
| 47314 | Tube, Front Brake, NO.4 |
| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47322 | Tube, Rear Brake, NO.2 |
| 47323 | Tube, Rear Brake, NO.3 |
| 47324 | Tube, Rear Brake, NO.4 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47326 | Tube, Rear Brake, NO.6 |
| 47351 | Bracket, Flexible Hose(FOR FRONT RH) |
| 47352 | Bracket, Flexible Hose(FOR FRONT LH) |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47371B | Clamp, Brake Tube, NO.6 |
| 47371C | Clamp, Brake Tube, NO.7 |
| 47371D | Clamp, Brake Tube, NO.8 |
| 47371E | Clamp, Brake Tube, NO.9 |
| 47372 | Clamp, Brake Tube, NO.2 |
| 47373B | Clamp, Brake Tube, NO.3 |
| 47374B | Clamp, Brake Tube, NO.4 |
| 47375 | Clamp, Brake Tube, NO.5 |
| 55148G | Bracket, Brake Tube, NO.1 |
| 55148H | Bracket, Brake Tube, NO.2 |
| 55148J | Bracket, Brake Tube, NO.3 |
| 57367 | Bracket, 2 Way Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
