Toyota C+Pod

2020-12 → present · chassis RMV1# · catalogue 100110 · Japan

Supported model Data version 2022-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

22 part groups · 2 illustrations

Illustrations

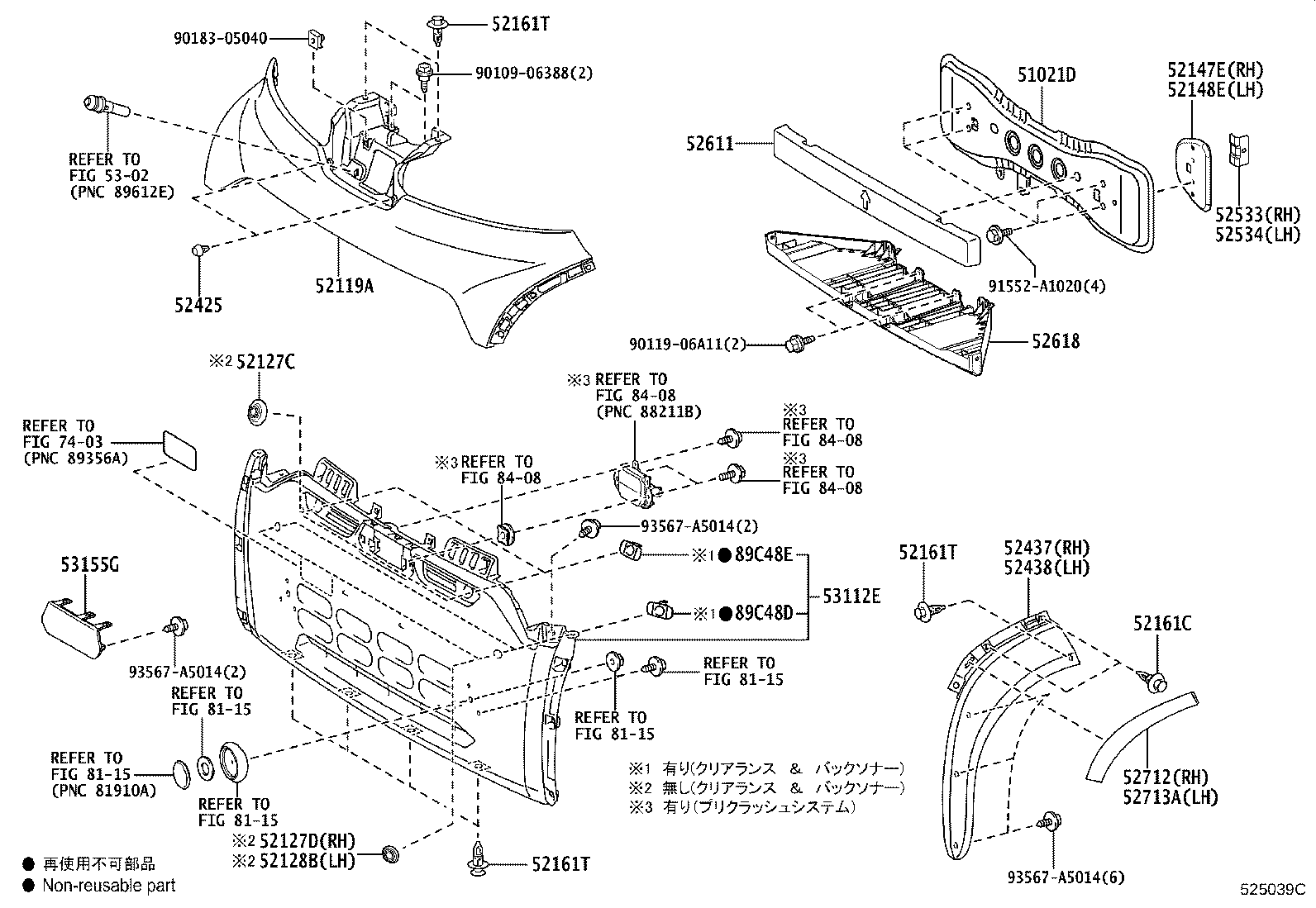

Figure 525056C 525056C 2020-12 → — Figure 525039C 525039C 2021-02 → —

Part groups

PNCDescription
51021D Crossmember Sub-assy, Frame Auxiliary
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52147E Bracket, Front Bumper Mounting, RH
52148E Bracket, Front Bumper Mounting, LH
52161C Piece, Front Bumper
52161T Piece, Front Bumper
52425 Cushion, Front Bumper
52437 Cover, Front Bumper Guard, RH
52438 Cover, Front Bumper Guard, LH
52533 Bracket, Front Bumper Retainer, NO.1
52534 Bracket, Front Bumper Retainer, NO.2
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53112E Grille, Radiator, Lower NO.1
53155G Seal, Radiator Grille
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48E Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
