Toyota C+Pod
2020-12 → present · chassis RMV1# · catalogue 100110 · Japan
Supported model
Data version 2022-04
Front Door Panel & Glass
75 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

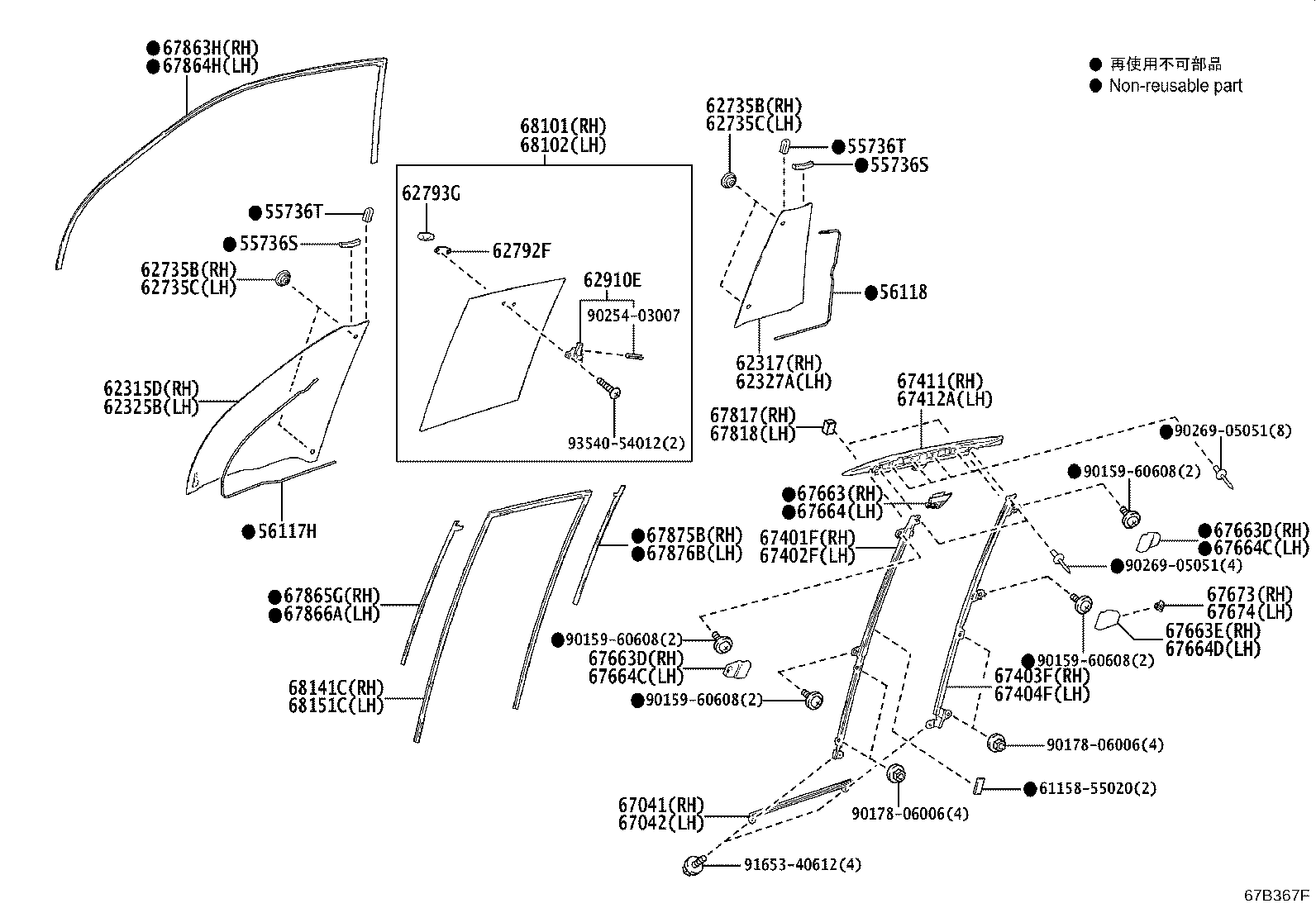

| 55736S | Seal, Water Guard Plate, NO.1 |
| 55736T | Seal, Water Guard Plate, NO.2 |
| 56117H | Dam, Window Glass Adhesive |
| 56118 | Dam, Window Glass Adhesive, NO.2 |
| 62315D | Glass, Front Door Window, Front RH |
| 62317 | Glass, Front Door Window, Rear RH |
| 62325B | Glass, Front Door Window, Front LH |
| 62327A | Glass, Front Door Window, Rear LH |
| 62735B | Retainer, Side Front Window Hinge, RH |
| 62735C | Retainer, Side Front Window Hinge, LH |
| 62792F | Packing, Side Window Lock |
| 62793G | Retainer, Side Window Lock |
| 62910E | Lock Assy, Side Window |
| 67001A | Cushion, Front Door Panel |
| 67011 | Panel Sub-assy, Front Door, Outside RH |
| 67012 | Panel Sub-assy, Front Door, Outside LH |
| 67015 | Panel Sub-assy, Front Door, Inside RH |
| 67016 | Panel Sub-assy, Front Door, Inside LH |
| 67041 | Frame Sub-assy, Front Door Window, RH |
| 67042 | Frame Sub-assy, Front Door Window, LH |
| 67153A | Reinforcement, Front Door Inside Panel, Rear RH |
| 67154 | Reinforcement, Front Door Inside Panel, Rear LH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67411 | Frame, Front Door Window, Front Upper RH |
| 67412A | Frame, Front Door Window, Front Upper LH |

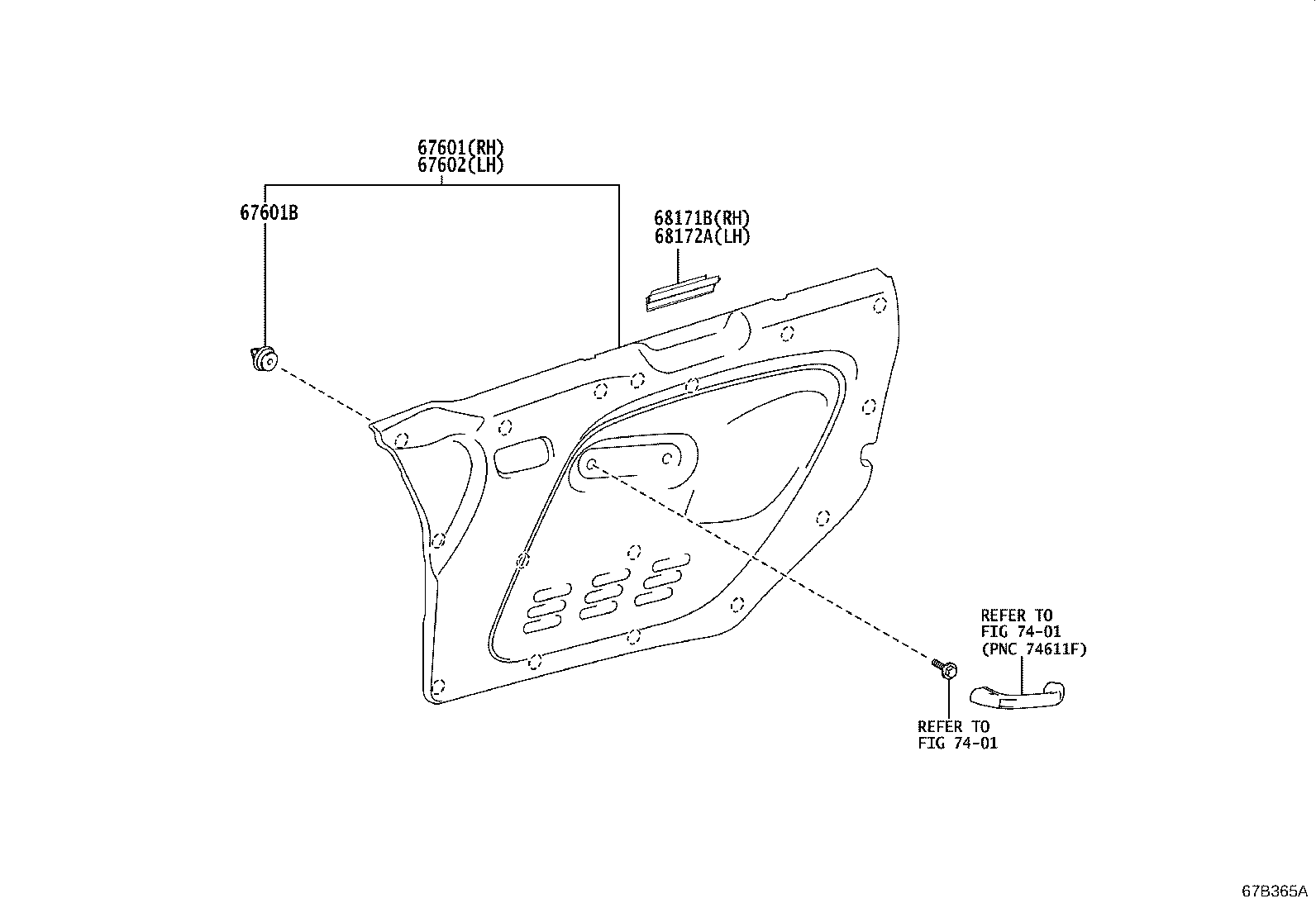

| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67663 | Garnish, Door Frame, Upper RH |
| 67663D | Garnish, Door Frame, RH |
| 67663E | Garnish, Door Frame, RH |
| 67664 | Garnish, Door Frame, Upper LH |
| 67664C | Garnish, Door Frame, LH |
| 67664D | Garnish, Door Frame, LH |
| 67673 | Garnish, Door Frame, Lower RH |
| 67674 | Garnish, Door Frame, Lower LH |
| 67817 | Packing, Front Door Protector, RH |
| 67818 | Packing, Front Door Protector, LH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67831C | Cover, Front Door Service Hole |
| 67832 | Cover, Front Door Service Hole, LH |
| 67833F | Seal, Front Door Service Hole, NO.1 RH |
| 67834E | Seal, Front Door Service Hole, NO.1 LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67863H | Weatherstrip, Front Door, NO.2 RH |
| 67864H | Weatherstrip, Front Door, NO.2 LH |
| 67865G | Weatherstrip, Front Door, NO.3 RH |
| 67866A | Weatherstrip, Front Door, NO.3 LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67867G | Retainer, Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67868L | Retainer, Door Weatherstrip, LH |
| 67875B | Weatherstrip, Front Door, NO.4 RH |
| 67876B | Weatherstrip, Front Door, NO.4 LH |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141C | Run, Front Door Glass, RH |
| 68151C | Run, Front Door Glass, LH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68610 | Check Assy, Front Door |
| 75921C | Tape, Black Out, NO.1 RH |
| 75922M | Tape, Black Out, NO.1 LH |
| 75923B | Tape, Black Out, NO.2 RH |
| 75924B | Tape, Black Out, NO.2 LH |
| 75925 | Tape, Black Out, NO.3 RH |
| 75926 | Tape, Black Out, NO.3 LH |
| 75929 | Tape, Black Out Front Door, Inner Upper RH |
| 75939 | Tape, Black Out Front Door, Inner Upper LH |
| 75968 | Tape, Black Out Front Door, Inner Rear RH |
| 75969 | Tape, Black Out Front Door, Inner Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
