Factory parts data · Europe

Toyota C+Pod

2020-12 → present · chassis RMV1# · catalogue 100110 · Japan

Supported model Data version 2022-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

6 part groups · 2 illustrations

Illustrations

Figure 745406B

745406B 2020-12 → —

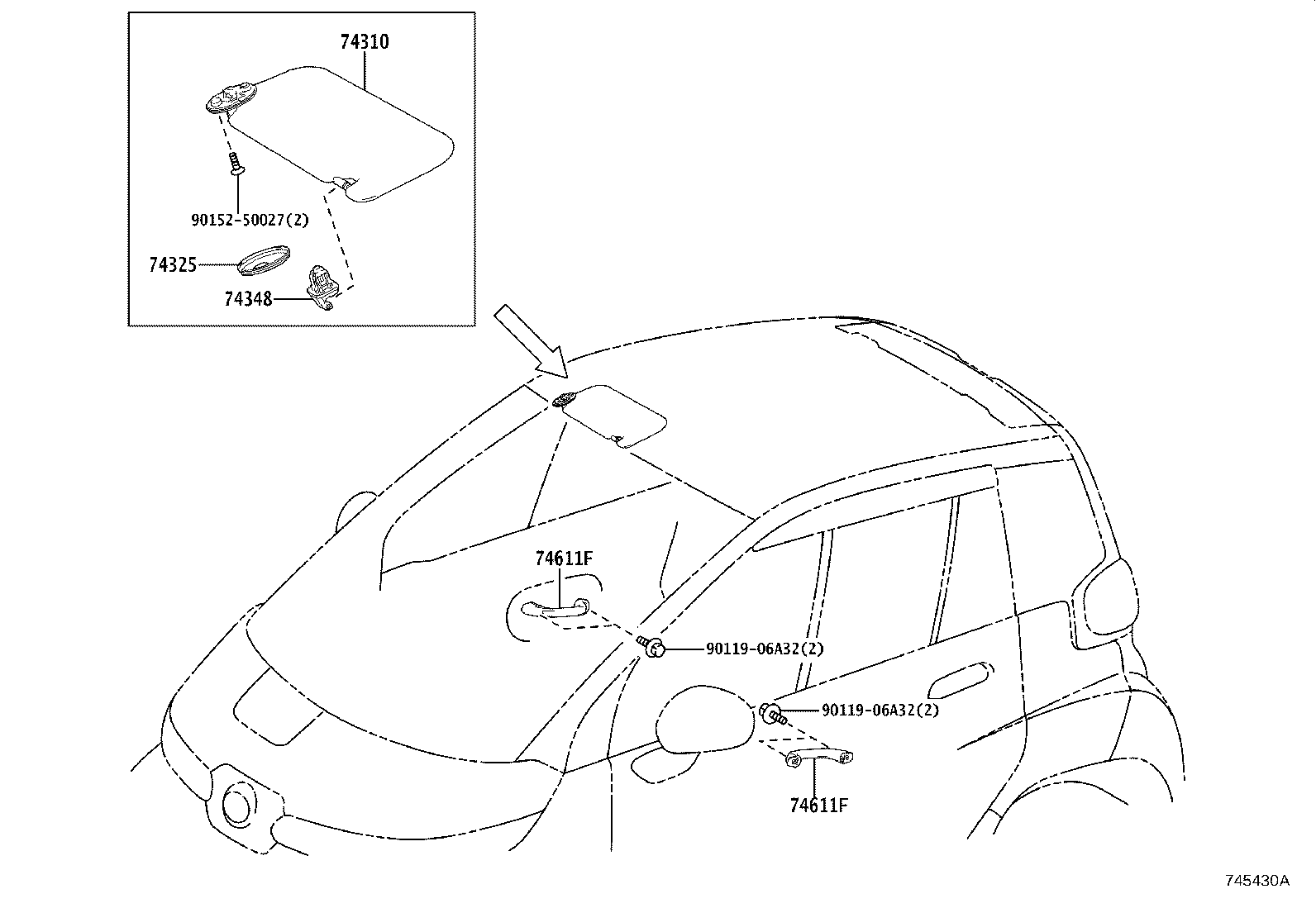

Figure 745430A

745430A 2021-02 → —

Part groups

PNC	Description
74310	Visor Assy, RH
74320	Visor Assy, LH
74325	Cover, Visor Bracket
74348	Holder, Visor
74610A	Grip Sub-assy, Assist
74611F	Grip, Assist, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
