Toyota C+Pod

2020-12 → present · chassis RMV1# · catalogue 100110 · Japan

Supported model Data version 2022-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

28 part groups · 3 illustrations

Illustrations

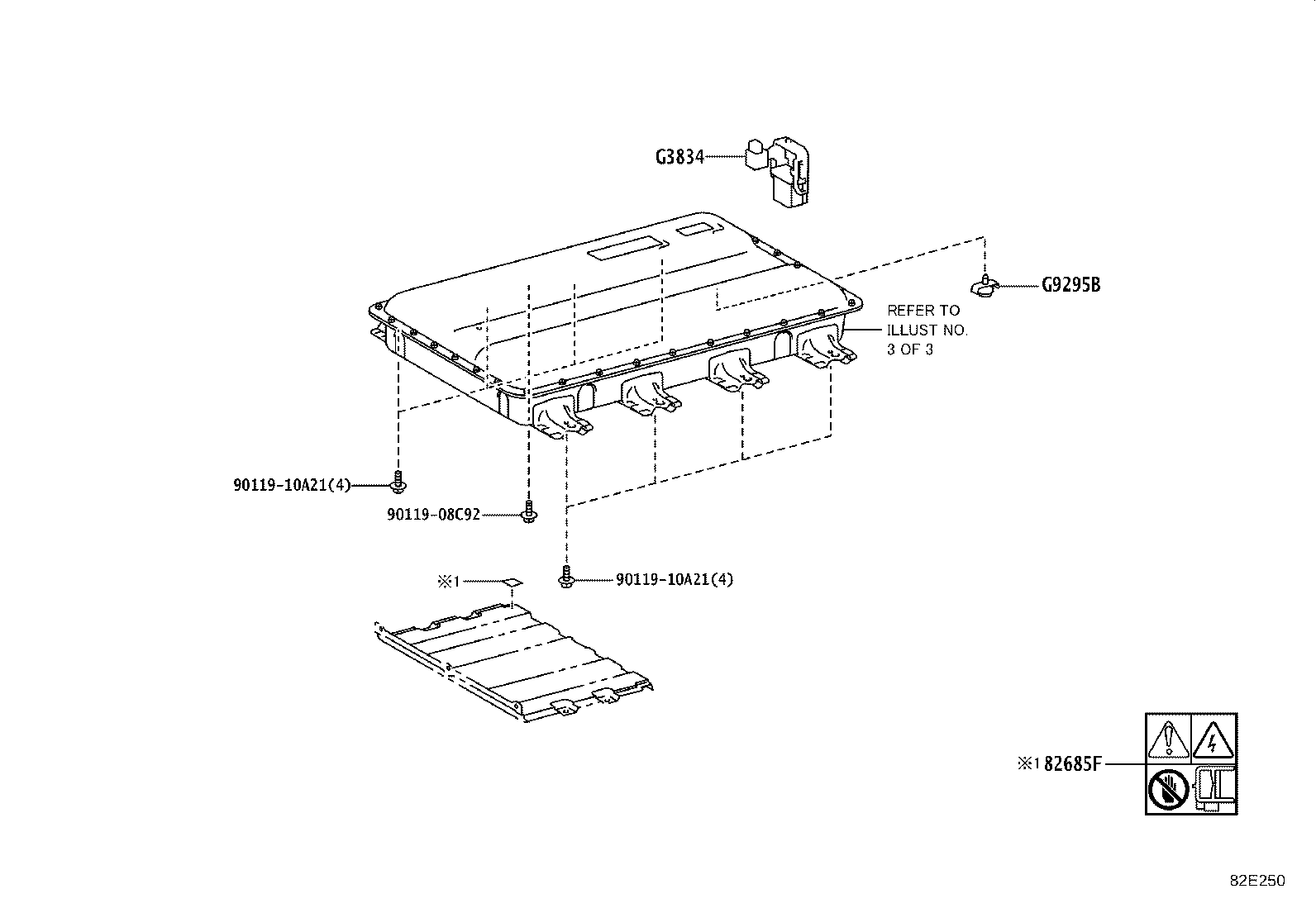

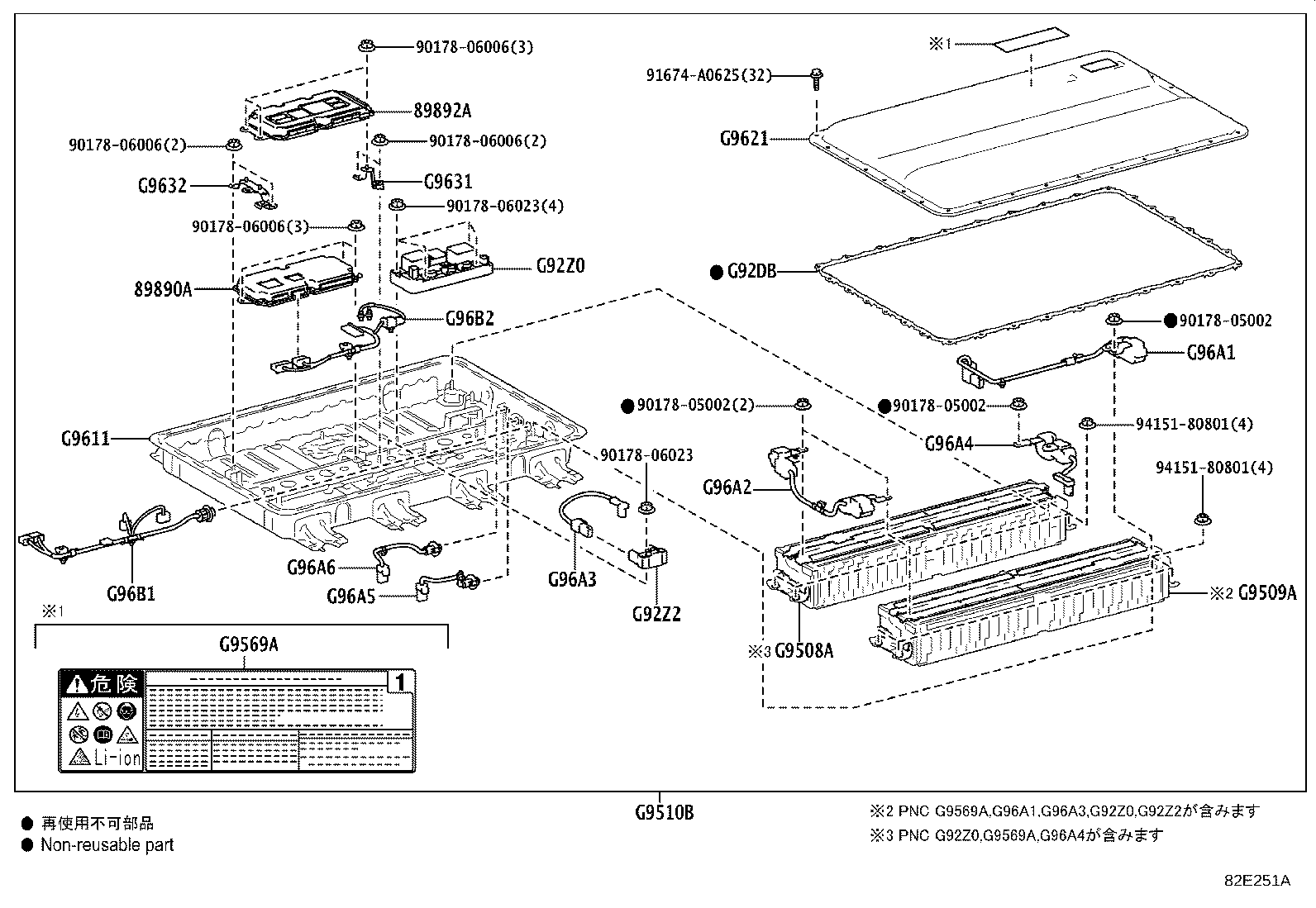

Figure 82E249D 82E249D 2020-12 → — Figure 82E250 82E250 2020-12 → — Figure 82E251A 82E251A 2020-12 → —

Part groups

PNCDescription
28800A Terminal, Battery Positive
28800D Cover, Connector(FOR BATTERY TERMINAL)
82621B Cover, Fusible Link
82651E Block, Terminal
82685F Main Battery Caution Plate, NO.1
89890A Computer Assy, Battery
89892A Sensor, Battery Voltage
G3834 Grip, Service Plug
G9295B Striker, Battery Cover Lock
G92DB Seal, Hybrid Battery, NO.1
G92Z0 Block Assy, HV Battery Junction
G92Z2 Block, Hybrid Battery Terminal
G9508A Stack Sub-assy, EV Supply, NO.1
G9509A Stack Sub-assy, EV Supply, NO.2
G9510B Battery Assy, EV Supply
G9569A Label, Lithium Ion Battery Caution
G9611 Carrier, Traction Battery, NO.1
G9621 Cover, Traction Battery, NO.1
G9631 Bracket, Traction Battery, NO.1
G9632 Bracket, Traction Battery, NO.2
G96A1 Cable, Traction Battery, NO.1
G96A2 Cable, Traction Battery, NO.2
G96A3 Cable, Traction Battery, NO.3
G96A4 Cable, Traction Battery, NO.4
G96A5 Cable, Traction Battery, NO.5
G96A6 Cable, Traction Battery, NO.6
G96B1 Wire, Traction Battery, NO.1
G96B2 Wire, Traction Battery, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
