Toyota C+Pod

2020-12 → present · chassis RMV1# · catalogue 100110 · Japan

Supported model Data version 2022-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

19 part groups · 8 illustrations

Illustrations

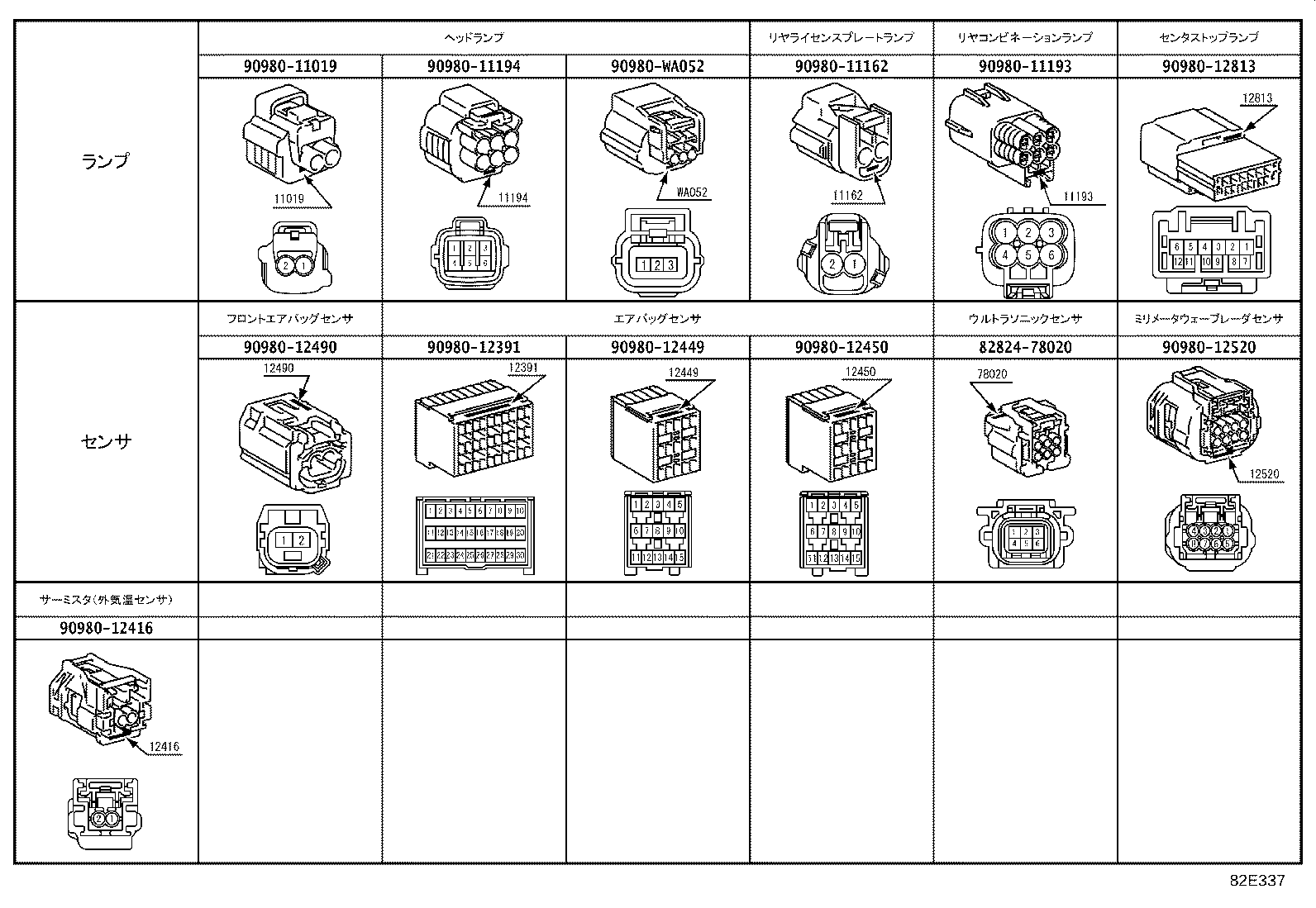

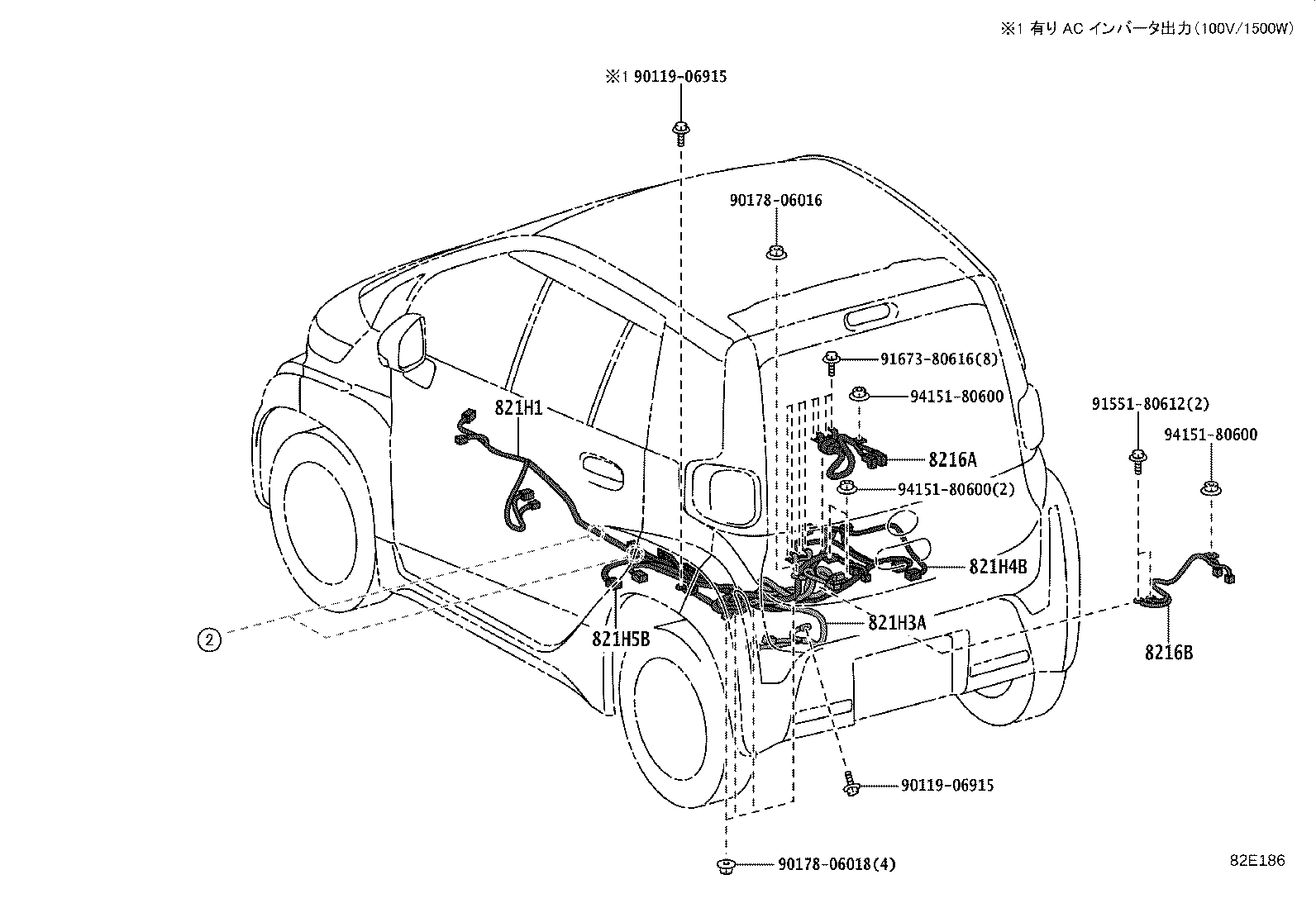

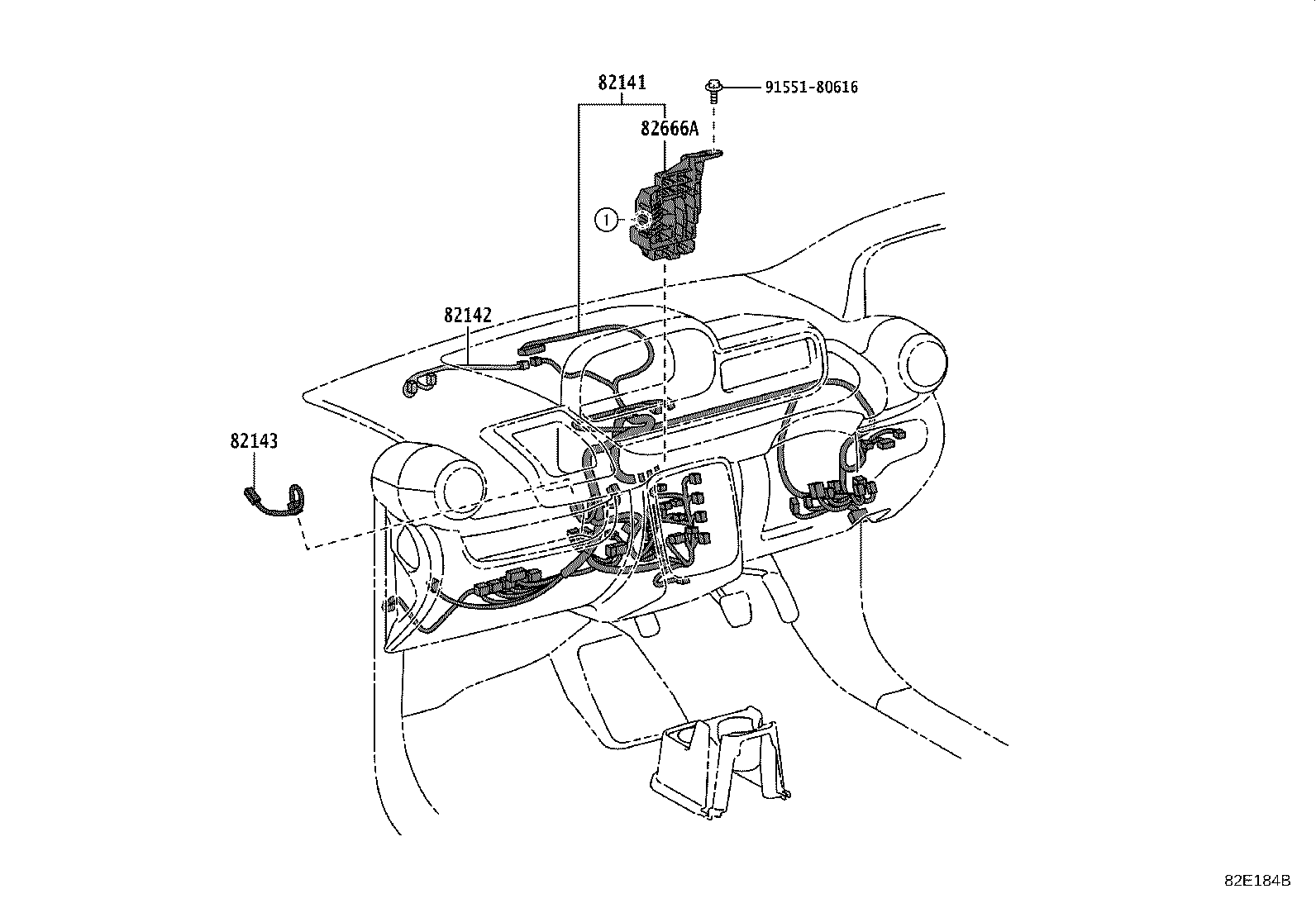

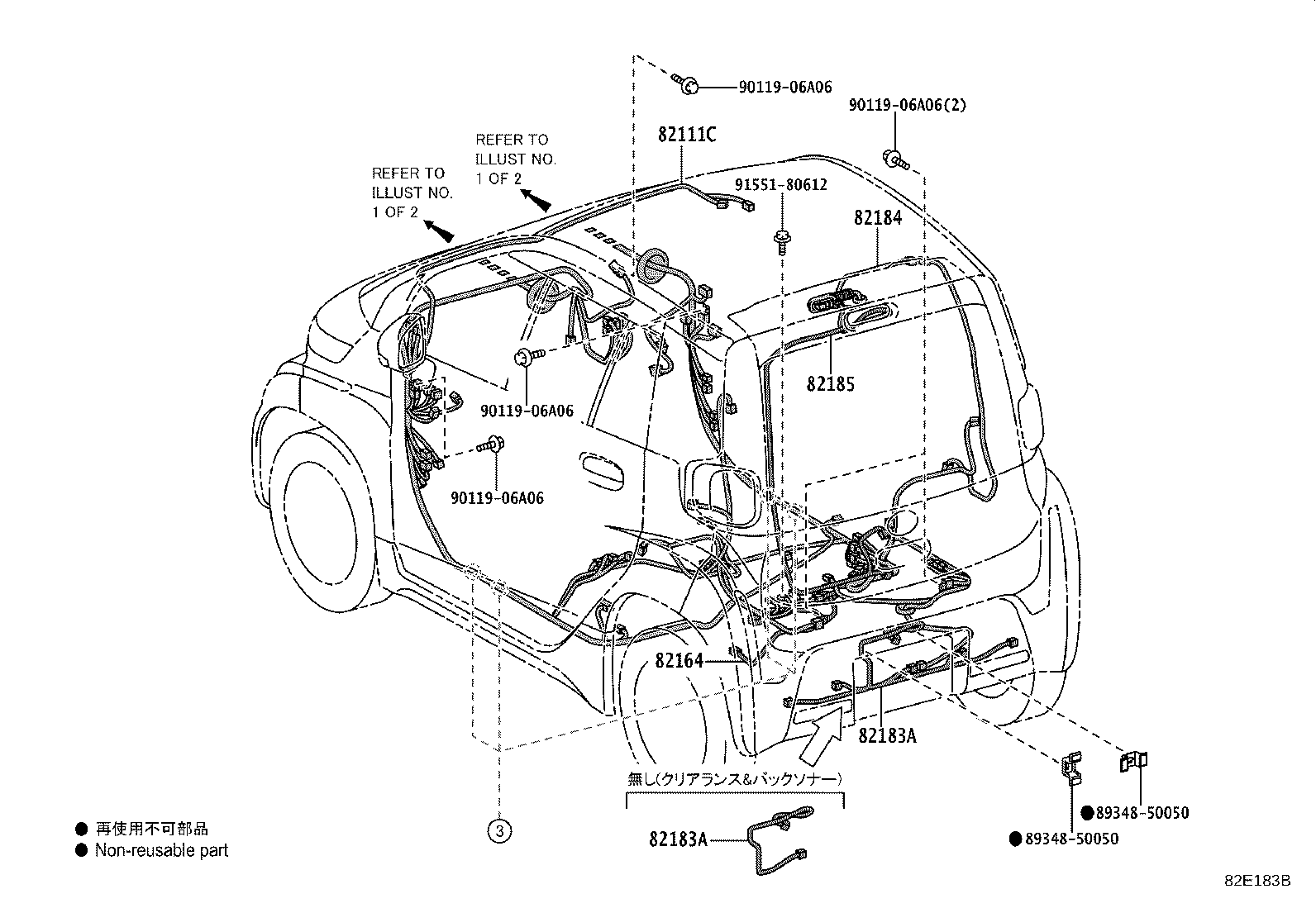

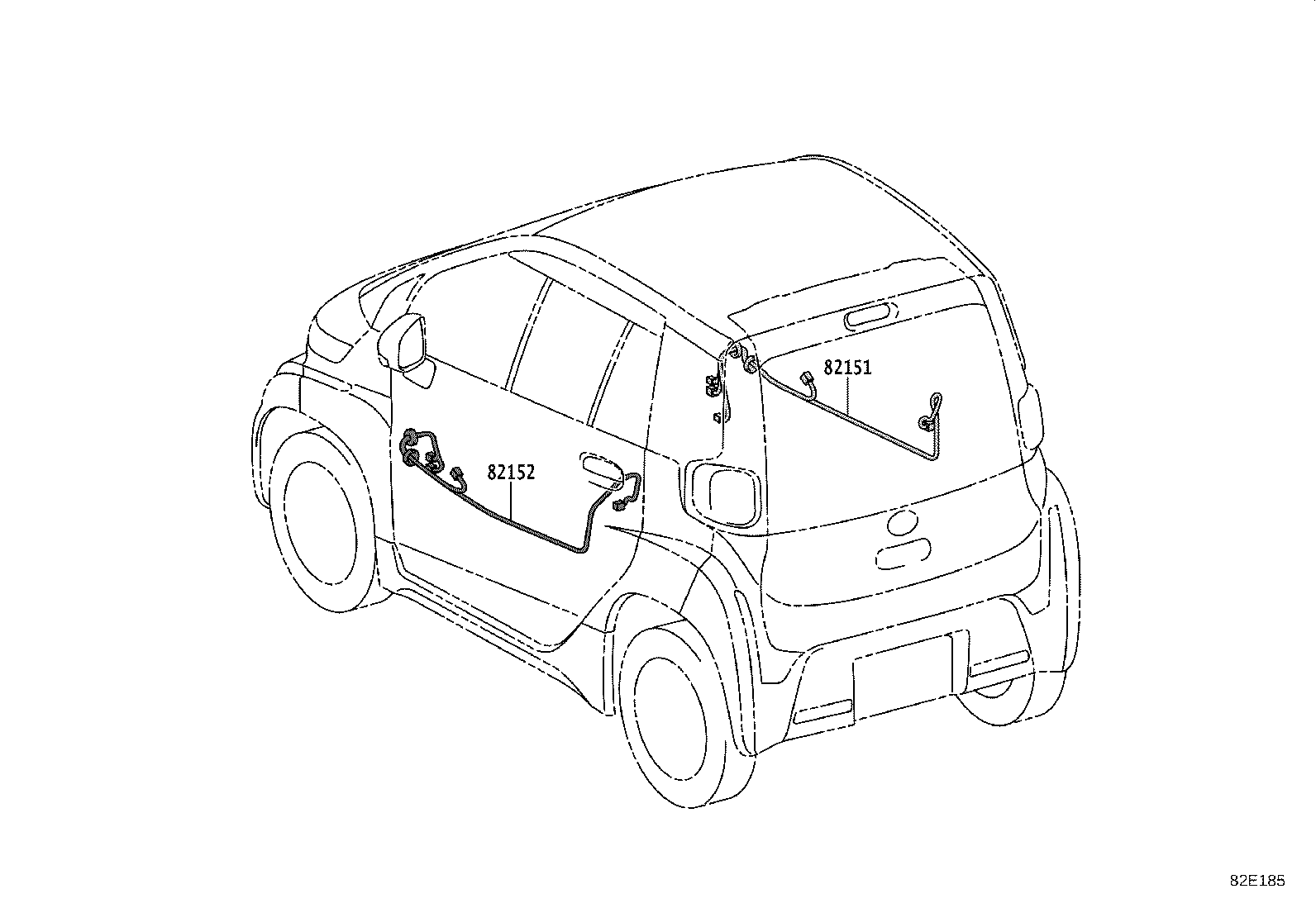

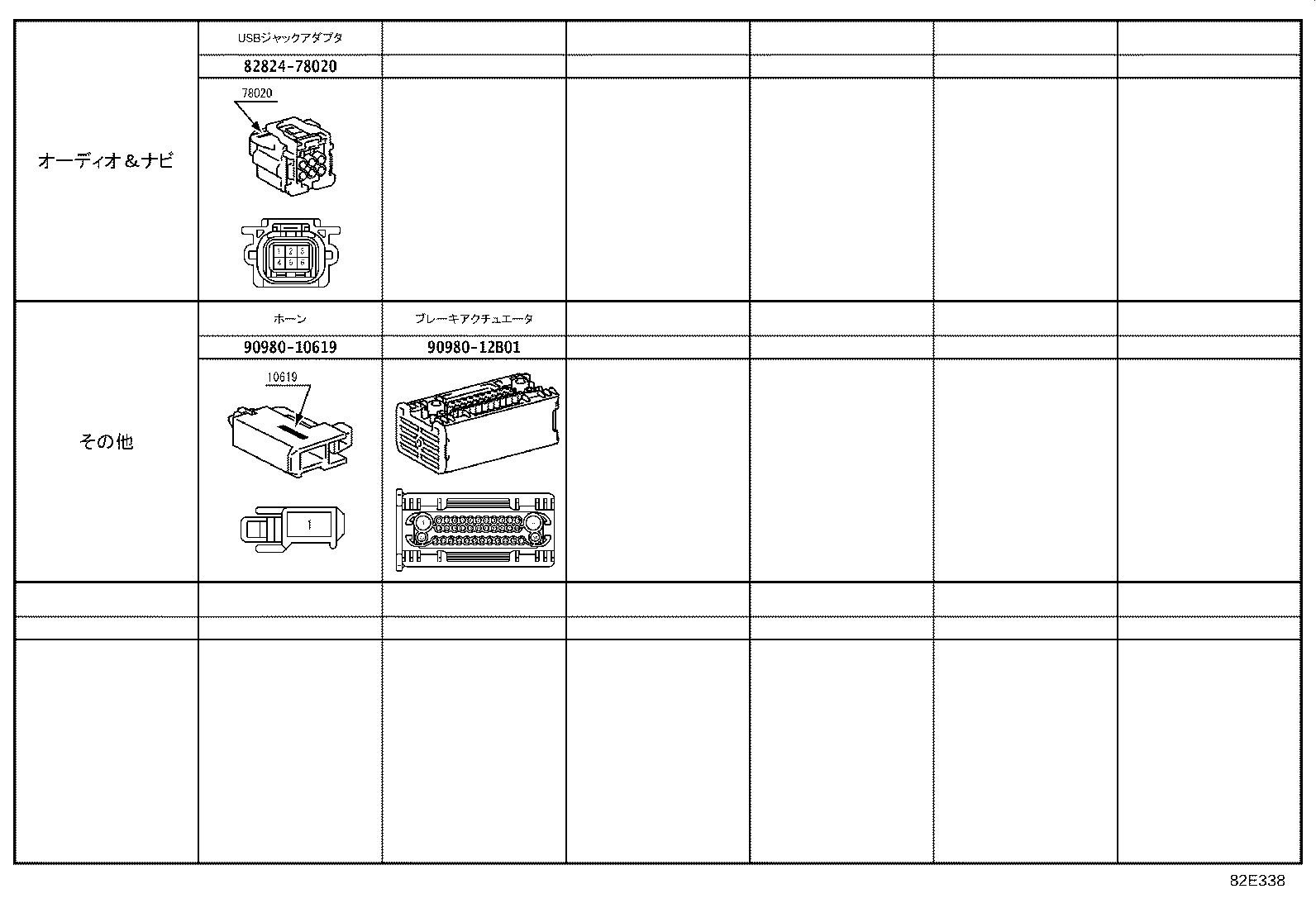

Figure 82E182A 82E182A 2020-12 → — Figure 82E183B 82E183B 2020-12 → — Figure 82E184B 82E184B 2020-12 → — Figure 82E185 82E185 2020-12 → — Figure 82E186 82E186 2020-12 → — Figure 82E246B 82E246B 2020-12 → — Figure 82E337 82E337 2020-12 → — Figure 82E338 82E338 2020-12 → —

Part groups

PNCDescription
82111C Wire, Front Compartment, Main
82114C Wire, Front Compartment, NO.4
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82164 Wire, Frame
8216A Wire, Floor NO.7
8216B Wire, Floor NO.8
82183A Wire, Rear Bumper
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
821H1 Wire, Floor Under
821H3A Wire, Battery Pack, NO.1
821H4B Wire, Socket Inverter
821H5B Wire, EV Battery Charger
82284 Wire, Earth
82666A Holder, Connector NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
