Toyota IQ

2008-11 → 2016-03 · chassis KGJ10,NGJ10 · catalogue 102110 · Japan

Supported model Data version 2016-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Standard Tool

11 part groups · 2 illustrations

Illustrations

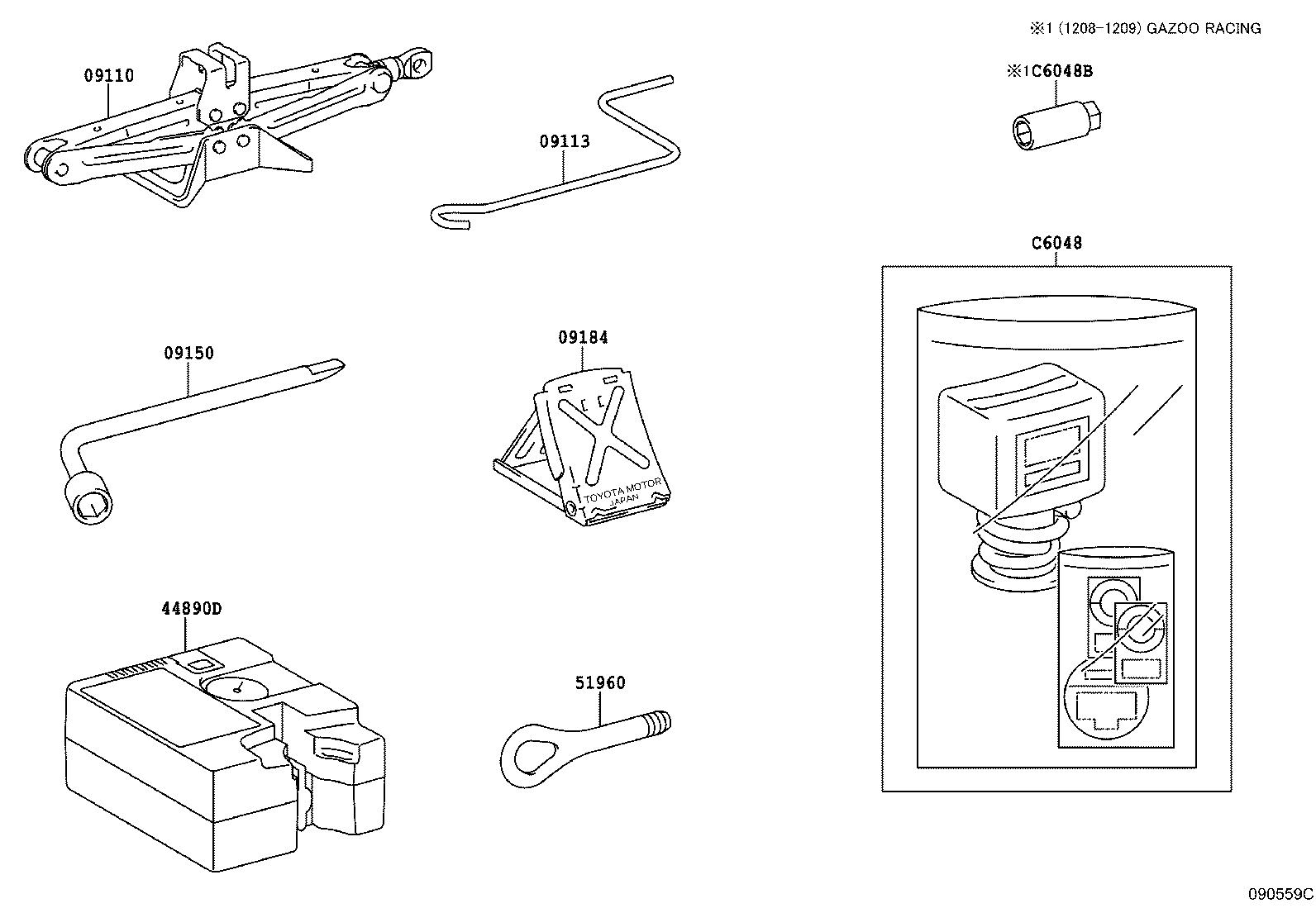

Figure 090511D 090511D 2008-11 → 2010-05 Figure 090559C 090559C 2010-05 → —

Part groups

PNCDescription
09110 Jack Assy
09113 Handle, Jack
09150 Wrench, Hub Nut Box
09184 Stopper, Wheel
42606B Repair Kit, Tubeless Tire
42683 Seal, Tire Repair
44890D Compressor Assy, Air
51960 Hook Assy, Front
C6048 Repair Set, Tire
C6048A Sealant, Repair Tire
C6048B Socket, Hub Nut(FOR ALUMINUM WHEEL)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
