Toyota IQ

2008-11 → 2016-03 · chassis KGJ10,NGJ10 · catalogue 102110 · Japan

Supported model Data version 2016-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

10 part groups · 3 illustrations

Illustrations

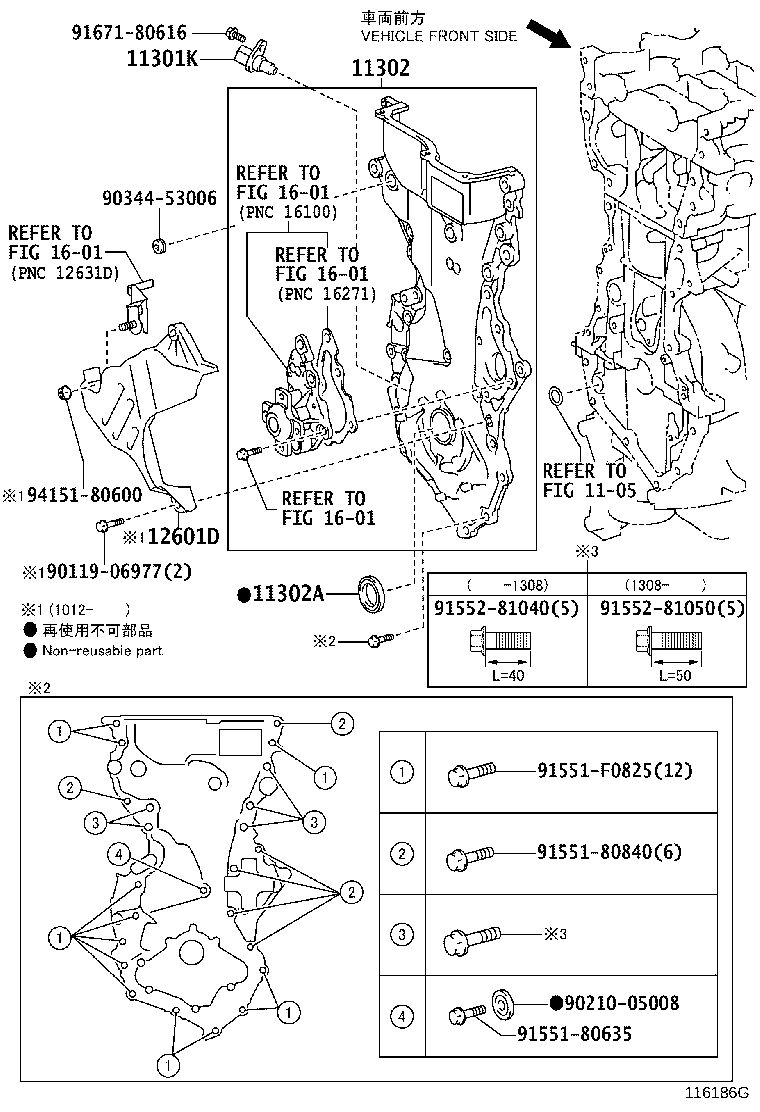

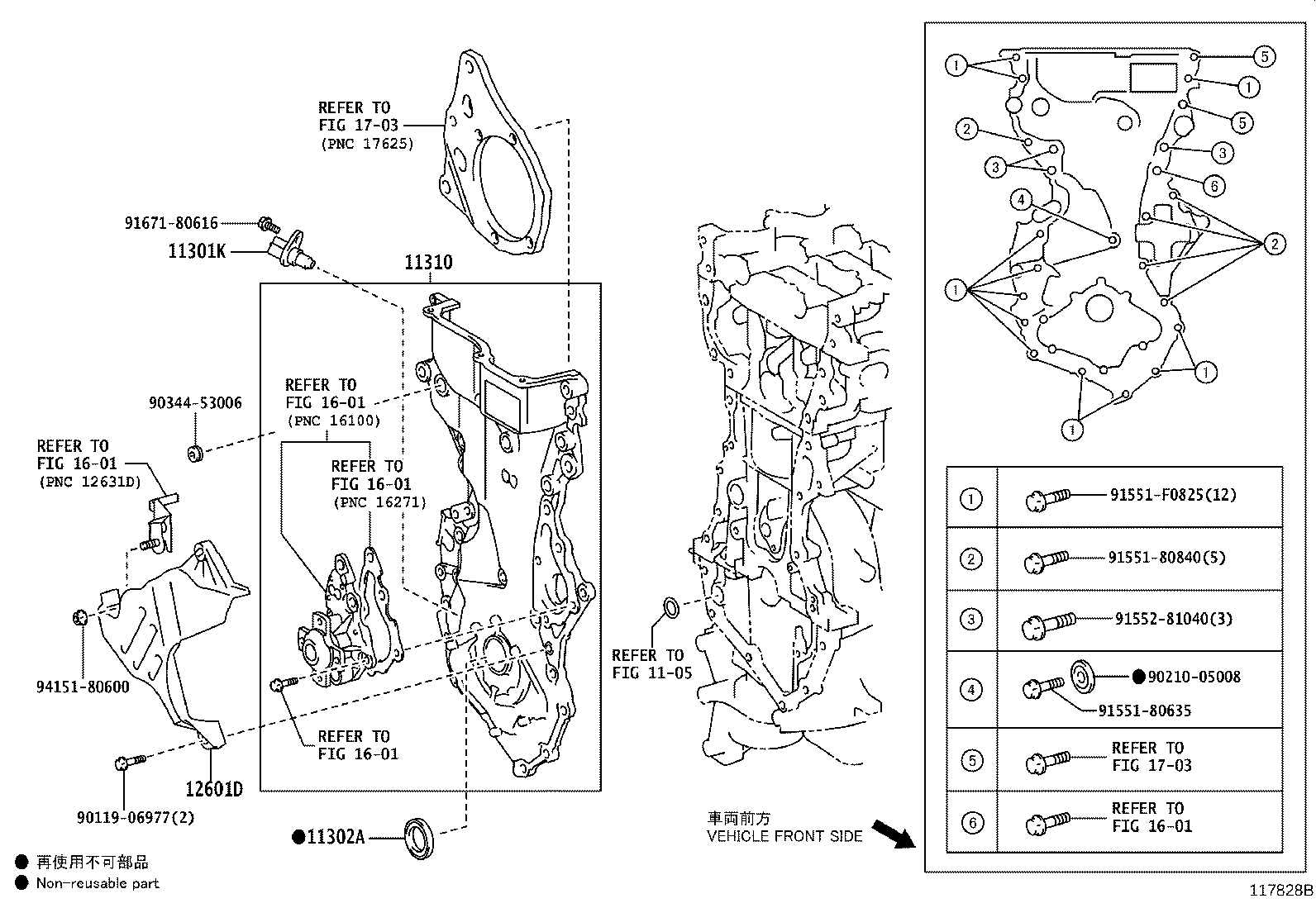

Figure 115708E 115708E 2008-11 → — Figure 116186G 116186G 2009-08 → — Figure 117828B 117828B 2012-08 → 2012-09

Part groups

PNCDescription
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302R Plug, Tight, NO.1(FOR TIMING GEAR COVER)
11310 Cover Assy, Timing Chain
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
12205B Case Sub-assy, Ventilation
12601D Cover, Engine, NO.1
15193A Gasket, Oil Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
