Toyota IQ
2008-11 → 2016-03 · chassis KGJ10,NGJ10 · catalogue 102110 · Japan
Supported model
Data version 2016-09

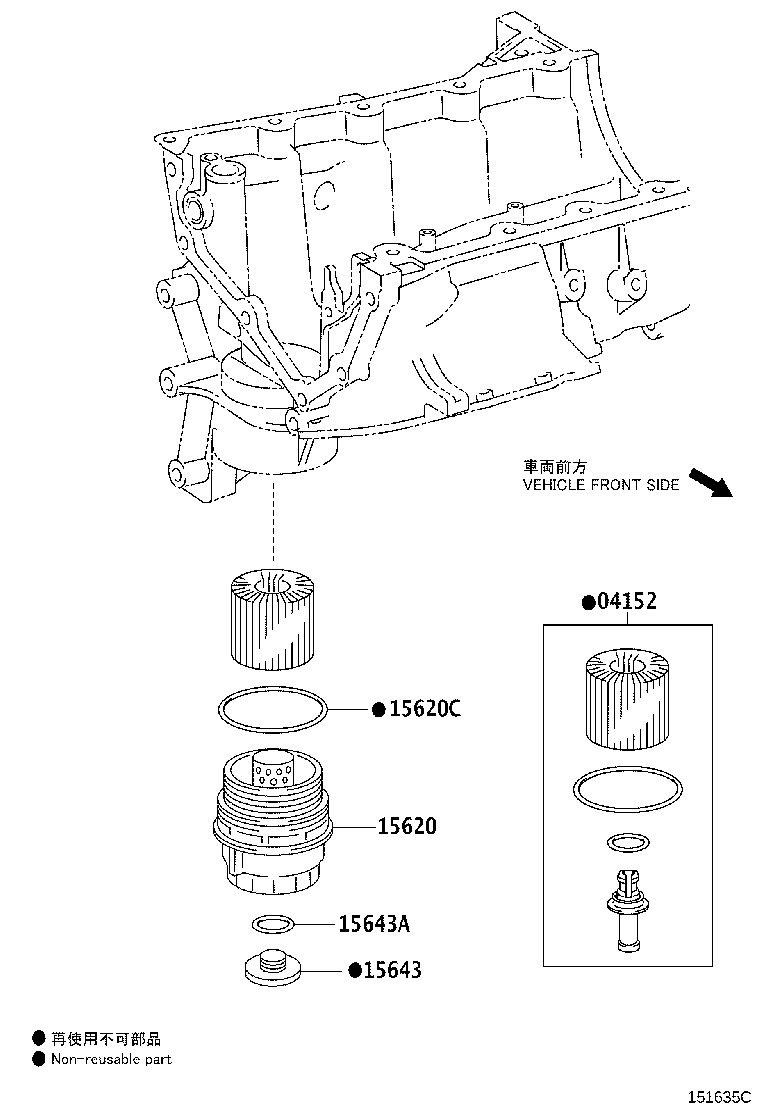

Oil Filter
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04152 | Element Kit, Oil Filter |
| 12611D | Cover, Engine, NO.1 |
| 15620 | Cap Assy, Oil Filter |
| 15620C | Gasket(FOR OIL FILTER CAP) |
| 15643 | Plug, Oil Filter Drain |
| 15643A | Ring, O(FOR OIL FILTER DRAIN PLUG) |
| 15671 | Bracket, Oil Filter |
| 15671B | Gasket, Oil Filter Bracket |
| 15691 | Gasket, Oil Filter |
| 28017 | Stay(FOR OIL FILTER BRACKET) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
