Toyota IQ

2008-11 → 2016-03 · chassis KGJ10,NGJ10 · catalogue 102110 · Japan

Supported model Data version 2016-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

7 part groups · 2 illustrations

Illustrations

Figure 163675C

163675C 2008-11 → —

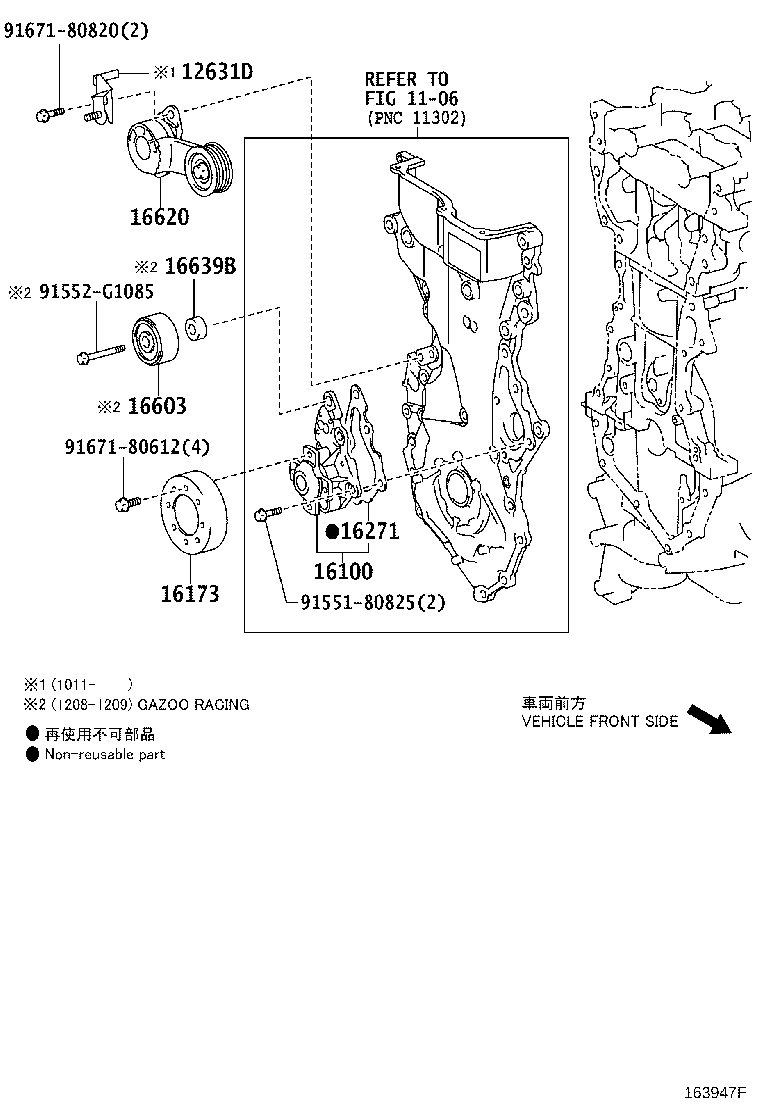

Figure 163947F

163947F 2009-08 → —

Part groups

PNC	Description
12631D	Bracket, Engine Cover
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16271	Gasket, Water Pump
16603	Pulley Sub-assy, Idler, NO.1
16620	Tensioner Assy, V-ribbed Belt
16639B	Spacer, Idler Pulley

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
