Toyota IQ

2008-11 → 2016-03 · chassis KGJ10,NGJ10 · catalogue 102110 · Japan

Supported model Data version 2016-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

19 part groups · 3 illustrations

Illustrations

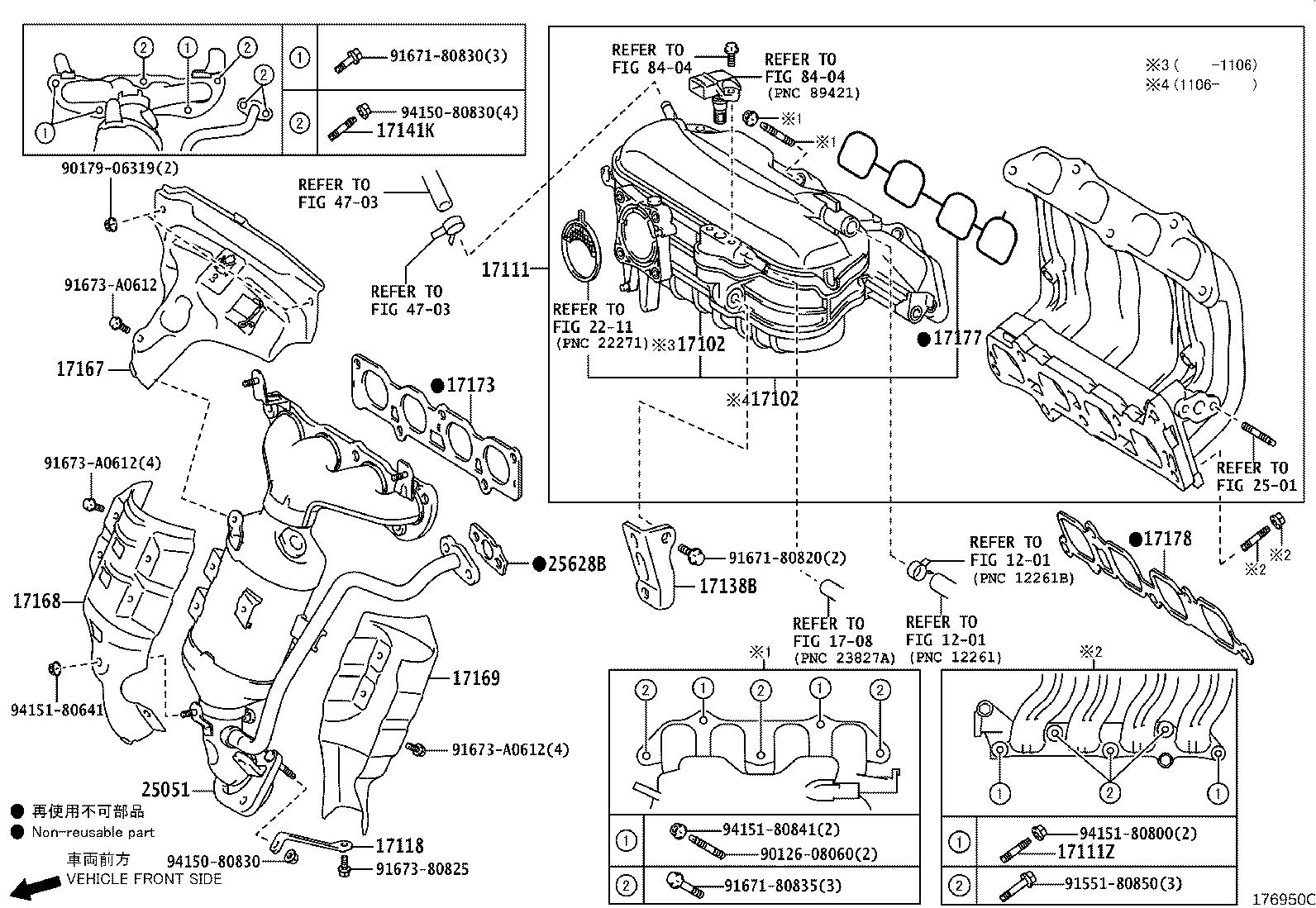

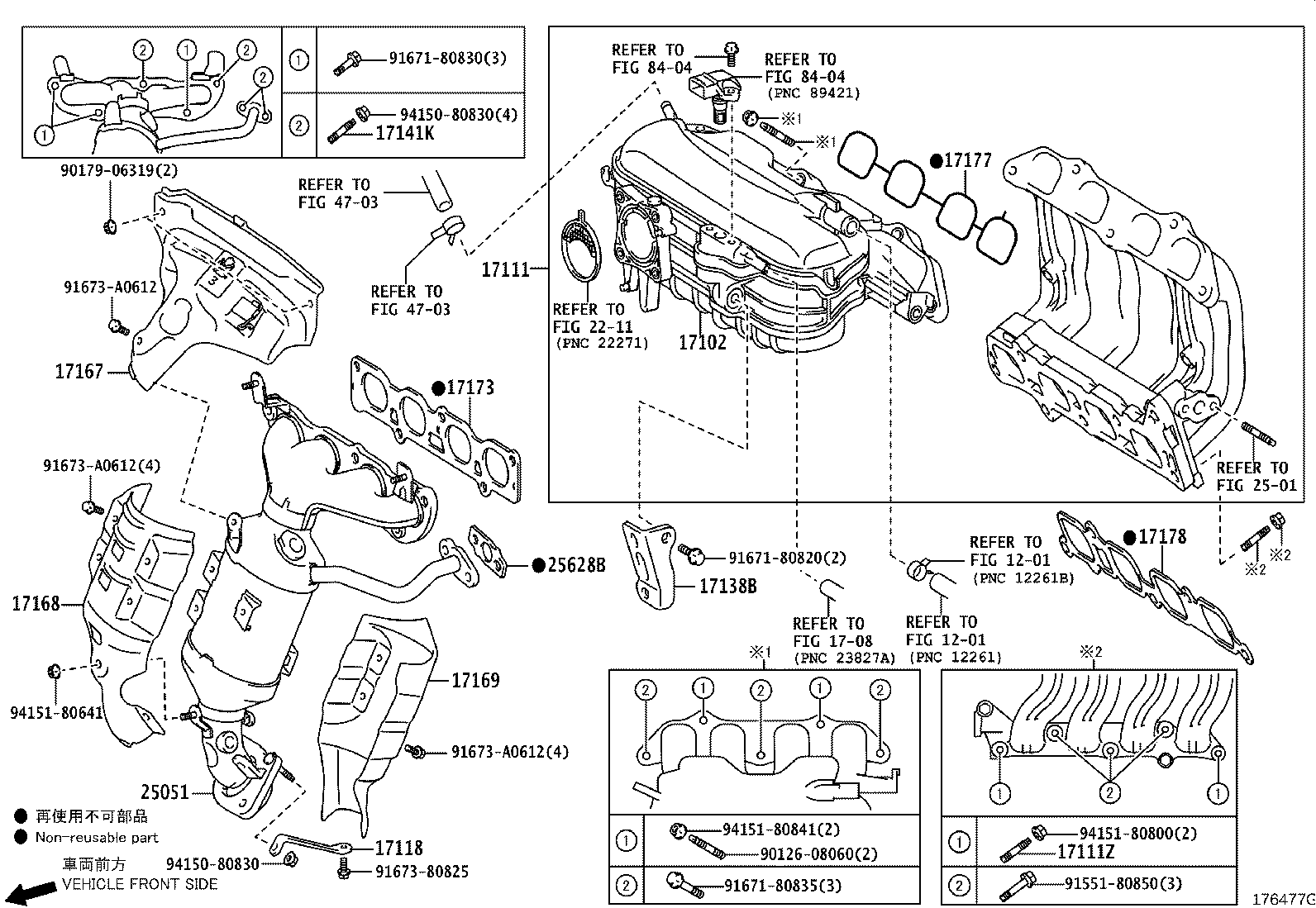

Figure 176356E 176356E 2008-11 → — Figure 176477G 176477G 2009-08 → 2010-11 Figure 176950C 176950C 2010-11 → —

Part groups

PNCDescription
17102 Manifold Sub-assy, Intake, Upper
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118 Stay, Manifold
17135A Insulator, Intake Manifold, NO.1
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17169 Insulator, Exhaust Manifold Heat, NO.3
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
22271A Gasket, Throttle Body
25051 Converter Sub-assy, Exhaust Manifold
25586 Insulator, Manifold Converter, NO.1
25628B Gasket, Egr Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
