Toyota IQ

2008-11 → 2016-03 · chassis KGJ10,NGJ10 · catalogue 102110 · Japan

Supported model Data version 2016-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

9 part groups · 3 illustrations

Illustrations

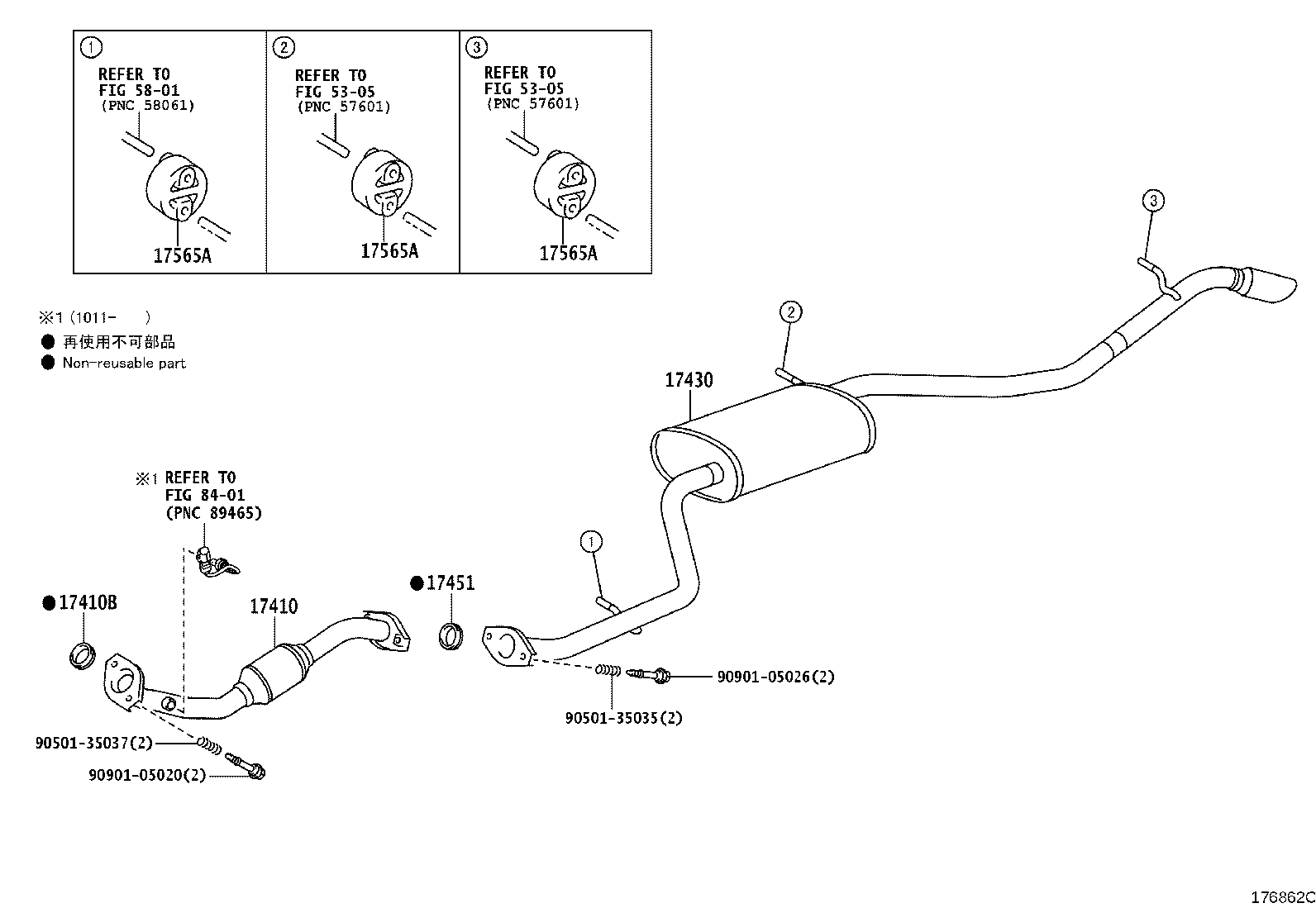

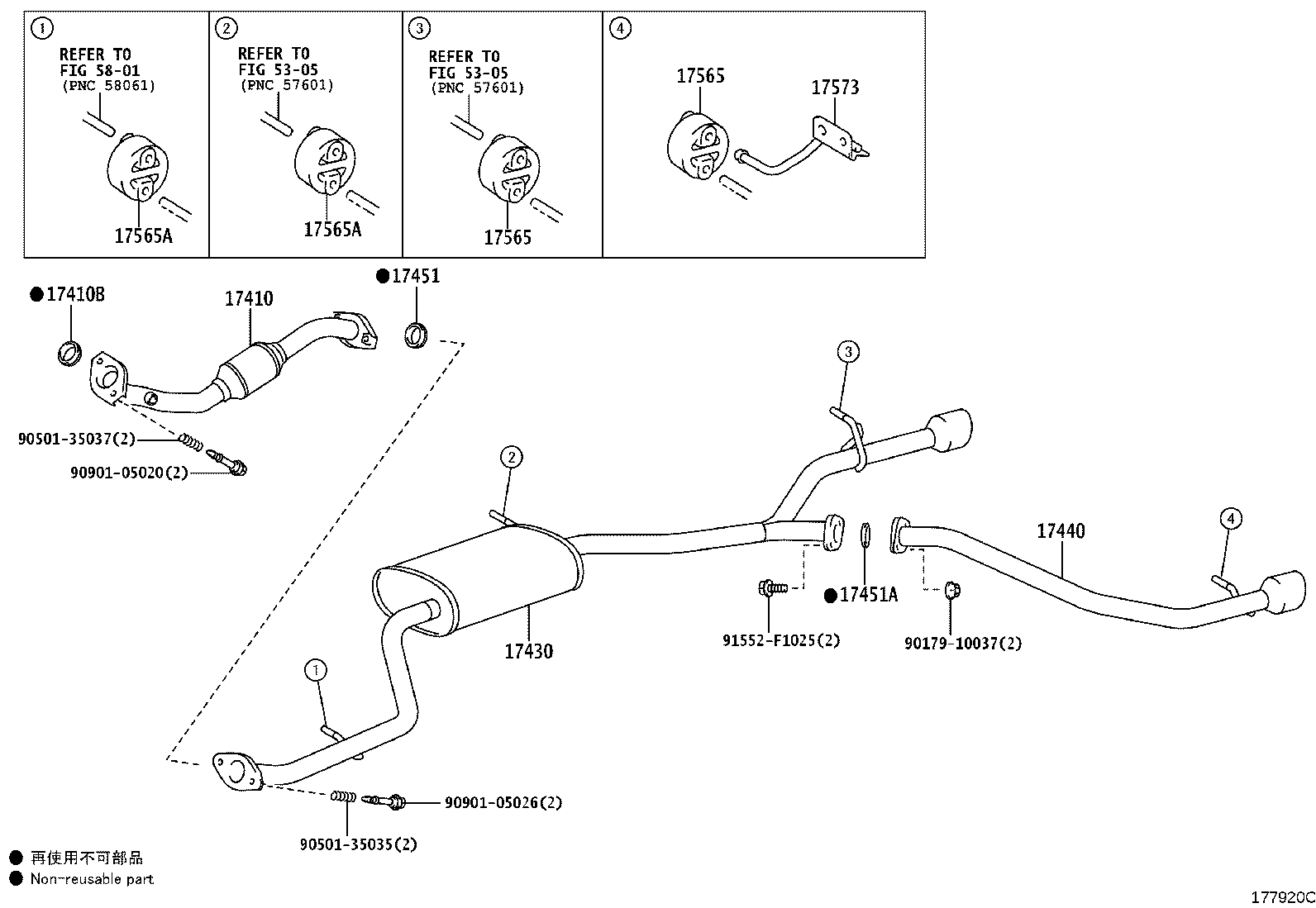

Figure 176156C 176156C 2008-11 → — Figure 176862C 176862C 2009-08 → — Figure 177920C 177920C 2012-08 → 2012-09

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17440 Pipe, Exhaust Tail, LH
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
