Toyota IQ
2008-11 → 2016-03 · chassis KGJ10,NGJ10 · catalogue 102110 · Japan
Supported model
Data version 2016-09

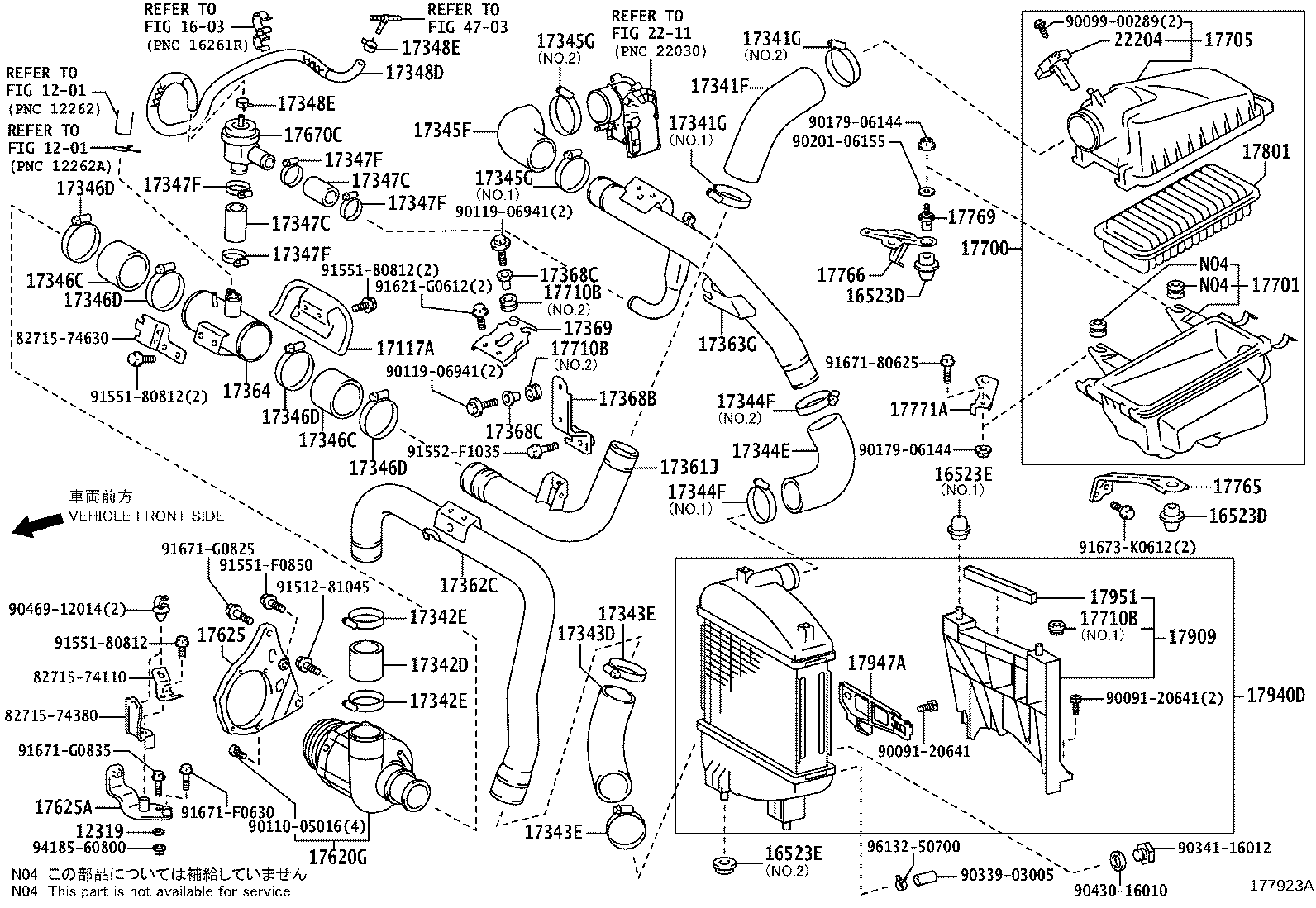

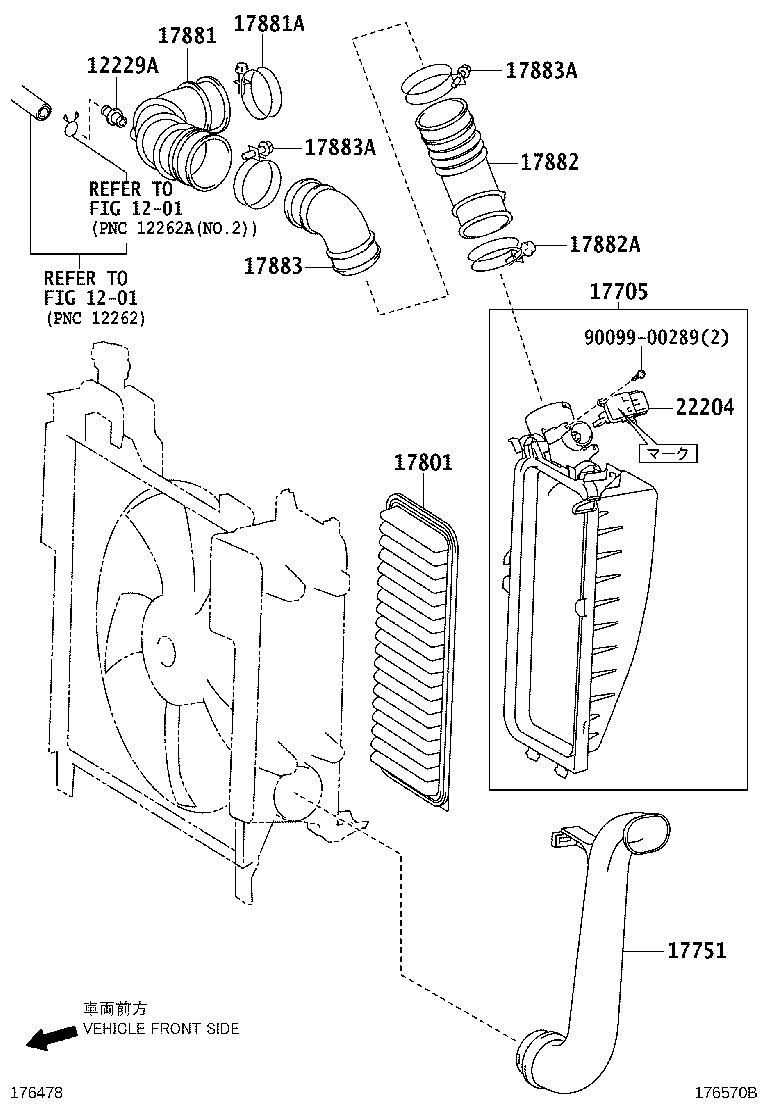

Air Cleaner
53 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 12229A | Pipe, Ventilation |
| 12319 | Spacer, Engine Front Support |
| 16523D | Cushion, Air Cleaner Support |
| 16523E | Cushion, Intercooler Support |
| 17117A | Insulator, Intake Pipe |
| 17341F | Hose, Air, NO.1 |
| 17341G | Clamp OR Clip(FOR AIR HOSE, NO.1) |
| 17342D | Hose, Air, NO.2 |
| 17342E | Clamp OR Clip(FOR AIR HOSE, NO.2) |
| 17343D | Hose, Air, NO.3 |
| 17343E | Clamp, Hose(FOR AIR HOSE, NO.3) |
| 17344E | Hose, Air, NO.4 |
| 17344F | Clamp, Hose(FOR AIR HOSE, NO.4) |
| 17345F | Hose, Air, NO.5 |
| 17345G | Clamp OR Clip(FOR AIR HOSE, NO.5) |
| 17346C | Hose, NO.6 |
| 17346D | Clamp OR Clip(FOR AIR HOSE NO.6) |
| 17347C | Hose, Air, NO.7 |
| 17347F | Clamp OR Clip(FOR AIR HOSE) |
| 17348D | Hose, Air, NO.8 |
| 17348E | Clamp OR Clip(FOR AIR HOSE, NO.8) |
| 17361J | Tube, Air, NO.1 |
| 17362C | Tube, Air, NO.2 |
| 17363G | Tube, Air, NO.3 |
| 17364 | Tube, Air, NO.4 |
| 17368B | Support, Air Tube |
| 17368C | Bush(FOR AIR TUBE SUPPORT) |
| 17369 | Bracket, Air Tube Support |
| 17620G | Supercharger Assy |
| 17625 | Bracket, Supercharger, NO.1 |
| 17625A | Bracket, Supercharger, NO.2 |
| 17670C | Valve Assy, Air By-pass |
| 17700 | Cleaner Assy, Air |
| 17701 | Case Sub-assy, Air Cleaner |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17710B | Grommet |
| 17751 | Inlet, Air Cleaner, NO.1 |
| 17765 | Stay, Air Cleaner, NO.1 |
| 17766 | Stay, Air Cleaner, NO.2 |
| 17769 | Support, Air Cleaner |
| 17771A | Bracket, Air Cleaner |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17883 | Hose, Air Cleaner, NO.3 |
| 17883A | Clamp(FOR AIR CLEANER HOSE, NO.3) |
| 17909 | Duct Sub-assy, Intercooler Cooling Air |
| 17940D | Intercooler Assy |
| 17947A | Plate, Intercooler |
| 17951 | Insulator, Intercooler |
| 22204 | Meter Sub-assy, Intake Air Flow |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
