Toyota IQ

2008-11 → 2016-03 · chassis KGJ10,NGJ10 · catalogue 102110 · Japan

Supported model Data version 2016-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

5 part groups · 2 illustrations

Illustrations

Figure 250344B

250344B 2008-11 → —

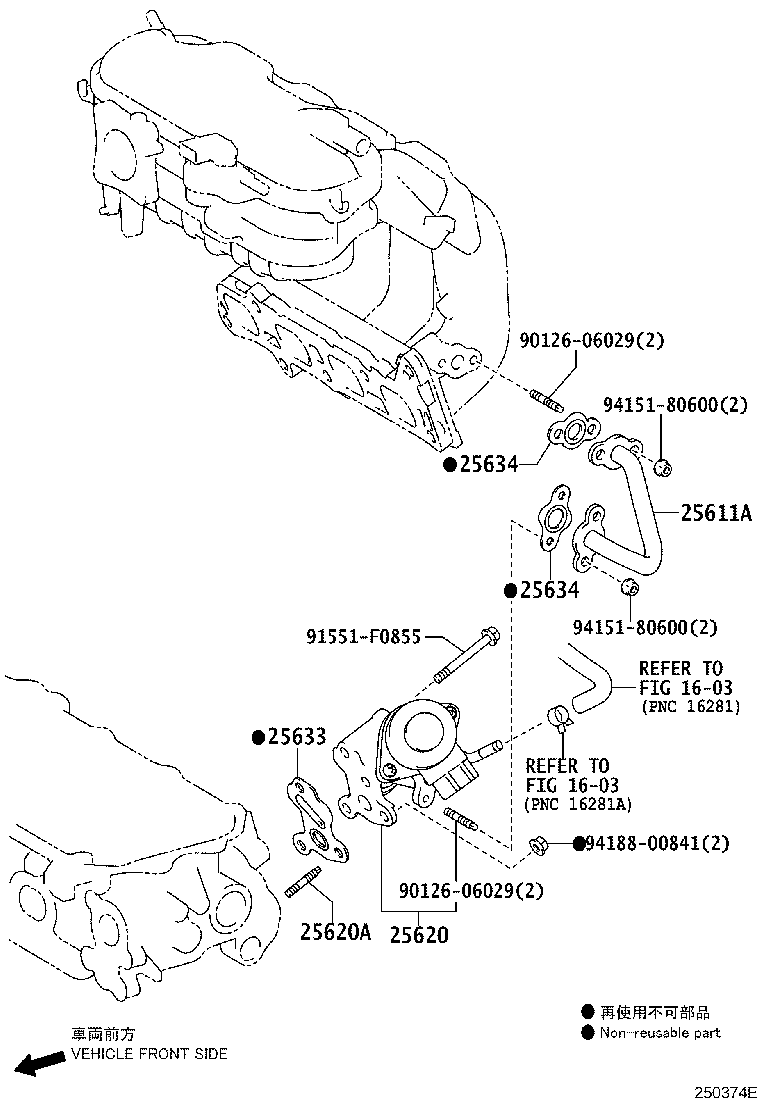

Figure 250374E

250374E 2009-08 → —

Part groups

PNC	Description
25611A	Pipe, Egr, NO.1
25620	Valve Assy, Egr
25620A	Bolt, Stud(FOR EGR VALVE)
25633	Gasket, Egr Valve
25634	Gasket, Egr Pipe

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
